Image shown may not be actual product

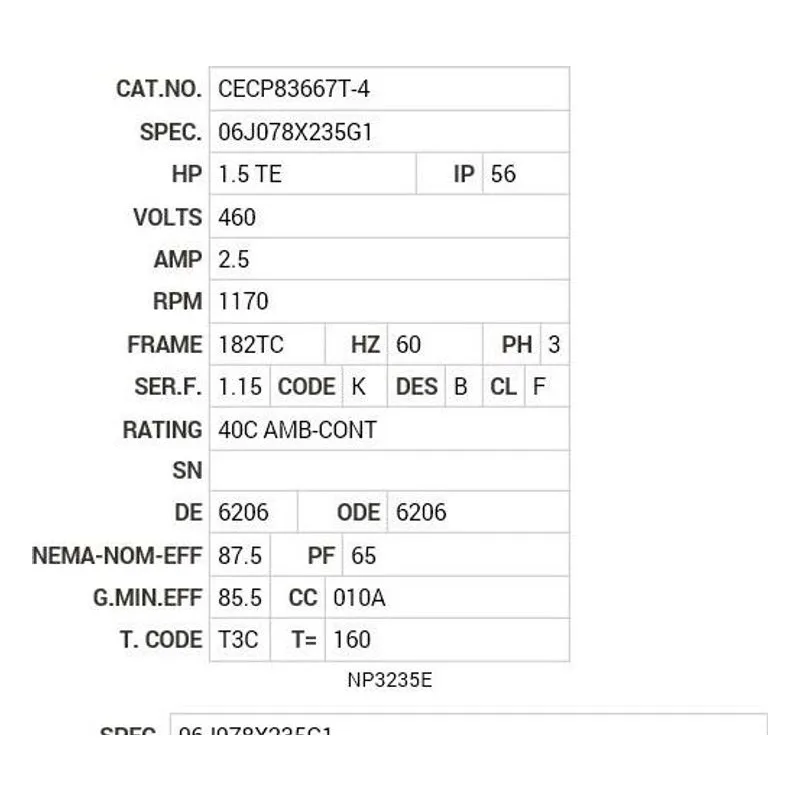

CECP83667T-4 Baldor 1.5 HP, 1170 RPM, 3 PH, 60 HZ, 182TC, 0630M, TEFC, AC Motor, Severe Duty, IEEE 841 Motors, Specification Number 06J078X235G1, UPC 781568723401
CECP83667T-4 Baldor 1.5 HP, 1170 RPM, 3 PH, 60 HZ, 182TC, 0630M, TEFC, AC Motor, Severe Duty, IEEE 841 Motors, Specification Number 06J078X235G1, UPC 781568723401
Frame Material | Iron |
HP | 1.5 |
Hz | 60.0 |
Insulation Class | F |
Manufacturer | Baldor-Reliance |
Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
Motor Frame Size | 182TC |
Motor Type | 3528M |
Phase | 3 |
Pole | 6 |
Quick Specs | 1.5HP,1170RPM,3PH,60HZ,182TC,0630M,TEFC |
Service Factor | 1.15 |
SPEC | 06J078X235G1 |
Speed (RPM) | 1200 |
UPC | 781568723401 |
Voltage | 460V |
Type | Title | Link | |
---|---|---|---|
CECP83667T-4 Datasheet | View |
