Image shown may not be actual product

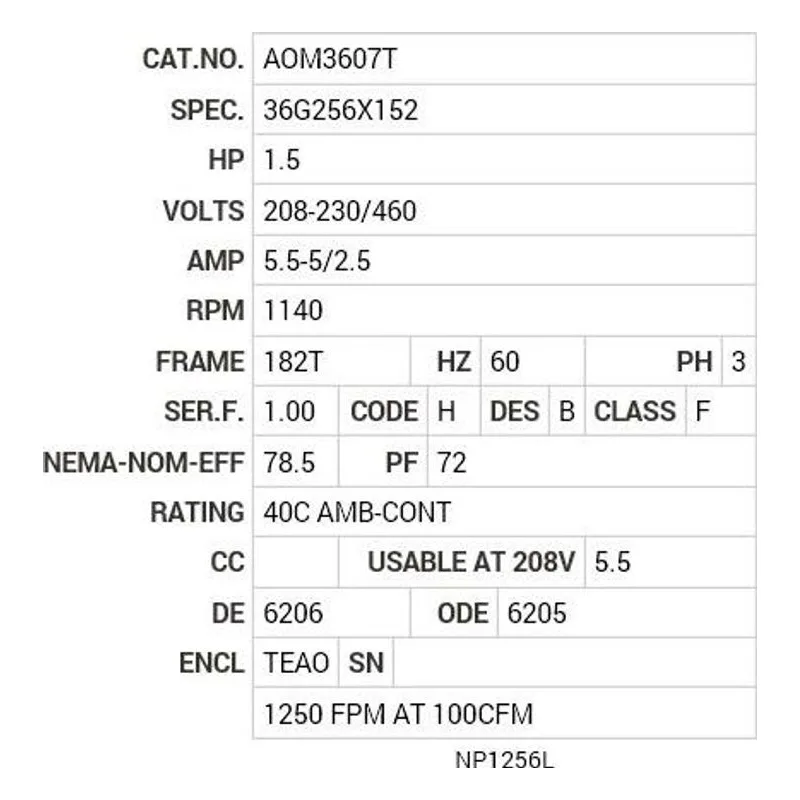

AOM3607T Baldor 1.5 HP, 1140 RPM, 3 PH, 60 HZ, 182T, 3617M, TEAO, AC Motor, HVAC, Yoke/Pedestal Fan Motors, SPEC 36G256X152, UPC 781568121726
AOM3607T Baldor 1.5 HP, 1140 RPM, 3 PH, 60 HZ, 182T, 3617M, TEAO, AC Motor, HVAC, Yoke/Pedestal Fan Motors, SPEC 36G256X152, UPC 781568121726
Frame Material | Steel |
HP | 1.5 |
Hz | 60.0 |
Insulation Class | F |
Manufacturer | Baldor-Reliance |
Motor Enclosure Type | TEAO - Totally Enclosed Air Over |
Motor Frame Size | 182T |
Motor Type | 3617M |
Phase | 3 |
Pole | 6 |
Quick Specs | 1.5HP,1140RPM,3PH,60HZ,182T,3617M,TEAO |
Service Factor | 1.00 |
SPEC | 36G256X152 |
Speed (RPM) | 1200 |
UPC | 781568121726 |
Voltage | 460V / 230V / 208V |
Type | Title | Link | |
---|---|---|---|
AOM3607T Datasheet | View |
