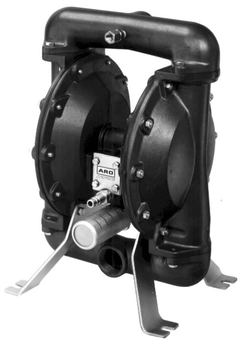

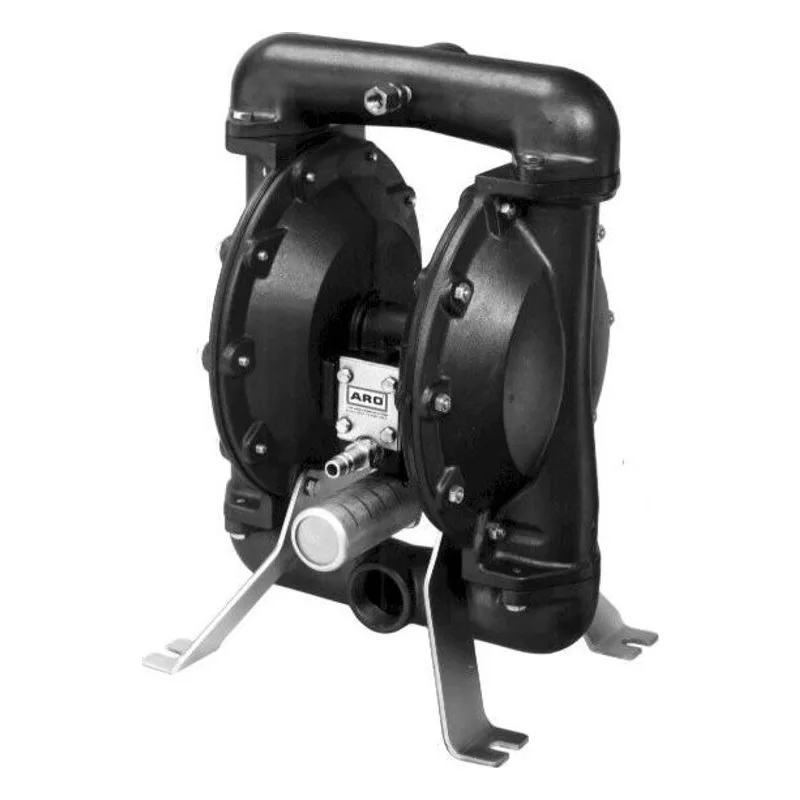

ARO 650718-C 1-1/2" UL Listed Fuel Transfer Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Steel Hardware. 75 GPM (284 LPM) Maximum Flow Rate, Kynar PVDF Seats, Acetal Balls, Viton Diaphragm, 1-1/2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.
ARO 650718-C 1-1/2" UL Listed Fuel Transfer Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Steel Hardware. 75 GPM (284 LPM) Maximum Flow Rate, Kynar PVDF Seats, Acetal Balls, Viton Diaphragm, 1-1/2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.
Air Inlet | 1/2 - 14 NPTF - 1 |
CCN Number | 81428195 |
Connection Size | 1-1/2" |
Connection Type | 1-1/2 - 11-1/2 NPTF - 1 |
Diaphragm | Viton |
Discharge Volume Per Cycle | 0.64 Gal (2.42 lit) |
Inlet Pressure (PSI) | 50 psig (3.4 bar) |
Liquid End Configuration | Aluminum Fluid Caps & Manifold |
Material | Aluminum Center Body |
Maximum Flow (GPM) | 75 GPM (284 LPM) |
Maximum Working Pressure (PSIG) | 50 psig (3.4 bar) |
Metal Parts | Steel Hardware |
Model Series | UL Fuel Transfer |
Quick Specs | DIAP PUMP 1-1/2" UL APPV 650718-C |
Solids (Inches) | 1/4" (6.4mm) |
Temperature Range | 10° to 180° F (-12° to 82° C) |
Type | UL Listed Fuel Transfer Pump |
Valve Balls | Acetal |
Valve / Seat / O-Ring | Kynar PVDF |
Features & Benefits |
---|
Performance Specifications Port: 1/2”, 1”, 1-1/2” and 2” Ratio: 1:1 Maximum GPM (LPM): 670042: 12 (45.4) 650717-C: 29 (109.8) flooded inlet 650718-C: 75 (283.9) flooded inlet 650719-C: 75 (283.9) flooded inlet Air Inlet (Female): 670042: 1/4” 650717-C: 1/4” 650718-C: 1/2” 650719-C: 3/4” Fluid Inlet/Outlet (Female): 670042: 1/2” 650717-C: 1” 650718-C: 1-1/2” 650719-C: 2” Max. operating pressure psi (bar): 50 (3.4) Suspended solids max. dia. in. (mm): 670042: 3/32” (2.4) 650717-C: 1/8” (3.2) 650718-C: 1/4” (6.4) 650719-C: 1/4” (6.4) Weight: lbs (kg) 670042: 10.36 (4.70) 650717-C: 22 (9.9) 650718-C: 60.4 (27.4) |
General Description |
Designed specifically for high-volume transfer, bulk-unloading, or fueling applications. These pumps meet UL 79 specification code. They are compatible with unleaded fuel, diesel fuel, kerosene, aviation fuel and fuel oil. Note: To meet UL79 specifications, pumps utilize pressure relief valves to limit dispensing line pressure to under 50-psi. If line pressure between the pump and dispensing point exceeds 50 psi due to thermal expansion, line compression, backfeed, or gravity, the pressure relief valve opens and bleeds off excess pressure. The relief valve must be plumbed to return the bleed-off fuel to the storage container. |
Fueling Systems
4 productsGas & Petroleum
4 productsIndustrial
3174 productsType | Title | Link | |
---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
Expert Series Diaphragm Pumps Brochure | View | ||
670042 1/2" UL Listed Metallic Manual | View | ||
650719-C 2" UL Listed Metallic Manual | View | ||
650718 C 1 1/2" UL Listed Metallic Manual | View | ||
650717-C 1" UL Listed Metallic Manual | View | ||
650718-C Manual | View | ||
650718-C ARO Pump Repair Parts Exploded View, Fluid Section | View | ||
650718-C ARO Pump Repair Parts Exploded View, Air Section | View |
