Image shown may not be actual product

650717-C

0 reviews

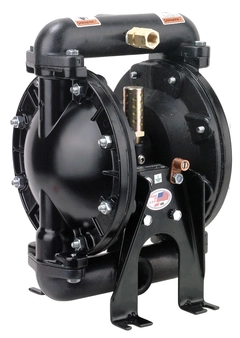

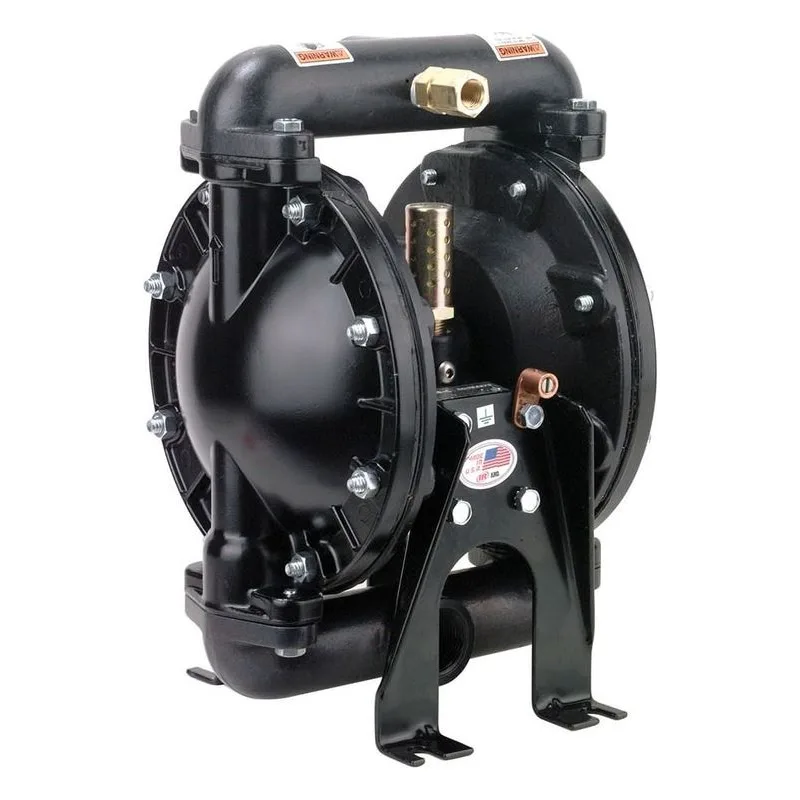

ARO 650717-C 1" UL Listed Fuel Transfer Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Steel Hardware. 29 GPM (110 LPM) Maximum Flow Rate, Kynar PVDF Seats, Acetal Balls, Viton Diaphragm, 1 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.

$1,556.10

Best Price Guarantee!
311PumpPoints

Item: 650717-C

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

650717-C

Air Inlet	1/4 - 18 NPTF - 1
CCN Number	81428187
Connection Size	1"
Connection Type	1 - 11-1/2 NPTF - 1
Diaphragm	Viton
Inlet Pressure (PSI)	50 psig (3.4 bar)
Liquid End Configuration	Aluminum Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	29 GPM (110 LPM)
Maximum Working Pressure (PSIG)	50 psig (3.4 bar)

Metal Parts	Steel Hardware
Model Series	UL Fuel Transfer
Quick Specs	DIAP 1" UL APPRVD FUEL
Solids (Inches)	1/8" (3.2mm)
Temperature Range	10° to 180° F (-12° to 82° C)
Type	UL Listed Fuel Transfer Pump
Valve Balls	Acetal
Valve / Seat / O-Ring	Kynar PVDF

UL Fuel Transfer Information

Features & Benefits
Performance Specifications Port: 1/2”, 1”, 1-1/2” and 2” Ratio: 1:1 Maximum GPM (LPM): 670042: 12 (45.4) 650717-C: 29 (109.8) flooded inlet 650718-C: 75 (283.9) flooded inlet 650719-C: 75 (283.9) flooded inlet Air Inlet (Female): 670042: 1/4” 650717-C: 1/4” 650718-C: 1/2” 650719-C: 3/4” Fluid Inlet/Outlet (Female): 670042: 1/2” 650717-C: 1” 650718-C: 1-1/2” 650719-C: 2” Max. operating pressure psi (bar): 50 (3.4) Suspended solids max. dia. in. (mm): 670042: 3/32” (2.4) 650717-C: 1/8” (3.2) 650718-C: 1/4” (6.4) 650719-C: 1/4” (6.4) Weight: lbs (kg) 670042: 10.36 (4.70) 650717-C: 22 (9.9) 650718-C: 60.4 (27.4)
General Description
Designed specifically for high-volume transfer, bulk-unloading, or fueling applications. These pumps meet UL 79 specification code. They are compatible with unleaded fuel, diesel fuel, kerosene, aviation fuel and fuel oil. Note: To meet UL79 specifications, pumps utilize pressure relief valves to limit dispensing line pressure to under 50-psi. If line pressure between the pump and dispensing point exceeds 50 psi due to thermal expansion, line compression, backfeed, or gravity, the pressure relief valve opens and bleeds off excess pressure. The relief valve must be plumbed to return the bleed-off fuel to the storage container.

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	Expert Series Diaphragm Pumps Brochure		View
	670042 1/2" UL Listed Metallic Manual		View
	650719-C 2" UL Listed Metallic Manual		View
	650718 C 1 1/2" UL Listed Metallic Manual		View
	650717-C 1" UL Listed Metallic Manual		View
	650717-C Manual		View
	650717-C ARO Pump Repair Parts Exploded View, Fluid Section		View
	650717-C ARO Pump Repair Parts Exploded View, Air Section		View
