PW20P-YKS-KAA

Home
ARO
PW Series
PW20P-YKS-KAA

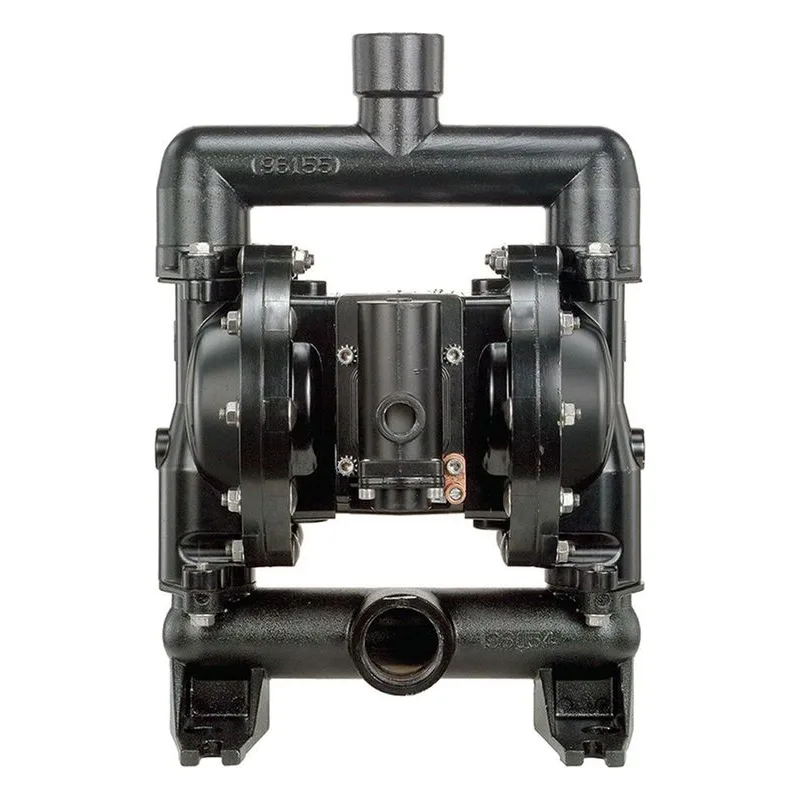

Image shown may not be actual product

PW20P-YKS-KAA

0 reviews

ARO PW20P-YKS-KAA PW Series 2" Non-Metallic AODD Diaphragm Pump. Polypropylene / Vinyl Ester Center Body, PVDF Fluid Caps & Manifold, Stainless Steel Hardware. PVDF Seats, Santoprene Balls, Santoprene Diaphragm, 2" ANSI/DIN Hybrid Center Flange Connection. An Ingersoll Rand Business.

$12,408.55

Best Price Guarantee!
2481PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PW20P-YKS-KAA

Overview
Series Info
Reviews
Literature/Manuals

PW20P-YKS-KAA

Air Inlet	3/4 - 14 NPT
Connection Size	2"
Connection Type	2" ANSI/DIN Hybrid Center Flange
Diaphragm	Santoprene
Discharge Volume Per Cycle	1.4 gal (5.3 lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	PVDF Fluid Caps & Manifold
Material	Polypropylene / Vinyl Ester Center Body
Maximum Flow (GPM)	184 GPM (696 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	19.5 Feet (5.9m)
Metal Parts	Stainless Steel Hardware
Quick Specs	2" AODP NON METALLIC ASSY
Solids (Inches)	1/4" (6.4mm)
Temperature Range	10° to 200° F (-12° to 93° C)
Type	Specialty Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	PVDF

PW Series Information

Features & Benefits
1” Metallic EXP Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 60 (227.1) Displacement per cycle Gallons (Liters): 0.234 (.89) Air Inlet (Female): 1/2 - 14 N.P.T. Fluid Inlet: 1-1/2 - 11-1/2 N.P.T.F - 1 Fluid Outlet: 1-1/4 - 11-1/2 N.P.T.F. - 1 Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/8” (3.2) Weight lbs (kg): PW10A-XXX-XXX 26.2 (11.9) Maximum dry suction lift ft (m): 19 (5.8) Sound Level: PSI Cycles / Min db(A)
General Description
ARO PW10X-X EXP Pumps • Upgrade to EXP from existing Wilden® P4,T4 or M4 pumps, or Versa-Matic® E4 pumps. • The ARO PW10X-X matches the fluid inlet/outlet port dimensions of these other pumps • Leave the stalling issues and leaking band-clamps behind.
