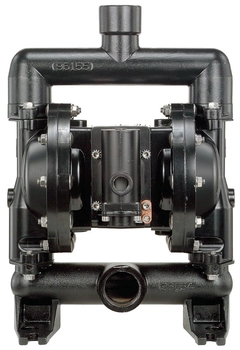

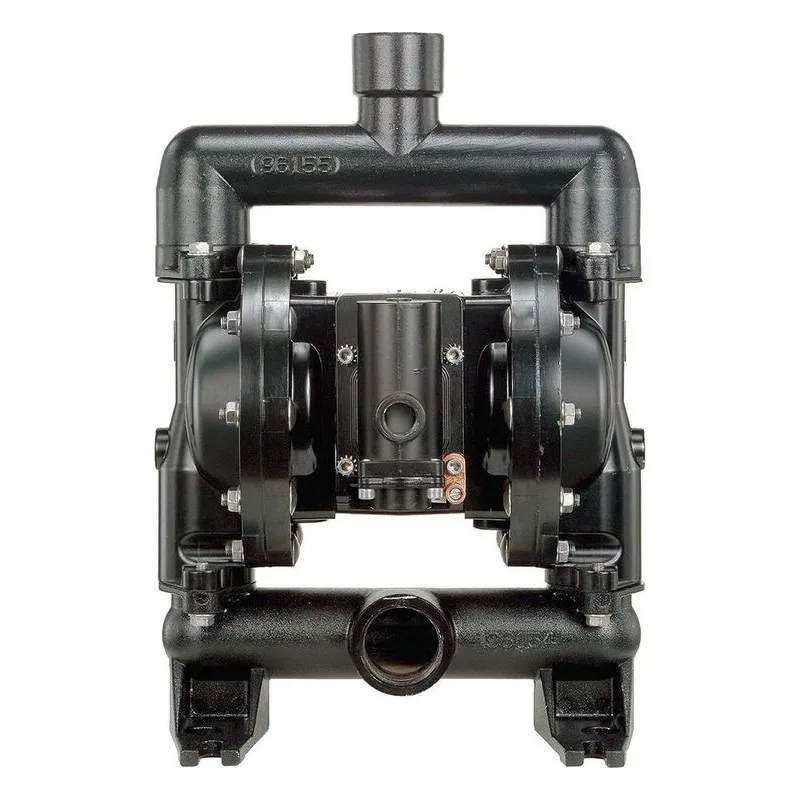

Image shown may not be actual product

PW10A-AAP-AAA

0 reviews

ARO PW10A-AAP-AAA PW Series 1" Non-Metallic AODD Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Plated Steel Hardware. 60 GPM (227.1 LPM) Maximum Flow Rate, Santoprene Seats, Balls & Diaphragm, Inlet: 1-1/2 - 11-1/2 NPTF - 1; Outlet: 1-1/4 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.

$1,560.87

Best Price Guarantee!
311PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PW10A-AAP-AAA

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PW10A-AAP-AAA

Air Inlet	1/2 - 14 NPT
CCN Number	15207319
Connection Size	1"
Connection Type	Inlet: 1-1/2 - 11-1/2 NPTF - 1; Outlet: 1-1/4 - 11-1/2 NPTF - 1
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.234 Gal (0.89 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Aluminum Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	60 GPM (227.1 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Metal Parts	Plated Steel Hardware
Model Series	PW Series
Product Notes	Fits Wilden P4, M4 and T4 pumps or Versa-Matic E4 pump configurations
Quick Specs	1 IN EXP METALLIC DIAPH PUMP
Solids (Inches)	1/8" (3.2mm)
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	Specialty Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Santoprene

PW Series Information

Features & Benefits
1” Metallic EXP Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 60 (227.1) Displacement per cycle Gallons (Liters): 0.234 (.89) Air Inlet (Female): 1/2 - 14 N.P.T. Fluid Inlet: 1-1/2 - 11-1/2 N.P.T.F - 1 Fluid Outlet: 1-1/4 - 11-1/2 N.P.T.F. - 1 Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/8” (3.2) Weight lbs (kg): PW10A-XXX-XXX 26.2 (11.9) Maximum dry suction lift ft (m): 19 (5.8) Sound Level: PSI Cycles / Min db(A)
General Description
ARO PW10X-X EXP Pumps • Upgrade to EXP from existing Wilden® P4,T4 or M4 pumps, or Versa-Matic® E4 pumps. • The ARO PW10X-X matches the fluid inlet/outlet port dimensions of these other pumps • Leave the stalling issues and leaking band-clamps behind.
