MDS12-AAADN-030

Home
ARO
Premair Series Compact Pneumatic Cylinders
MDS12-AAADN-030

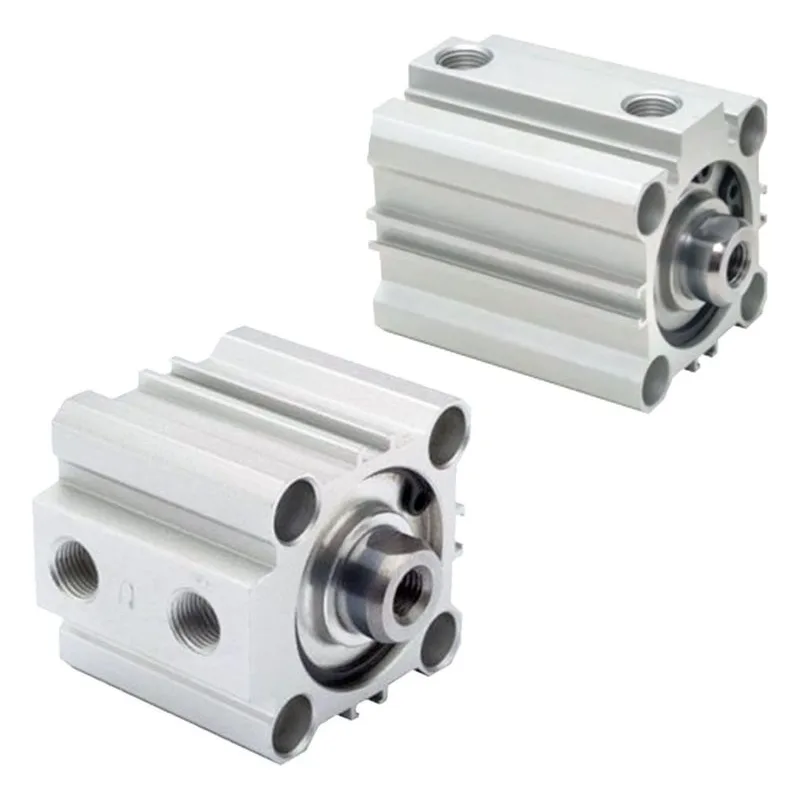

Image shown may not be actual product

MDS12-AAADN-030

0 reviews

ARO MDS12-AAADN-030 Premair Series Square Metric Compact Pneumatic Cylinder. Aluminum Double Acting Cylinder with 12mm (1/2") Bore & 30mm (1-11/64") Stroke Length. Chrome Plated Stainless Steel Piston Rods with a Buna-N Seal, 140 PSI Max Pressure & 15°F to 140°F Temperature Range. An Ingersoll Rand Product.

$69.90

Best Price Guarantee!
13PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: MDS12-AAADN-030

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

MDS12-AAADN-030

Bore Size	12mm (1/2")
Build	Single Acting Rod
Configuration	Standard Female Rod Thread
Connection Type	NPT Ports Inch Rod Threads
Elastomer	Buna
Magnet	Magnetic Piston
Material	Aluminum
Maximum Pressure (PSI)	140 PSI

Model Series	MDS12
Mounting Type	Threaded Through Hole
Part Type	Cylinder
Product Notes	30mm (1-11/64") Stroke Length
Temperature Range	15°F to 140°F (-10°C to 60°C)
Type	Double Acting

Premair Series Compact Pneumatic Cylinders Information

Features & Benefits
ARO Premair Series: Compact Strength, Proven Reliability Modern industrial designs demand components that do more with less. The ARO Premair Series delivers industry-leading thrust forces in a compact, low-profile package, making it the definitive solution for space-constrained pneumatic systems. Which Premair Series is Right for Your Project? Premair Square Metric (12mm – 100mm) The Precision Specialist. If your application requires side-by-side mounting or precision position sensing, the Square Metric series is your best fit. Mounting Ease: Threaded through-holes allow for direct mounting without extra brackets. Smart Sensing: Magnetic pistons come standard, allowing for easy integration of "Auto Switches" for automation feedback. Space Savings: Features a low-profile aluminum body that minimizes weight on moving machine parts. Premair Round Compact (1-1/8” – 4”) The Rugged Workhorse. Designed for high-pressure environments (up to 250 PSI), the Round series uses a heavy-duty tie-bolt construction to handle rigorous industrial cycles. Superior Bushings: Uses Duralon® non-metallic bushings which offer a lower coefficient of friction and significantly higher load-bearing capacity than standard bronze bearings. Impact Resistance: Thick aluminum alloy covers and heavy-walled barrels prevent damage from external impacts. Standard Inch Mounting: Designed to interchange seamlessly with existing industrial compact cylinders. Key Technical Benefits "Self-Lubricating Efficiency" Every Premair cylinder is factory-treated with Magnalube®-G or features self-lubricating internal surfaces. This means you can run these cylinders in non-lubricated air systems without worrying about premature seal failure. Piston Rod Quality: We use hard chrome-plated stainless steel as a standard, not an upgrade. This ensures your rods won't pit or rust, even in humid or wash-down environments. Customizable Ends: Choose between Female NPT Rod Threads (Standard) or Male thread options to fit your specific tooling requirements. Extended Seal Life: The precision-machined grooves and captive rod seals prevent "seal roll" and ensure airtight performance for millions of cycles.
Typical Services & Ideal Applications
Typical Applications Material Handling: Clamping, sorting, and diverting on conveyors. OEM Machinery: Compact assembly fixtures and gate actuation. Robotics: End-of-arm tooling and precise positioning. Packaging: Ejection pins, flap folders, and labeling stations. Comparison Matrix: Premair Square vs. Round Premair Square (Metric) The Premair Square is designed for precision and compact integration. Primary Advantage: Features built-in sensing capabilities and versatile side-mounting options. Performance: Operates at a maximum of 140 PSI. Temperature: Designed for standard factory temperature ranges. Build: Constructed with a high-quality chrome plated stainless steel rod. Mounting: Utilizes threaded thru-holes for secure installation. Premair Round (Inch) The Premair Round is the heavy-duty choice for more demanding industrial environments. Primary Advantage: Engineered specifically to handle high pressure and heavy-duty loads. Performance: Offers a higher maximum operating pressure of 250 PSI. Temperature: Highly adaptable with high-temperature options available for extreme conditions. Build: Features a durable chrome plated stainless steel rod. Mounting: Designed for tie-bolt or spacer mounting configurations.
