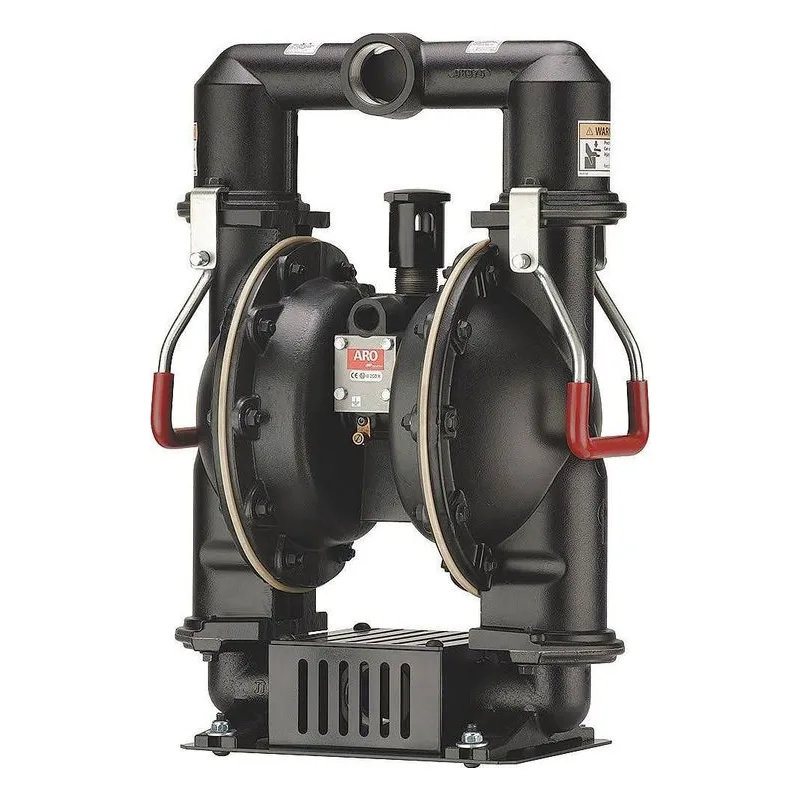

Image shown may not be actual product
ARO 66M320-1EB-C Pit Boss 3" Dewatering & Solids Handling Mining Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Carbon Steel Hardware. 217 GPM (821.3 LPM) Maximum Flow Rate, Aluminum Seats, Santoprene Balls & Diaphragm, Rp 3 (3 - 11 BSP parallel) Connection. An Ingersoll Rand Business.
ARO 66M320-1EB-C Pit Boss 3" Dewatering & Solids Handling Mining Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Carbon Steel Hardware. 217 GPM (821.3 LPM) Maximum Flow Rate, Aluminum Seats, Santoprene Balls & Diaphragm, Rp 3 (3 - 11 BSP parallel) Connection. An Ingersoll Rand Business.
Air Inlet | 3/4 - 14 NPTF - 2 |
CCN Number | 15320450 |
Connection Size | 3" |
Connection Type | Rp 3 (3 - 11 BSP parallel) |
Diaphragm | Santoprene |
Discharge Volume Per Cycle | 2.08 Gal (7.9 Lit) |
Inlet Pressure (PSI) | 120 psig (8.3 bar) |
Liquid End Configuration | Aluminum Fluid Caps & Manifold |
Material | Aluminum Center Body |
Maximum Flow (GPM) | 217 GPM (821.3 LPM) |
Maximum Working Pressure (PSIG) | 120 psi (8.3 bar) |
Metal Parts | Carbon Steel Hardware |
Model Series | Pit Boss 3" Dewatering Solids Handling |
Quick Specs | PUMP,DIAP,3IN,MINING |
Solids (Inches) | 1" (25.4mm) |
Temperature Range | -40° to 225° F (-40° to 107° C) |
Type | Mining Pump |
Valve Balls | Santoprene |
Valve / Seat / O-Ring | Aluminum |
Type | Title | Link | |
---|---|---|---|
Pit Boss Pneumatic Diaphragm Pump Brochure | View | ||
66M3X0 3 Dewatering Metallic Datasheet | View | ||
66M320-1EB-C Datasheet | View | ||
66M3X0 3" Dewatering Metallic Manual | View | ||
66M320-1EB-C Manual | View | ||
66M300-122-C ARO Pump Repair Parts Exploded View, Fluid Section | View | ||
66M300-122-C ARO Pump Repair Parts Exploded View, Air Section | View |
