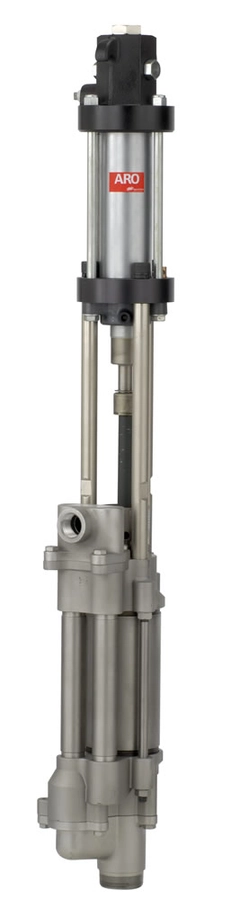

ARO 650950-P4B Hydraulic Driven Four Ball Piston Pumps. 2.062" Motor, 0.2:1 Ratio, 300 Series Stainless Steel, UHMW-PE / PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple wave spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 10 - 278 psi (0.69 - 19.2 bar) Pressure Range.
ARO 650950-P4B Hydraulic Driven Four Ball Piston Pumps. 2.062" Motor, 0.2:1 Ratio, 300 Series Stainless Steel, UHMW-PE / PTFE Staggered (Upper), UHMW-PE (Lower) Packing, Multiple wave spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 10 - 278 psi (0.69 - 19.2 bar) Pressure Range.
Air Inlet | 3/8 - 18 NPTF - 2 |
CCN Number | 99762502 |
Discharge NPT (Inches) | 1 - 11-1/2 NPTF - 1 |
Discharge Volume Per Cycle | 103.6 in³ |
Inlet Pressure (PSI) | 50 - 1200 psi (3.4 - 82.8 bar) |
Material | 300 Series Stainless Steel |
Model Series | Hydraulic Driven Four Ball Piston Pumps |
Motor | 2.062" |
Other Factors | 5.75" Stroke Length |
Packing Gland | UHMW-PE / PTFE Staggered (Upper), UHMW-PE (Lower) |
Pressure Range | 10 - 278 psi (0.69 - 19.2 bar) |
Product Notes | Hardened stainless steel with ceramic coating Plunger |
Pump Size | 0.2:1 |
Quick Specs | PUMPPISTON |
Spring | Multiple wave spring |
Suction NPT (Inches) | 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short |
Type | Four Ball |
