650949-74B

Image shown may not be actual product

650949-74B

0 reviews

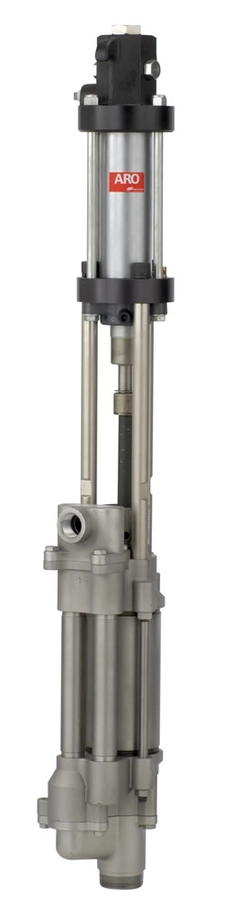

ARO 650949-74B Hydraulic Driven Four Ball Piston Pumps. 2.062" Motor, 0.3:1 Ratio, 300 Series Stainless Steel, Glass filled PTFE (Upper), Virgin PTFE (Lower) Packing, Multiple wave spring, Hardened stainless steel with ceramic coating Plunger. 1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 15 - 386 psi (1.0 - 26.6 bar) Pressure Range.

$10,582.81

Best Price Guarantee!
2116PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 650949-74B

Overview
Reviews
Literature/Manuals

650949-74B

Air Inlet	3/8 - 18 NPTF - 2
CCN Number	99762411
Discharge NPT (Inches)	1 - 11-1/2 NPTF - 1
Discharge Volume Per Cycle	78.6 in³
Inlet Pressure (PSI)	50 - 1200 psi (3.4 - 82.8 bar)
Material	300 Series Stainless Steel
Model Series	Hydraulic Driven Four Ball Piston Pumps
Motor	2.062"
Other Factors	5.75" Stroke Length

Packing Gland	Glass filled PTFE (Upper), Virgin PTFE (Lower)
Pressure Range	15 - 386 psi (1.0 - 26.6 bar)
Product Notes	Hardened stainless steel with ceramic coating Plunger
Pump Size	0.3:1
Quick Specs	PUMPPISTON
Spring	Multiple wave spring
Suction NPT (Inches)	1-1/2 - 11-1/2 NPTF - 1 (Female) & 2 - 11-1/2 PTF SAE Short
Type	Four Ball
