EVO Series 1" Polypropylene Diaphragm Pump
EB10-PFPTA-CSV-00A

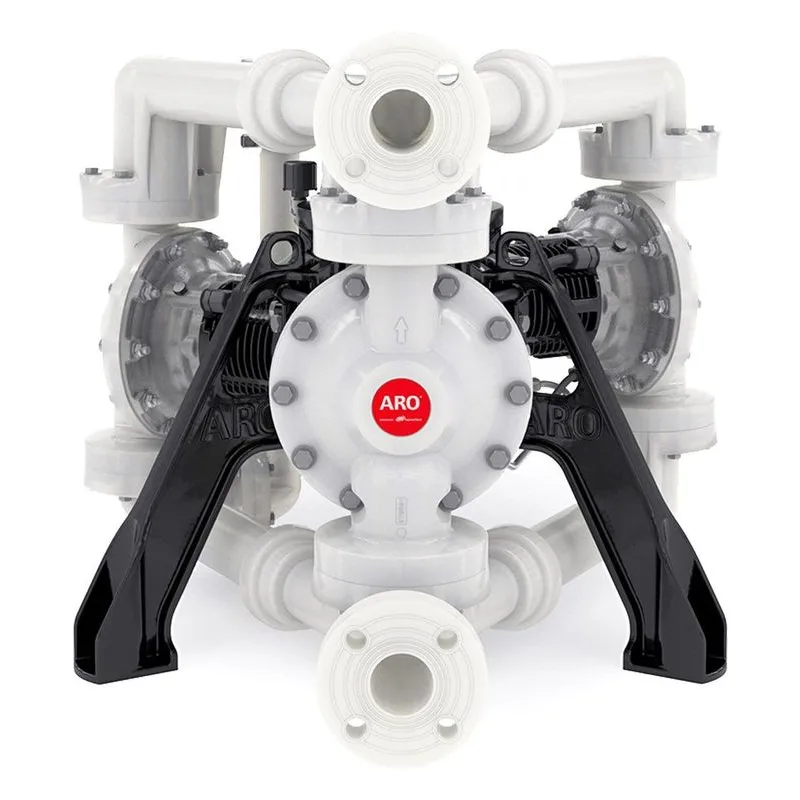

Image shown may not be actual product

EB10-PFPTA-CSV-00A

0 reviews

ARO EB10-PFPTA-CSV-00A EVO Series Mechnically Driven Diaphragm Pump End Only. Polypropylene Wetted Parts, Santoprene Diaphragms with a 1" ANSI Hybrid Flange with integrated PRV Connection. Constructed with a Cast Iron Crank Shaft and Viton Bellows. 54 GPM Maximum Flow Rate, 120 PSIG Working Pressure and 1/8" Solids Handling. Can Handle Liquid Temperatures up to 212° F. An Ingersoll Rand Product.

$10,180.58

Best Price Guarantee!
2035PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: EB10-PFPTA-CSV-00A

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

EB10-PFPTA-CSV-00A

Ball Material	PTFE
Build	Mechanically Driven Diaphragm Pump
Connections / Discharge (Inches)	1" ANSI Hybrid Flange with integrated PRV
Connection Size	1"
Connection Type	ANSI Hybrid Flange with integrated PRV
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.25 Gal.
Inlet Pressure (PSI)	60 PSIG
Liquid Temperature	212° F
Maximum Flow (GPM)	54 GPM

Maximum Working Pressure (PSIG)	120 PSIG
Max Suction Lift	28 ft Wet, 14 ft Dry
Motor	No Motor
Quick Specs	EVO BARE PUMP 1" PP - PP/PTFE/SP
Solids (Inches)	1/8"
Valve / Seat / O-Ring	Polypropylene Seat
Wet End Code	P
Wetted Parts	Polypropylene

EVO Series 1" Polypropylene Diaphragm Pump Information

Features & Benefits
EVO 1" Polypropylene diaphragm pumps are built for chemical service environments that want the benefits of non-metallic construction while still demanding strong performance and everyday reliability. This category supports efficient operation and process consistency, making it a smart fit for plants that want a modern pump solution for aggressive fluids without complicating the install. It’s a strong choice for teams standardizing chemical transfer across multiple points of use. It shines where chemical compatibility is the priority and operators still want the practical benefits of a diaphragm pump, including solid priming capability and dependable transfer performance. With a platform that’s easy to spec for common chemical services, it supports repeatable outcomes and cleaner day-to-day operation across recurring tasks.
Performance Specifications
These specs make the 1" polypropylene category especially compelling for chemical transfer, combining high flow for productivity with strong pressure for stable delivery. Excellent suction lift supports tote/drum feeds and less-than-perfect inlet conditions, giving facilities more flexibility in real-world setups. The result is a capable chemical-transfer platform that performs consistently across varied duties. Max flow (flooded inlet): up to 54 GPM (204 L/min) Max average working pressure: up to 120 PSIG (8.3 bar) Max deadhead pressure: up to 180 PSIG (12.4 bar) Suction lift: up to 28 ft wet (8.5 m) / 14 ft dry (4.3 m) Solids handling: up to 1/8" (3.3 mm)
Typical Services & Ideal Applications
The EVO 1" Polypropylene series is an excellent fit for corrosive chemical transfer, chemical batching, and process feed applications where chemical compatibility is essential and consistent delivery improves results. The non-metallic construction makes it a natural choice for fluids that can be harsh on metallic components, while strong suction lift supports reliable transfer from drums, totes, and day tanks. This is especially valuable where chemical rooms and point-of-use transfer setups vary from one location to the next. Typical services include CIP and cleaning chemical circulation support, tank farm supply, and recirculation loops where steady, repeatable delivery matters. It’s also well-suited for operations that want a go-to 1" chemical pump family that can be standardized across multiple plant areas, simplifying maintenance planning and keeping chemical-handling performance predictable.
