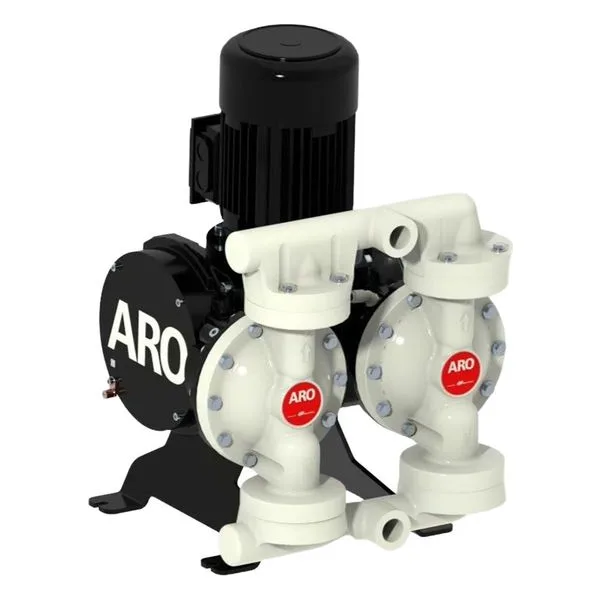

EVO 1" 210 Non-Metallic: Efficient Electric Pumping with Proven Diaphragm Pump Reliability
The ARO EVO Series™ 1" 210 Non-Metallic Electric Double Diaphragm Pump delivers a reliable and economical solution for general transfer and batching applications. Available in Polypropylene and PVDF, the EVO 210 combines the proven performance of ARO diaphragm pump technology with the efficiency and controllability of an electric drive system. Designed for facilities looking to improve efficiency while maintaining dependable operation, the EVO 210 extends the trusted EVO platform into a compact and easy-to-maintain package.
Built on proven technologies shared with the EVO 300 and EXP platforms, the pump utilizes a simplified drive mechanism with fewer components to help improve reliability and reduce maintenance requirements. Internally sealed bearings further support long-term performance by eliminating routine bearing maintenance. The compact design also allows installation in tight operating spaces, making the EVO 210 a practical solution where footprint and accessibility are important.
A key advantage of the EVO 210 is its focus on protection and uptime. Secondary leak containment comes standard, helping prevent pumped fluid from reaching the actuator and drive components in the event of diaphragm leakage. Optional electronic leak detection capability is available for users who require additional process monitoring, while optional overpressure protection provides another layer of operational security.
Features & Benefits
- Available in Polypropylene and PVDF constructions.
- Proven EVO 300 and EXP platform technologies.
- Higher efficiency than standard air-operated diaphragm pumps.
- Standard secondary leak containment for added equipment protection.
- Optional electronic leak detection capability.
- Simplified drive mechanism with fewer parts for improved reliability.
- Internally sealed bearings eliminate required bearing maintenance.
- Both diaphragms accessible from the same side for easier service.
- Designed in accordance with ISO 12100 and CE compliant.
Performance Specifications
The EVO 210 Non-Metallic platform delivers dependable performance for transfer and batching duties while maintaining the inherent benefits of diaphragm pump technology. Available connection options include NPT, BSP, and ANSI/DIN flange configurations for installation flexibility.
- Maximum Flow Rate: 39 GPM (149 L/min)
- Maximum Average Working Pressure: 50–90 PSIG (3.4–6.2 bar)
- Displacement Per Cycle: 0.17 gallons (0.64 liters)
- Wet Suction Lift: 32.1 ft (9.5 m)
- Dry Suction Lift: 11.3 ft (3.4 m)
- Maximum Solids Size: 1/8" (3.3 mm)
- Weight: 176 lbs (Polypropylene) / 184 lbs (PVDF)
To support long-term ownership, the EVO 210 is also backed by the ARO Protect® Program, which offers preventative maintenance wear-part kits and extended warranty coverage on qualifying models. Together, its efficient electric operation, maintenance-friendly design, and proven diaphragm pump technology make the EVO Series™ 1" 210 Non-Metallic a dependable choice for transfer and batching applications.
