PD20E-FES-PAA

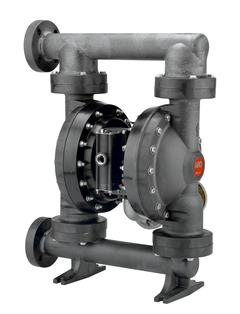

Image shown may not be actual product

PD20E-FES-PAA

0 reviews

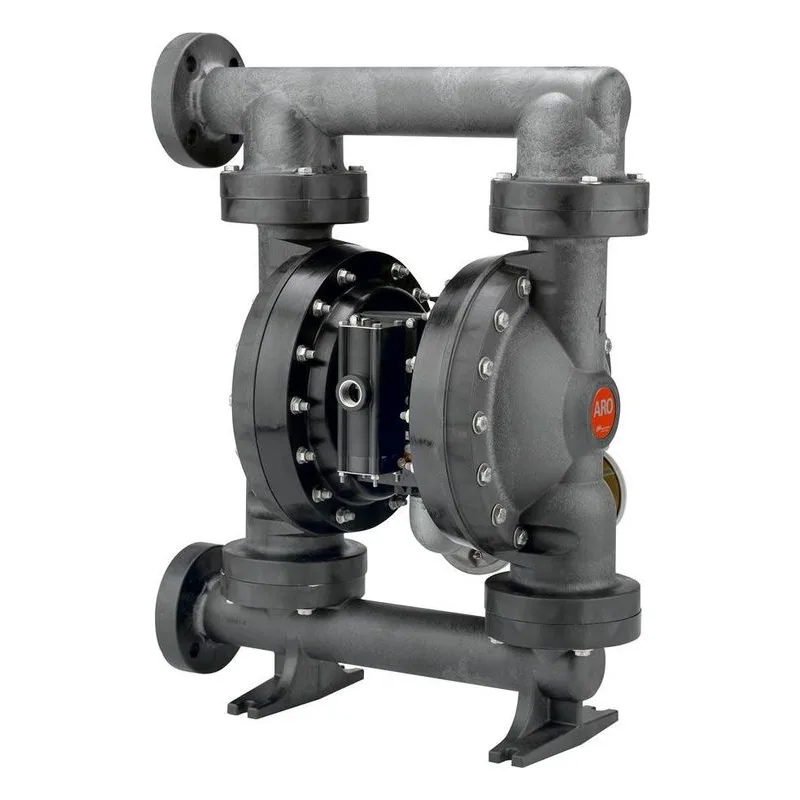

ARO PD20E-FES-PAA 1" Non-Metallic Expert Series AODD Diaphragm Pump. Polypropylene / Vinyl Ester Center Body, Conducive Polypropylene Fluid Caps & Manifold, Stainless Steel Hardware. 184 GPM (696 LPM) Maximum Flow Rate, Polypropylene Seats, Santoprene Balls & Diaphragm, 2" ANSI / DIN Hybrid Side Flange Connection. An Ingersoll Rand Business.

$6,065.44

Best Price Guarantee!
1212PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD20E-FES-PAA

Repair Parts Exploded View Diagram

Overview
Reviews
Literature/Manuals
Repair Parts

PD20E-FES-PAA

Air Inlet	3/4 - 14 NPT
CCN Number	15242381
Connection Size	2"
Connection Type	2" ANSI / DIN Hybrid Side Flange
Diaphragm	Santoprene
Discharge Volume Per Cycle	1.4 Gal (5.3 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Conducive Polypropylene Fluid Caps & Manifold
Material	Polypropylene / Vinyl Ester Center Body
Maximum Flow (GPM)	184 GPM (696 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	19.5 Feet (5.9m)
Metal Parts	Stainless Steel Hardware
Model Series	Conductive Polypropylene
Quick Specs	2 IN EXP NON METALLIC ATEX DIAH PUMP
Solids (Inches)	1/4" (6.4mm)
Temperature Range	32° to 175° F (0° to 79° C)
Type	Standard Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Polypropylene

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PD10E 1" Conductive Non Metallic Datasheet		View
	PD15E 1 1/2" Conductive Non Metallic Datasheet		View
	PD20E 2" Conductive Non Metallic Datasheet		View
	PD20E-FES-PAA Datasheet		View
	PD10E 1" Conductive Non Metallic Manual		View
	PD15E 1 1/2" Conductive Non Metallic Manual		View
	PD20E 2" Conductive Non Metallic Manual		View
	PD20E-FES-PAA Manual		View
	PD20P-FKS-KAA ARO Pump Repair Parts Exploded View, Fluid Section		View
	PD20P-FKS-KAA ARO Pump Repair Parts Exploded View, Air Section		View
