PD10E-FES-PAA

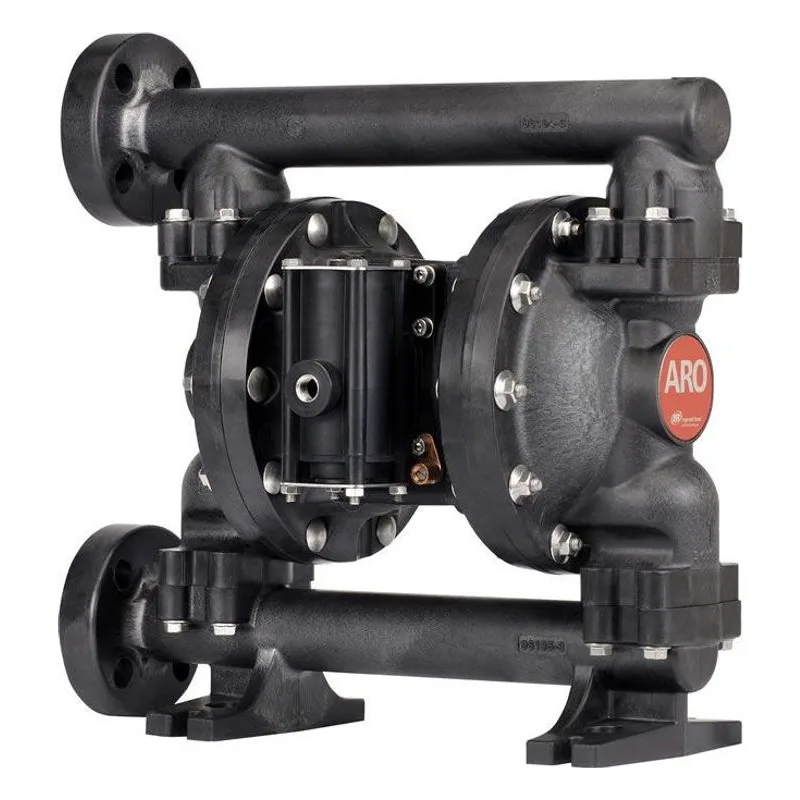

Image shown may not be actual product

PD10E-FES-PAA

0 reviews

ARO PD10E-FES-PAA 1" Non-Metallic Expert Series AODD Diaphragm Pump. Conducive Polypropylene Center Body, Conducive Polypropylene Fluid Caps & Manifold, Stainless Steel Hardware. 53.0 GPM (200.6 LPM) Maximum Flow Rate, Polypropylene Seats, Santoprene Balls & Diaphragm, 1" ANSI / DIN Flange / End Connection. An Ingersoll Rand Business.

$2,411.42

Best Price Guarantee!
482PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD10E-FES-PAA

Repair Parts Exploded View Diagram

Overview
Reviews
Literature/Manuals
Repair Parts

PD10E-FES-PAA

Air Inlet	1/4 - 18 NPT
CCN Number	15242183
Connection Size	1"
Connection Type	1" ANSI / DIN Flange / End
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.226 Gal (0.86 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Conducive Polypropylene Fluid Caps & Manifold
Material	Conducive Polypropylene Center Body
Maximum Flow (GPM)	53.0 GPM (200.6 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	19 Feet (5.7m)
Metal Parts	Stainless Steel Hardware
Model Series	Conductive Polypropylene
Quick Specs	1 IN EXP NON METALLIC DIAPH PUMP
Solids (Inches)	1/8" (3.2mm)
Temperature Range	32° to 175° F (0° to 79° C)
Type	Standard Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Polypropylene

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PD10E 1" Conductive Non Metallic Datasheet		View
	PD15E 1 1/2" Conductive Non Metallic Datasheet		View
	PD20E 2" Conductive Non Metallic Datasheet		View
	PD10E-FES-PAA Datasheet		View
	PD10E 1" Conductive Non Metallic Manual		View
	PD15E 1 1/2" Conductive Non Metallic Manual		View
	PD20E 2" Conductive Non Metallic Manual		View
	PD10E-FES-PAA Manual		View
	PD10P-AKS-KAA ARO Pump Repair Parts Exploded View, Fluid Section		View
	PD10P-AKS-KAA ARO Pump Repair Parts Exploded View, Air Section		View
