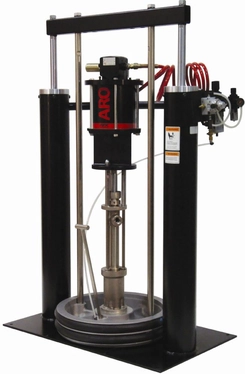

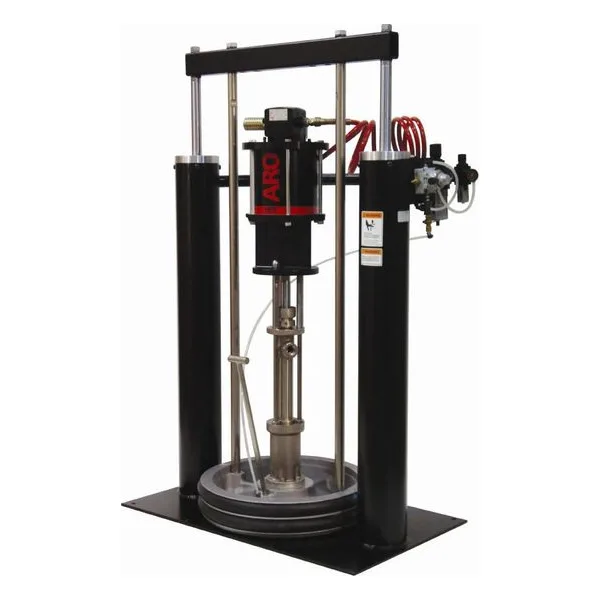

ARO Force Piston Pumps 55 Gallon HDX Package - 3.8 GPM to 6 GPM (14.3 LPM to 22.9 LPM). Features a heavy duty two post ram, pump, follower plate, and controls designed for high-viscosity applications when maximum downforce is required. Integrated wet cup ensures extended pump life. Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation. Durability - Hard chrome plated plunger improves abrasion resistance. Versatility - Multiple mounting configurations and materials of construction for your specific application needs. Environmentally Sound - Optional muffler ensures pump meets OSHA specifications. Serviceability - Minimal part count combined with tie-rod construction for simple, efficient repairs. Typical Applications - Pumping sealants, adhesives, epoxies, inks, lubricants, urethane, silicone, and caulk. Package Description: 55 Gallon, Heavy-Duty Two-Post Ram Package, Basic Pump Model: AF1044S11XXXX & AF0844S11XXXX, Two-Post Ram: RM552H-C, Muffler: 67445-4 & 67445-3, 55 Gallon Follower Plate
Search Results
(11 results)
HD1265S51FF47AN2
ARO
ARO HD1265S51FF47AN2 Two Post Heavy Duty Chop Check Piston Pump. 12" Motor, 65:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet.
DC0450L53PKL1000
ARO
ARO DC0450L53PKL1000 Lubrication Piston Pump Package. 4-1/4" Motor, 50:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Polyurethane (Upper), Filled PTFE (Lower) Packing, Coil Spring No Solvent Cup, Carbon Steel Plunger. Immersed Inlet, 1/2 - 14 NPTF - 1 Outlet.
DC060BL43PKL1C11
ARO
ARO DC060BL43PKL1C11 Lubrication Piston Pump Package. 6" Motor, 100:1 Ratio, Container Suitability: 16 Gallon (120 lbs),Polyurethane (Upper), Glass Filled PTFE (Lower) Packing, Carbon Steel Plunger. 1/2 - 14 NPTF Outlet, 0 - 10000 psig (0 - 690 bar) Pressure Range.
DC060BL53PKL1C11
ARO
ARO DC060BL53PKL1C11 Lubrication Piston Pump Package. 6" Motor, 100:1 Ratio, Container Suitability: 55 Gallon (400 lbs),Polyurethane (Upper), Glass Filled PTFE (Lower) Packing, Carbon Steel Plunger. 1/2 - 14 NPTF Outlet, 0 - 10000 psig (0 - 690 bar) Pressure Range.
DM0409A53PFL1000
ARO
ARO DM0409A53PFL1000 Lubrication Piston Pump Package. 4-1/4" Motor, 9:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Polyurethane (Upper), UHMW-PE (Lower) Packing, Coil Spring No Solvent Cup, Carbon Steel Plunger. Immersed Inlet, 3/4 - 14 NPTF - 1 Outlet.
DM0450L53PKL1000
ARO
ARO DM0450L53PKL1000 Lubrication Piston Pump Package. 4-1/4" Motor, 50:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, Polyurethane (Upper), Filled PTFE (Lower) Packing, Coil Spring No Solvent Cup, Carbon Steel Plunger. Immersed Inlet, 1/2 - 14 NPTF - 1 Outlet.
HD0844S51FF47AN2
ARO
ARO HD0844S51FF47AN2 Heavy Duty Chop Check Extrusion Piston Pump. 8" Motor, 44:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet.
HD1044S51FF47AN2
ARO
ARO HD1044S51FF47AN2 Two Post Heavy Duty Chop Check Piston Pump. 10" Motor, 44:1 Ratio, Container Suitability: 55 Gallon (400 lbs). Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1-1/4 - 11-1/2 NPTF - 1 Outlet.
DC0475L53PBL1C11
ARO
ARO DC0475L53PBL1C11 DCX Series Drum Cover Grease Piston Pump Package. 4-1/4" Motor, 75:1 Ratio, Container Suitability: 55 Gallon Container (400lbs). Carbon Steel, Polyurethane Lower Packing, Buna N. Immersed Inlet, 1/2 - 14 NPTF - 1 Outlet, 0 - 7500 psig (0 - 517 bar) Pressure Range.
DM0475L53PBL1C11
ARO
ARO DM0475L53PBL1C11 DMX Series Drum Mount Grease Piston Pump Package. 4-1/4" Motor, 75:1 Ratio, Container Suitability: 55 Gallon Container (400lbs). Carbon Steel, Polyurethane Lower Packing, Buna N. Immersed Inlet, 1/2 - 14 NPTF - 1 Outlet, 0 - 7500 psig (0 - 517 bar) Pressure Range.

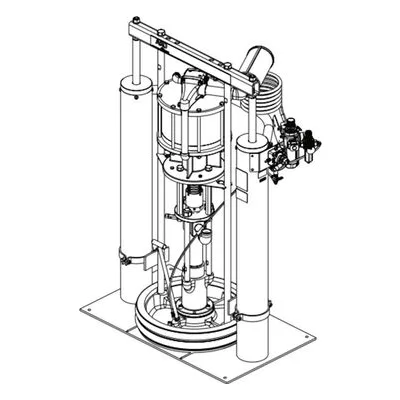

HD1265S51PF17AE2
ARO
ARO HD1265S51PF17AE2 55 Gallon Heavy Duty Two Post Ram Package with AF1265S11PF17 Piston Pump. 12" Air Motor with Carbon Steel, Nickel Plated Lower Pump and Carbon Steel Wetted Parts. 65:1 Ratio and 6 GPM (Gallons Per Minute) Max Flow Rate. 1-1/4” NPTF Fluid Outlet and 3/4” NPTF Air Inlet. An Ingersoll Rand Product.
