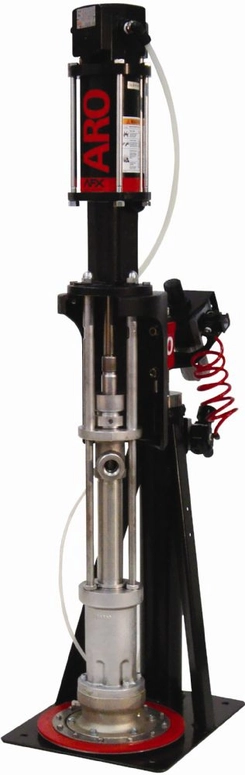

ARO Force Piston Pumps 5 Gallon SPX Package - 0.74 GPM to 3.2 GPM (2.8 LPM to 12.3 LPM). Ideal for medium- to heavy-viscosity extrusion, ARO's single post ram with pump, follower plate, and controls allows for easy contianer changeover while providing industry-leading downforce during operation. Integrated wet cup ensures extended pump life. Reliability - Eliminating downtime, the unbalanced air valve ensures stall-free pump operation. Durability - Hard chrome plated plunger improves abrasion resistance. Versatility - Multiple mounting configurations and materials of construction for your specific application needs. Environmentally Sound - Optional muffler ensures pump meets OSHA specifications. Serviceability - Minimal part count combined with tie-rod construction for simple, efficient repairs. Typical Applications - Pumping sealants, adhesives, epoxies, inks, lubricants, urethane, silicone, and caulk. Package Description: 5 Gallon, Single-Post Ram Package, Basic Pump Model: AF0665S11XXXX, AF0646S11XXXX, AF0443X11XXXX, AF0623S11XXXX, AF0430G11XXXX, Single-Post Ram: RM051S-C, Muffler: 67445-1, 67445-2, 5 Gallon Follower Plate
Search Results
(60 results)SP0411G21FF47T82
ARO
ARO SP0411G21FF47T82 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 5 Gallon.
SP0411G21FF48E12
ARO
ARO SP0411G21FF48E12 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 5 Gallon.
SP0411G21KK48A72
ARO
ARO SP0411G21KK48A72 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 5 Gallon.
SP0411G21KK48E32
ARO
ARO SP0411G21KK48E32 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 11:1 Ratio, Container Suitability: 5 Gallon.
SP0423S21FF47E52
ARO
ARO SP0423S21FF47E52 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 5 Gallon. Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
SP0423S21FF47EC2
ARO
ARO SP0423S21FF47EC2 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 5 Gallon. Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
SP0623S21FF47EC4
ARO
ARO SP0623S21FF47EC4 SPX Series Single-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 5 Gallon. Carbon Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
SP0623S21UU47EB4
ARO
ARO SP0623S21UU47EB4 SPX Series Single-Post Ram Piston Pump Package. 6" Motor, 23:1 Ratio, Container Suitability: 5 Gallon. Carbon Steel, Glass-Filled PTFE / Leather Staggered (Upper & Lower) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ hard chrome coating Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 4215 psi (47.6 - 290.7 bar) Pressure Range.
SP0646S21FF47E52
ARO
ARO SP0646S21FF47E52 SPX Series Single-Post Ram Piston Pump Package. 6" Motor, 46:1 Ratio, Container Suitability: 5 Gallon.
SP0412S21RK47E32
ARO
ARO SP0412S21RK47E32 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 12:1 Ratio, Container Suitability: 5 Gallon.
SP0443T21GN47S22
ARO
ARO SP0443T21GN47S22 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 43:1 Ratio, Container Suitability: 5 Gallon. 300 Series Stainless Steel, UHMW-PE / Glass filled PTFE staggered (Upper), UHMW-PE (Lower Ribs) Packing, Multiple Wave Spring, Hardened Stainless Steel w/ Hard Chrome Plating Plunger. Follower Plate Mounted Inlet, 1/2 - 14 NPTF - 1 Outlet, 1308 - 6549 psi (90.2 - 451.7 bar) Pressure Range.
SP0423T21FF47TU2
ARO
ARO SP0423T21FF47TU2 SPX Series Single-Post Ram Piston Pump Package. 4-1/4" Motor, 23:1 Ratio, Container Suitability: 5 Gallon Container. Stainless Steel, UHMW-PE (Upper & Lower) Packing, Multiple Wave Spring / Standard Solvent Cup, 17-4 Stainless Steel, Hard Chrome Plated Plunger. Flange Mount Inlet, 1 - 11-1/2 NPTF - 1 Outlet, 690 - 3690 psi (47.6 - 254.5 bar) Pressure Range.
