Image shown may not be actual product
670078-2

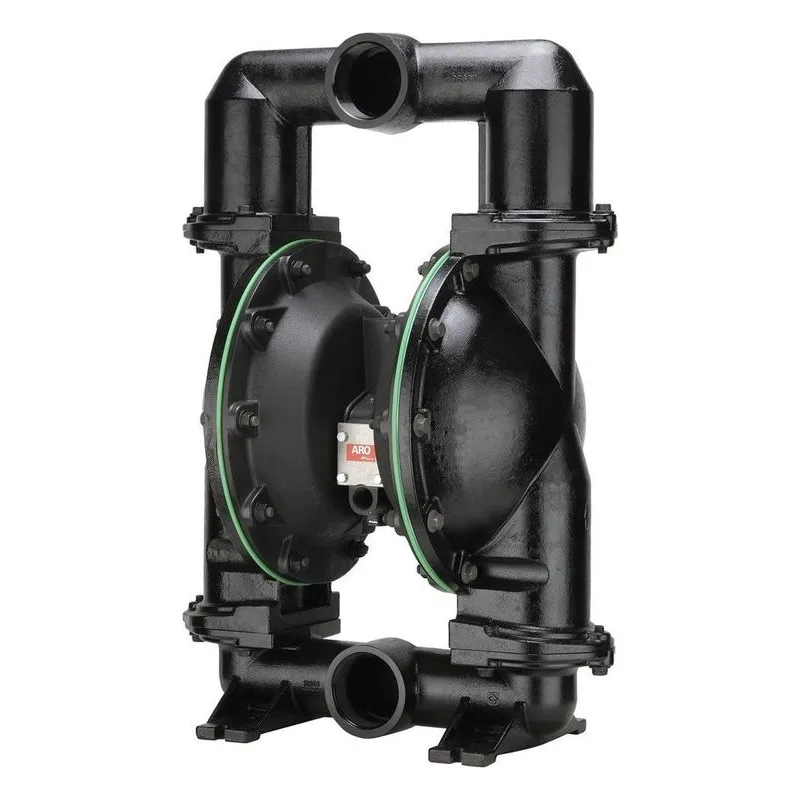

ARO 670078-2 3" Metallic Pro Series AODD Diaphragm Pump. Aluminum Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 237 GPM (897 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, Santoprene Balls & Diaphragm, 3 - 8 NPTF - 1 Connection. An Ingersoll Rand Business.
$9,565.19
- Best Price Guarantee!
- 1912PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
670078-2
ARO 670078-2 3" Metallic Pro Series AODD Diaphragm Pump. Aluminum Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 237 GPM (897 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, Santoprene Balls & Diaphragm, 3 - 8 NPTF - 1 Connection. An Ingersoll Rand Business.
| Air Inlet | 3/4 - 14 NPTF - 1 |
| CCN Number | 47517010001 |
| Connection Size | 3" |
| Connection Type | 3 - 8 NPTF - 1 |
| Diaphragm | Santoprene |
| Discharge Volume Per Cycle | 2.8 Gal (10.6 Lit) |
| Inlet Pressure (PSI) | 120 psig (8.3 bar) |
| Liquid End Configuration | Stainless Steel Fluid Caps & Manifold |
| Material | Aluminum Air Motor/Cap |
| Maximum Flow (GPM) | 237 GPM (897 LPM) |
| Maximum Working Pressure (PSIG) | 120 psi (8.3 bar) |
| Metal Parts | Stainless Steel Hardware |
| Model Series | 3” Metallic Pro Series |
| Quick Specs | 3" PUMP ASSEMBLY |
| Solids (Inches) | 3/8" (9.5mm) |
| Temperature Range | -40° to 225° F (-40° to 107° C) |
| Type | Standard Pump |
| Valve Balls | Santoprene |
| Valve / Seat / O-Ring | 316 Stainless Steel |
3” Metallic Pro Information
| Features & Benefits |
|---|
| 3” Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 237-g.p.m. (897-l.p.m.) Displacement per cycle: 2.65-Gallons (10.03-Liters) Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1 Fluid Inlet: 3 - 8 N.P.T.F. - 1 Rp 3 (3 - 11 BSP parallel) Fluid Outlet: 3 - 8 N.P.T.F. - 1 Rp 3 (3 - 11 BSP, parallel) Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 3/8-in. (9.5-mm) Weight: lbs (kg) 6663X0-XXX-C 109.8 (49.8) 6663X1-XXX-C 222.2 (100.8) 6663X2-XXX-C 213.1 (96.7) Maximum dry suction lift: ft (m) 17.6 (5.4) |
