666300-1EB-C

Image shown may not be actual product

666300-1EB-C

0 reviews

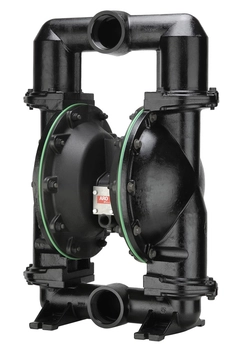

ARO 666300-1EB-C 3" Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Carbon Steel Hardware. 237 GPM (897 LPM) Maximum Flow Rate, Aluminum Seats, Santoprene Balls & Diaphragm, 3 - 8 NPTF - 2 Connection. An Ingersoll Rand Business.

$3,822.84

Best Price Guarantee!
764PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 666300-1EB-C

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

666300-1EB-C

Air Inlet	3/4 - 14 NPTF - 2
CCN Number	15311111
Connection Size	3"
Connection Type	3 - 8 NPTF - 2
Diaphragm	Santoprene
Discharge Volume Per Cycle	2.65 Gal (10.03 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Aluminum Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	237 GPM (897 LPM)

Metal Parts	Carbon Steel Hardware
Model Series	3” Metallic Pro Series
Quick Specs	PUMP,DIAPHRAGM,3IN
Solids (Inches)	3/8" (9.5mm)
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	Standard Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Aluminum

3” Metallic Pro Information

Features & Benefits
3” Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 237-g.p.m. (897-l.p.m.) Displacement per cycle: 2.65-Gallons (10.03-Liters) Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1 Fluid Inlet: 3 - 8 N.P.T.F. - 1 Rp 3 (3 - 11 BSP parallel) Fluid Outlet: 3 - 8 N.P.T.F. - 1 Rp 3 (3 - 11 BSP, parallel) Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 3/8-in. (9.5-mm) Weight: lbs (kg) 6663X0-XXX-C 109.8 (49.8) 6663X1-XXX-C 222.2 (100.8) 6663X2-XXX-C 213.1 (96.7) Maximum dry suction lift: ft (m) 17.6 (5.4)

Features & Benefits

3” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 237-g.p.m. (897-l.p.m.)
Displacement per cycle: 2.65-Gallons (10.03-Liters)
Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1
Fluid Inlet: 3 - 8 N.P.T.F. - 1
Rp 3 (3 - 11 BSP parallel)
Fluid Outlet: 3 - 8 N.P.T.F. - 1
Rp 3 (3 - 11 BSP, parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 3/8-in. (9.5-mm)
Weight: lbs (kg)
6663X0-XXX-C 109.8 (49.8)
6663X1-XXX-C 222.2 (100.8)
6663X2-XXX-C 213.1 (96.7)
Maximum dry suction lift: ft (m) 17.6 (5.4)

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Pro Series Diaphragm Piston Pumps Brochure		View
	66630X 66632X 3" Metallic Datasheet		View
	666300-XXX-C 3" Metallic Manual		View
	666300-144-C ARO Pump Repair Parts Exploded View, Fluid Section		View
	666300-144-C ARO Pump Repair Parts Exploded View, Air Section		View
