PD30S-FSS-CCC-C

Image shown may not be actual product

PD30S-FSS-CCC-C

0 reviews

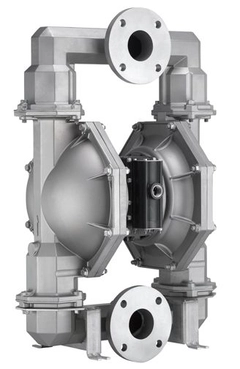

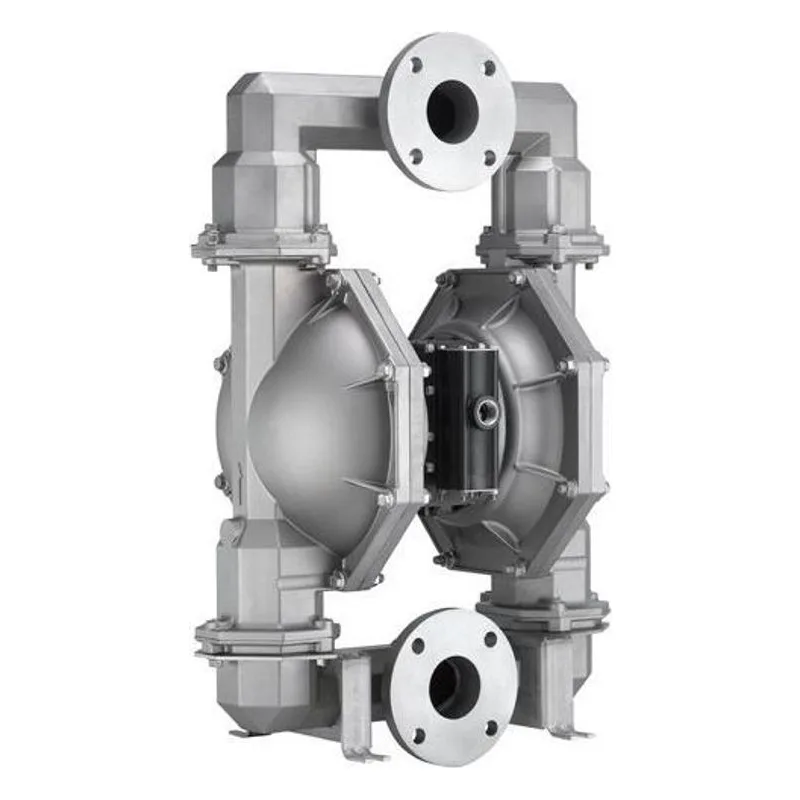

ARO PD30S-FSS-CCC-C 3" Metallic Expert Series AODD Diaphragm Pump. Stainless Steel Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 275 GPM (1041 LPM) Maximum Flow Rate, Hytrel Seats, Balls & Diaphragm, 3" DIN Flange (8-Holes) Connection. An Ingersoll Rand Business.

$15,282.14

Best Price Guarantee!
3056PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD30S-FSS-CCC-C

Repair Parts Exploded View Diagram

Overview
Reviews
Literature/Manuals
Repair Parts

PD30S-FSS-CCC-C

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	15324809
Connection Size	3"
Connection Type	3" DIN Flange (8-Holes)
Diaphragm	Hytrel
Discharge Volume Per Cycle	2.8 Gal (10.6 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Stainless Steel Fluid Caps & Manifold
Material	Stainless Steel Air Motor/Cap
Maximum Flow (GPM)	275 GPM (1041 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	14 Feet (4.2m)
Metal Parts	Stainless Steel Hardware
Model Series	3” Metallic Flanged Expert Series
Quick Specs	3 IN EXP METALLIC DIAPH PUMP
Solids (Inches)	3/8" (9.5mm)
Temperature Range	-20° to 180° F (-29° to 82° C)
Type	Standard Pump
Valve Balls	Hytrel
Valve / Seat / O-Ring	Hytrel

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	Electronic Interface Brochure		View
	PD30A PE30A PD30S PE30S 3" Metallic Datasheet		View
	PE30X-XXX-XXX-C0S 3" Metallic Datasheet		View
	PD30S-FSS-CCC-C Datasheet		View
	PD30X PE30X 3" Metallic Manual		View
	PD30X PE30X 3" Metallic Manual		View
	PD30A-AAP-AAA-C ARO Pump Repair Parts Exploded View, Fluid Section		View
	PD30A-AAP-AAA-C ARO Pump Repair Parts Exploded View, Air Section		View
