PD30A-DSS-STA-C

Home
ARO
3” Metallic Expert
PD30A-DSS-STA-C

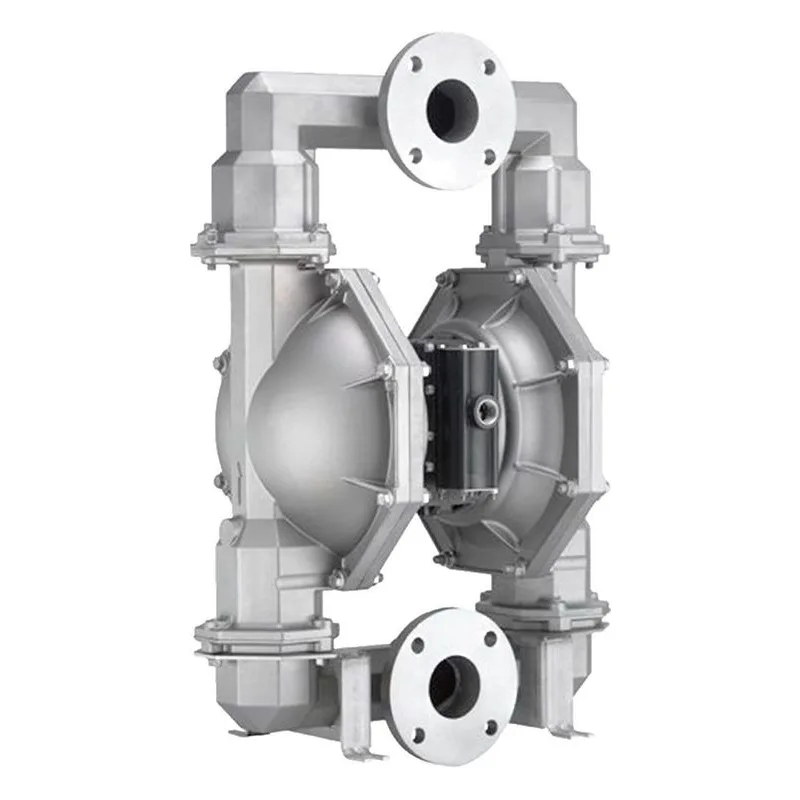

Image shown may not be actual product

PD30A-DSS-STA-C

0 reviews

ARO PD30A-DSS-STA-C 3" Expert Series Metallic Air Operated Double Diaphragm Pump. Build with Santoprene Dipahragms and Stainless Steel Manifold. 1:1 Ratio, 275 GPM (Gallons Per Minute) Max Flow Rate, and 120 PSI Maximum Pressure. 3" ANSI Flange Fluid Connections, 3/4" NPTF Air Inlet, and 3/8" (0.375") Maximum Solids Handling. 14 ft. Maximum Dry Suction Lift and 40°F to 225°F Temperature Range. An Ingersoll Rand Product.

Pump Catalog Price
Retail Price: $11,839.37
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD30A-DSS-STA-C

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD30A-DSS-STA-C

Air Inlet	3/4 - 14 NPTF - 1
Ball Material	PTFE
Build	Stainless Steel Fluid Cap/Manifold
Configuration	Aluminum Air Motor/Air Cap
Diaphragm	Santoprene
Discharge NPT (Inches)	3” - 8 NPTF - 1 Rp 3 (3 - 11 BSP ANSI or DIN Center Flange)
Discharge Volume Per Cycle	2.8 Gal (10.6 L)
Fluid Port	3" ANSI Flange (4-holes)
Includes	Muffler
Inlet Pressure (PSI)	120 PSIG (8.3 Bar)

Maximum Flow (GPM)	275 GPM (1041 lpm)
Maximum Pressure (PSI)	120 PSI (8.3 Bar)
Max Suction Lift	14 ft. (4.2m)
Quick Specs	3" DIAPHRAGM PUMP ASM
Solids (Inches)	3/8" (9.5mm)
Suction NPT (Inches)	3” - 8 NPTF - 1 Rp 3 (3 - 11 BSP ANSI or DIN Center Flange)
Temperature Range	40°F to 225°F (4°C to 107°C)
Turn Down Ratio	1:1
Valve / Seat / O-Ring	316 Stainless Steel Seat

3” Metallic Expert Information

Features & Benefits
3” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 275 (1041) Displacement per cycle: 2.8 (10.6) @ 100 psi Gallons (Liters) Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1 Fluid Inlet / Outlet (Female): 3” - 8 N.P.T.F. - 1 Rp 3 (3 - 11 BSP parallel) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 3/8 (9.5) Weight lbs (kg): PX30A-XAX-XXX-C 129.5 (58.8) PX30A-XCX-XXX-C 216.6 (98.2) PX30A-XSX-XXX-C 228.8 (103.8) PX30A-XHX-XXX-C 249.8 (113.3) PX30R-XCX-XXX-C 242.3 (109.9) PX30R-XSX-XXX-C 253.3 (114.9) Note: Add 40 lbs (18.2 kg) for stainless steel air motor section Maximum dry suction lift ft (m): 14 (4.2) Sound Level: PSI Cycles / Min db(A) 70 50 83.0

Features & Benefits

3” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 275 (1041)
Displacement per cycle: 2.8 (10.6)
@ 100 psi Gallons (Liters)
Air Inlet: (Female) 3/4 - 14 N.P.T.F. - 1
Fluid Inlet / Outlet (Female): 3” - 8 N.P.T.F. - 1
Rp 3 (3 - 11 BSP parallel)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 3/8 (9.5)
Weight lbs (kg): PX30A-XAX-XXX-C 129.5 (58.8)
PX30A-XCX-XXX-C 216.6 (98.2)
PX30A-XSX-XXX-C 228.8 (103.8)
PX30A-XHX-XXX-C 249.8 (113.3)
PX30R-XCX-XXX-C 242.3 (109.9)
PX30R-XSX-XXX-C 253.3 (114.9)
Note: Add 40 lbs (18.2 kg) for stainless steel air motor section
Maximum dry suction lift ft (m): 14 (4.2)
Sound Level:
PSI Cycles / Min db(A)
70 50 83.0

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	Electronic Interface Brochure		View
	PE30X-XXX-XXX-C0S 3" Metallic Datasheet		View
	PD30R PE30R 3" Metallic Datasheet		View
	PE30X-XXX-XXX-C0S 3" Metallic Manual		View
	PD30X PE30X 3" Metallic Manual		View
	PD30R PE30R 3" Metallic Manual		View

Repair Parts for PD30A-DSS-STA-C

	shipping	price
637421	Ships in 1 Week	$149.80	Select item
637374-2	Ships in	$504.50	Select item
637303-TA	Ships in	$1,054.50	Select item
637303-STA	Ships in	Call for pricing
66109	Ships in	$690.80	Select item
67237	Ships in	$1,718.70	Select item
