PE03P-ARS-PAA-A0F

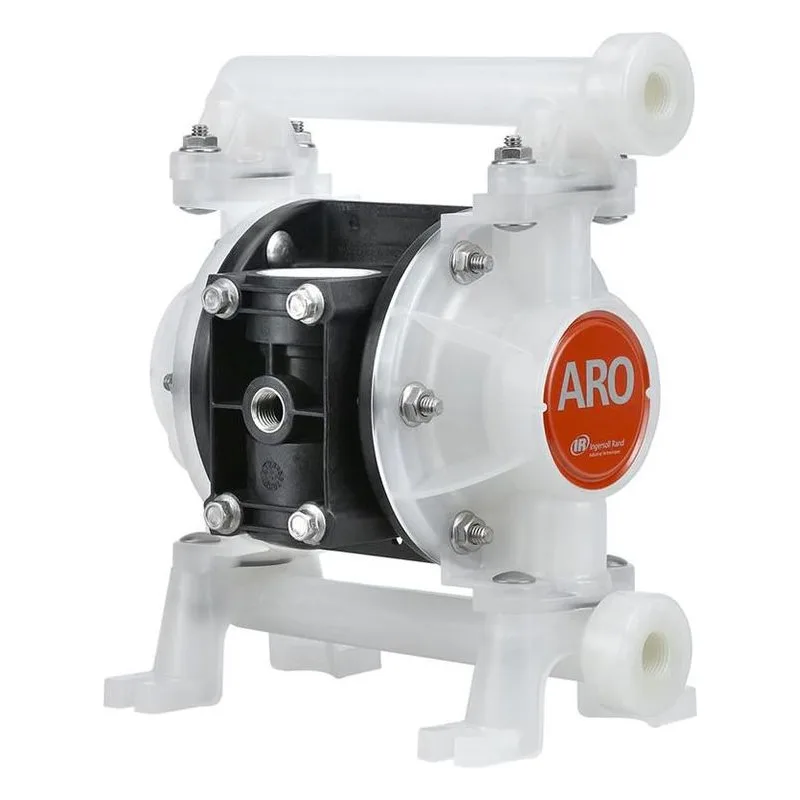

Image shown may not be actual product

PE03P-ARS-PAA-A0F

0 reviews

ARO PE03P-ARS-PAA-A0F 3/8" Non-Metallic Compact AODD Diaphragm Pump with Electronic Interface. Polypropylene Center Body, Fluid Caps & Manifold (Multiple Port), Stainless Steel Hardware. Polypropylene Seats, Santoprene Balls & Diaphragms, 3/8 - 18 NPTF - 1 Connection. An Ingersoll Rand Business.

$798.89

Best Price Guarantee!
159PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PE03P-ARS-PAA-A0F

Overview
Series Info
Reviews
Literature/Manuals

PE03P-ARS-PAA-A0F

Air Inlet	1/4 - 18 PTF SAE Short
CCN Number	PE03P-ARS-PAA-A0F
Configuration	Multiple Port
Connection Size	3/8"
Connection Type	3/8 - 18 NPTF - 1
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.022 Gal (0.083 Lit)
Inlet Pressure (PSI)	100 psig (6.9 bar)
Liquid End Configuration	Polypropylene Fluid Caps/Manifold
Material	Polypropylene Center Body
Maximum Flow (GPM)	10.6 GPM (40.1 LPM)
Maximum Working Pressure (PSIG)	100 psi (6.9 bar)

Max Suction Lift	9.25 Feet (2.8m)
Metal Parts	Stainless Steel Hardware
Options	End Of Stroke Feedback
Product Notes	Standard valve Block (No Solenoid)
Quick Specs	3/8 INCH NON-METALLIC DIAPHRAGM PUMP
Solids (Inches)	1/16" (1.6mm)
Temperature Range	32° to 175° F (0° to 79° C)
Type	Electronic Interface
Valve Balls	Santoprene
Valve / Seat / O-Ring	Polypropylene

3/8” Non-Metallic Compact Information

Features & Benefits
3/8” Non-Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 10.6-g.p.m. (40.1-l.p.m.) Displacement per cycle: 0.022-Gallons (0.083-Liters) Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short Fluid Inlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Fluid Outlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Max. operating pressure: 100-psi (6.9-bar) Suspended solids max. dia.: 1/16-in. (1.6-mm) Weight: lbs (kg) PD03P-XDS-XXX 4.2 (1.9) PD03P-XES-XXX 4.3 (1.9) PD03P-XKS-XXX 4.5 (2.0) PD03P-XLS-XXX 4.6 (2.1) PD03P-XPS-XXX 3.4 (1.6) PD03P-XRS-XXX 3.5 (1.6) Maximum dry suction lift: 8.5-ft (2.6-m) PTFE (Teflon®) fitted

Features & Benefits

3/8” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 10.6-g.p.m. (40.1-l.p.m.)
Displacement per cycle: 0.022-Gallons (0.083-Liters)
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet: 3/8 - 18 N.P.T.F. - 1
Rp 3/8 (3/8 - 19 BSP, parallel)
Fluid Outlet: 3/8 - 18 N.P.T.F. - 1
Rp 3/8 (3/8 - 19 BSP, parallel)
Max. operating pressure: 100-psi (6.9-bar)
Suspended solids max. dia.: 1/16-in. (1.6-mm)
Weight: lbs (kg)
PD03P-XDS-XXX 4.2 (1.9)
PD03P-XES-XXX 4.3 (1.9)
PD03P-XKS-XXX 4.5 (2.0)
PD03P-XLS-XXX 4.6 (2.1)
PD03P-XPS-XXX 3.4 (1.6)
PD03P-XRS-XXX 3.5 (1.6)
Maximum dry suction lift: 8.5-ft (2.6-m) PTFE (Teflon®) fitted
