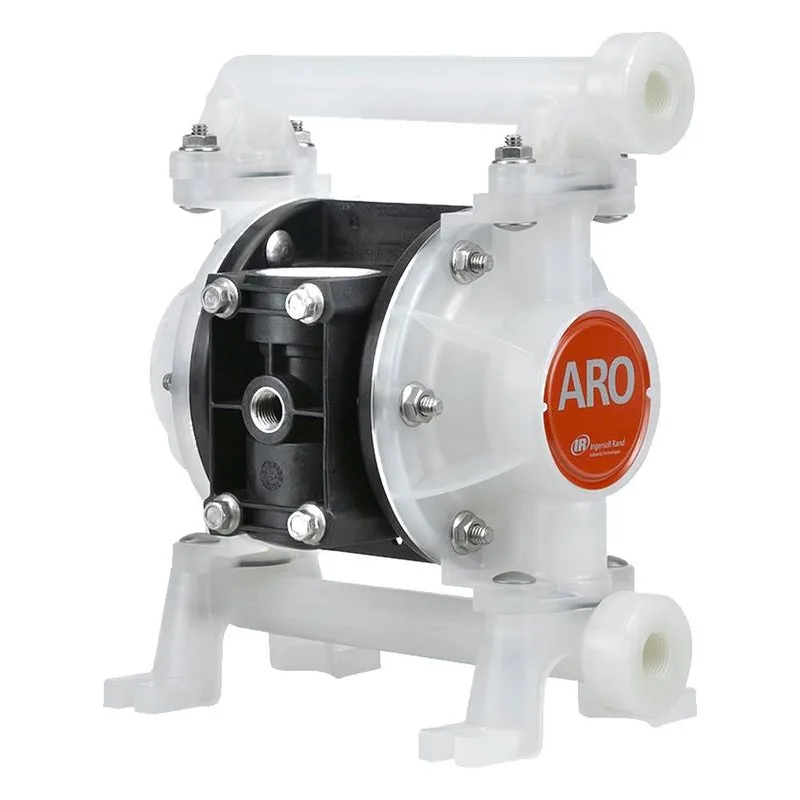

Image shown may not be actual product
PE03P-AES-DAA-AOM
ARO PE03P-AES-DAA-AOM 3/8" Polypropylene Expert Air Operated, Double Diaphragm Pump. 3/8" NPTF Connection Port with a 10.6 GPM Maximum Flow Rate and 0.022 Gallons displacement per cycle. Constructed with a Acetal Seat, Santoprene Balls and a Santoprene Diaphragm capable of handling temperatures from -40 to 225 F. 1/16" Solids Handling with a 100 psi Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PE03P-AES-DAA-AOM
ARO PE03P-AES-DAA-AOM 3/8" Polypropylene Expert Air Operated, Double Diaphragm Pump. 3/8" NPTF Connection Port with a 10.6 GPM Maximum Flow Rate and 0.022 Gallons displacement per cycle. Constructed with a Acetal Seat, Santoprene Balls and a Santoprene Diaphragm capable of handling temperatures from -40 to 225 F. 1/16" Solids Handling with a 100 psi Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
| Air Inlet | 1/4 - 18 P.T.F. SAE Short (Female) |
| Ball Material | Santoprene |
| Build | Air Operated, Double Diaphragm |
| Connections / Discharge (Inches) | 3/8" NPTF |
| Connection Size | 3/8" |
| Connection Type | NPTF |
| Diaphragm | Santoprene |
| Discharge Volume Per Cycle | 0.022 Gallons |
| Inlet Pressure (PSI) | 100 PSIG |
| Material | Polypropylene |
| Maximum Flow (GPH) | 636 GPH |
| Maximum Working Pressure (PSIG) | 100 psi |
| Max Suction Lift | 9.25 ft Dry Suction Lift |
| Solids (Inches) | 1/16" |
| Temperature Range | -40 to 225 F |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | Acetal Seat |
3/8” Non-Metallic Compact Information
| Features & Benefits |
|---|
| 3/8” Non-Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 10.6-g.p.m. (40.1-l.p.m.) Displacement per cycle: 0.022-Gallons (0.083-Liters) Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short Fluid Inlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Fluid Outlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Max. operating pressure: 100-psi (6.9-bar) Suspended solids max. dia.: 1/16-in. (1.6-mm) Weight: lbs (kg) PD03P-XDS-XXX 4.2 (1.9) PD03P-XES-XXX 4.3 (1.9) PD03P-XKS-XXX 4.5 (2.0) PD03P-XLS-XXX 4.6 (2.1) PD03P-XPS-XXX 3.4 (1.6) PD03P-XRS-XXX 3.5 (1.6) Maximum dry suction lift: 8.5-ft (2.6-m) PTFE (Teflon®) fitted |
Categories
Chemical Delivery / Transfer
2576 productsCommercial
3225 productsEffluent / Dosing Systems
2104 productsFiltration Systems
2104 productsIndustrial
3256 productsPaints & Dyes
2104 productsPharmaceutical / Chemical
2104 productsRecirculation
2110 productsTank Filling
2104 productsWastewater / Trash / Sewage
2104 productsWater Treatment
2104 products
| Type | Title | Link | |
|---|---|---|---|
PD03P 3/8" Non Metallic Brochure | View | ||
Pro Series Diaphragm Piston Pumps Brochure | View | ||
Expert and Compact Air Operated Diaphragm Pumps Brochure | View | ||
PD03P 3/8" Non Metallic Datasheet | View | ||
PE03P-XXX-XXX-A0S 3/8" Non Metallic Datasheet | View | ||
PEO3P Non-Metallic Diaphragm Pump Engineering Data Sheet | View | ||
PD03P 3/8" Non Metallic Manual | View | ||
PE03P-XXX-XXX-A0S 3/8" Non Metallic Manual | View | ||
ARO PEO3P 3/8" Non-Metallic Diaphragm Pump IOM Manual | View | ||
Repair Parts for PE03P-AES-DAA-AOM
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637428 | Ships in 3-5 Days | $114.30 | ||
| 637429-AA | Ships in 5-7 Days | $78.40 | ||
