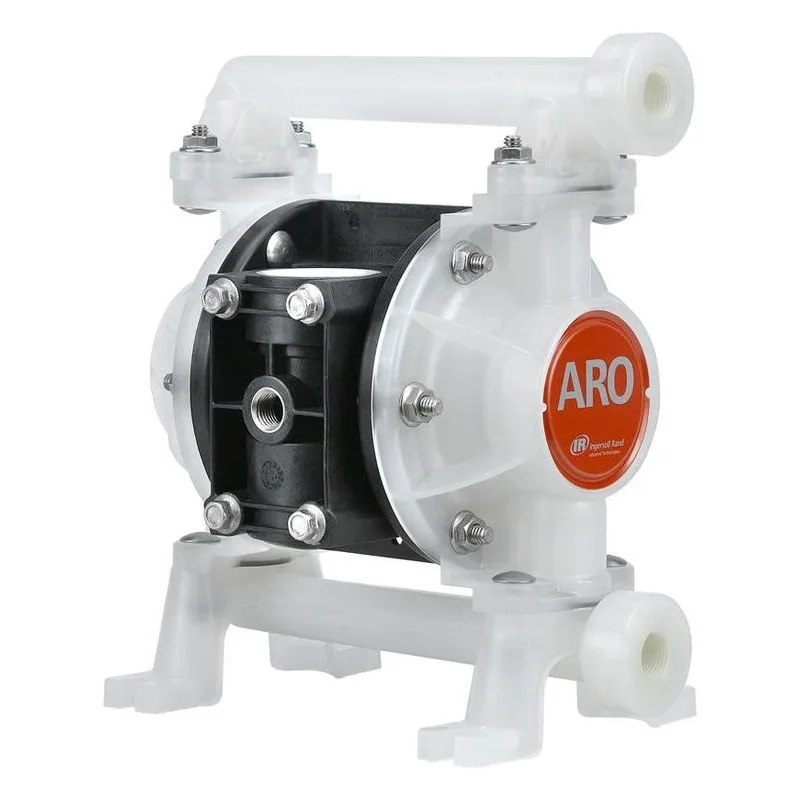

Image shown may not be actual product
PD03P-ARS-PSA
ARO PD03P-ARS-PSA 3/8" Non-Metallic Compact AODD Diaphragm Pump. Polypropylene Center Body, Polypropylene Fluid Caps & Manifold (Multiple Port), Stainless Steel Hardware. 10.6 GPM (40.1 LPM) Maximum Flow Rate, Polypropylene Seats, Stainless Steel Balls, Santoprene Diaphragm, 3/8 - 18 NPTF - 1 Connection. An Ingersoll Rand Business.
$552.58
- Best Price Guarantee!
- 110PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PD03P-ARS-PSA
ARO PD03P-ARS-PSA 3/8" Non-Metallic Compact AODD Diaphragm Pump. Polypropylene Center Body, Polypropylene Fluid Caps & Manifold (Multiple Port), Stainless Steel Hardware. 10.6 GPM (40.1 LPM) Maximum Flow Rate, Polypropylene Seats, Stainless Steel Balls, Santoprene Diaphragm, 3/8 - 18 NPTF - 1 Connection. An Ingersoll Rand Business.
| Air Inlet | 1/4 - 18 PTF SAE Short |
| CCN Number | 15257355 |
| Configuration | Multiple Port |
| Connection Size | 3/8" |
| Connection Type | 3/8 - 18 NPTF - 1 |
| Diaphragm | Santoprene |
| Discharge Volume Per Cycle | 0.022 Gal (0.083 Lit) |
| Inlet Pressure (PSI) | 100 psig (6.9 bar) |
| Liquid End Configuration | Polypropylene Fluid Caps & Manifold |
| Material | Polypropylene Center Body |
| Maximum Flow (GPM) | 10.6 GPM (40.1 LPM) |
| Maximum Working Pressure (PSIG) | 100 psi (6.9 bar) |
| Max Suction Lift | 9.25 Feet (2.8m) |
| Metal Parts | Stainless Steel Hardware |
| Model Series | 3/8” Non-Metallic Compact Series |
| Quick Specs | DIAP PUMP, 3/8IN |
| Solids (Inches) | 1/16" (1.6mm) |
| Temperature Range | 32° to 175° F (0° to 79° C) |
| Type | Standard Pump |
| Valve Balls | Stainless Steel |
| Valve / Seat / O-Ring | Polypropylene |
3/8” Non-Metallic Compact Information
| Features & Benefits |
|---|
| 3/8” Non-Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 10.6-g.p.m. (40.1-l.p.m.) Displacement per cycle: 0.022-Gallons (0.083-Liters) Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short Fluid Inlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Fluid Outlet: 3/8 - 18 N.P.T.F. - 1 Rp 3/8 (3/8 - 19 BSP, parallel) Max. operating pressure: 100-psi (6.9-bar) Suspended solids max. dia.: 1/16-in. (1.6-mm) Weight: lbs (kg) PD03P-XDS-XXX 4.2 (1.9) PD03P-XES-XXX 4.3 (1.9) PD03P-XKS-XXX 4.5 (2.0) PD03P-XLS-XXX 4.6 (2.1) PD03P-XPS-XXX 3.4 (1.6) PD03P-XRS-XXX 3.5 (1.6) Maximum dry suction lift: 8.5-ft (2.6-m) PTFE (Teflon®) fitted |
