PD07P-BPS-PAA

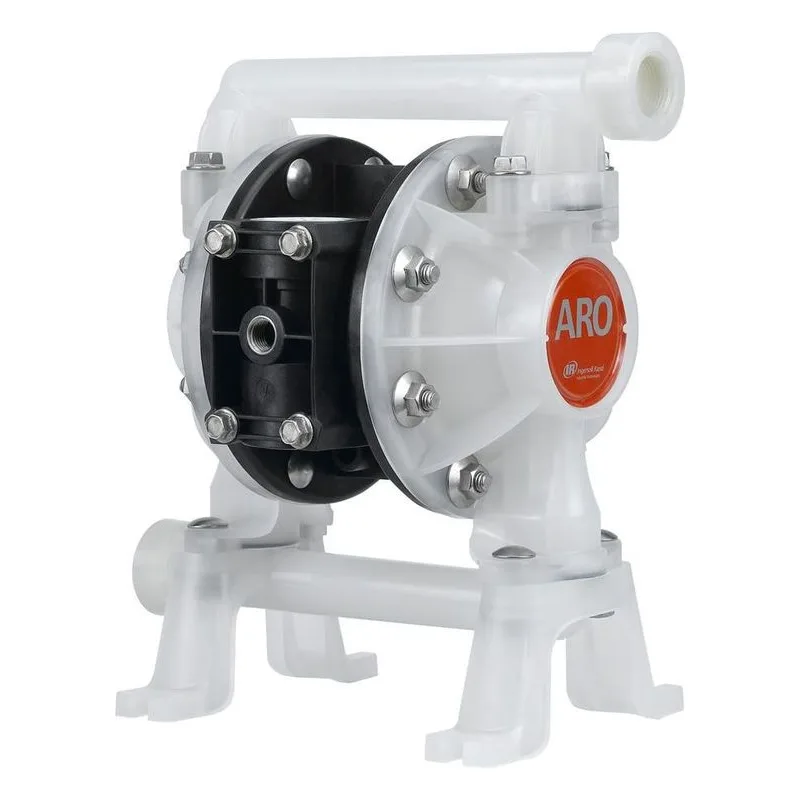

Image shown may not be actual product

PD07P-BPS-PAA

0 reviews

ARO PD07P-BPS-PAA 3/4" Non-Metallic Compact AODD Diaphragm Pump. Polypropylene Center Body, Polypropylene Fluid Caps & Manifold, Stainless Steel Hardware. 14.8 GPM (56 LPM) Maximum Flow Rate, Polypropylene Seats, Santoprene Balls & Diaphragm, Rp 3/4 (3/4-14 BSP, parallel) Connection. An Ingersoll Rand Business.

$947.41

Best Price Guarantee!
189PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD07P-BPS-PAA

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD07P-BPS-PAA

Air Inlet	1/4 - 18 PTF SAE Short
CCN Number	15276645
Connection Size	3/4"
Connection Type	Rp 3/4 (3/4-14 BSP, parallel)
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.032 Gal (0.12 Lit)
Inlet Pressure (PSI)	100 psig (6.9 bar)
Liquid End Configuration	Polypropylene Fluid Caps & Manifold
Material	Polypropylene Center Body
Maximum Flow (GPM)	14.8 GPM (56 LPM)
Maximum Working Pressure (PSIG)	100 psi (6.9 bar)

Max Suction Lift	15 Feet (4.6m)
Metal Parts	Stainless Steel Hardware
Model Series	3/4” Non-Metallic Compact Series
Quick Specs	DIAP PUMP, 3/4 IN, NM, BSP
Solids (Inches)	3/32" (2.4mm)
Temperature Range	32° to 175° F (0° to 79° C)
Type	Standard Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	Polypropylene

3/4” Non-Metallic Compact Information

Features & Benefits
3/4” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 14.8 (56.0) Displacement per cycle Gallons (Liters): 0.032 (.12) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 3/4 - N.P.T.F. - 1 Rp 3/4 (3/4 - 14 BSP) Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): 5.61 (2.54) Maximum dry suction lift ft (m): 15.0 (4.5) PTFE 13.5 (4.1) Santoprene Sound Level: PSI Cycles / Min db(A) 70 60 75.0

Features & Benefits

3/4” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 14.8 (56.0)
Displacement per cycle Gallons (Liters): 0.032 (.12)
Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT
Fluid Inlet/Outlet: 3/4 - N.P.T.F. - 1
Rp 3/4 (3/4 - 14 BSP)
Max. operating pressure psi (bar): 100 (6.9)
Suspended solids max. dia. in. (mm): 3/32” (2.4)
Weight lbs (kg): 5.61 (2.54)
Maximum dry suction lift ft (m): 15.0 (4.5) PTFE
13.5 (4.1) Santoprene
Sound Level:
PSI Cycles / Min db(A)
70 60 75.0
