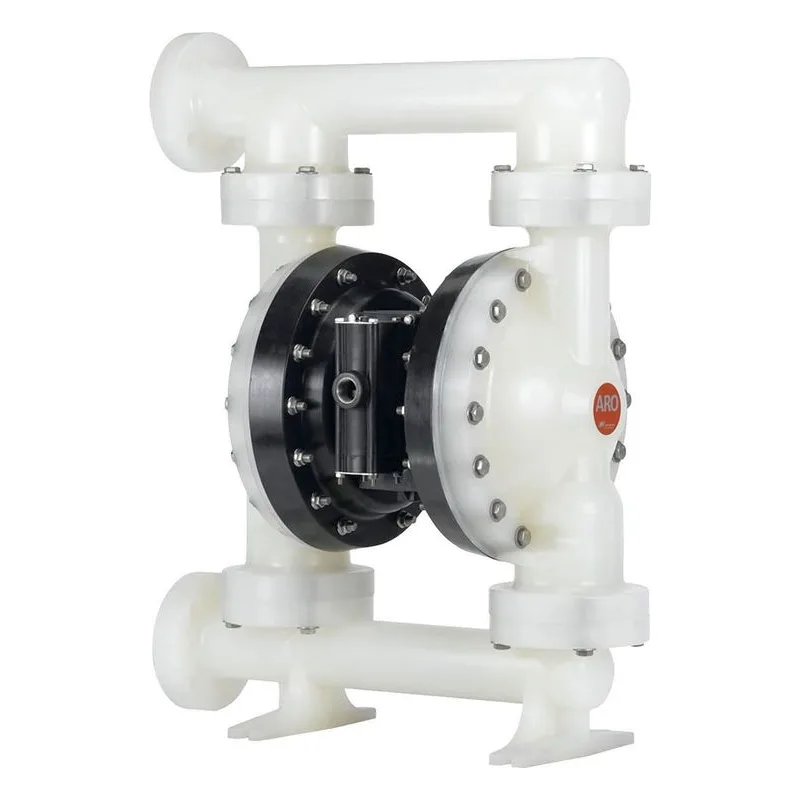

Image shown may not be actual product
PE20E-FNS-KTT-AF0
ARO PE20E-FNS-KTT-AF0 2" Metallic Expert Air Operated, Double Diaphragm Pump. 2" A.N.S.I / DIN Flange Connection Port with a 172 GPM Maximum Flow Rate and 1.4 Gallons displacement per cycle. Constructed with a PVDF Seat, PTFE Balls and a PTFE / Santoprene Diaphragm capable of handling temperatures from 40° to 225° F. 1/4" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
$13,200.06
- Best Price Guarantee!
- 2639PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PE20E-FNS-KTT-AF0
ARO PE20E-FNS-KTT-AF0 2" Metallic Expert Air Operated, Double Diaphragm Pump. 2" A.N.S.I / DIN Flange Connection Port with a 172 GPM Maximum Flow Rate and 1.4 Gallons displacement per cycle. Constructed with a PVDF Seat, PTFE Balls and a PTFE / Santoprene Diaphragm capable of handling temperatures from 40° to 225° F. 1/4" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
| Air Inlet | 3/4 - 14 NPTF - 1 |
| Ball Material | PTFE |
| Build | Air Operated, Double Diaphragm |
| Connections / Discharge (Inches) | 2" A.N.S.I / DIN Flange |
| Connection Size | 2" |
| Connection Type | ANSI / DIN Flange |
| Diaphragm | PTFE / Santoprene |
| Discharge Volume Per Cycle | 1.4 Gallons |
| Inlet Pressure (PSI) | 120 PSIG (8.3 BAR) |
| Material | Metallic |
| Maximum Flow (GPH) | 10320 GPH |
| Maximum Working Pressure (PSIG) | 120 PSI |
| Solids (Inches) | 1/4" |
| Temperature Range | 40° to 225° F |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | PVDF Seat |
2” Non-Metallic Expert Information
| Features & Benefits |
|---|
| 2” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 184 (696) Displacement per cycle Gallons (Liters): 1.4 (5.3) Air Inlet (Female): 3/4 - 14 N.P.T. Fluid Inlet: 2” A.N.S.I./DIN flange (side) Fluid Outlet: 2” A.N.S.I./DIN flange (side) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/4” (6.4) Weight lbs (kg): Polypropylene 85.3 (38.7) PVDF 110.9 (50.3) Maximum dry suction lift ft (m): 14 (4.2) Sound Level: PSI Cycles / Min db(A) 70 60 85.0 |
Categories
Chemical Delivery / Transfer
2576 productsCommercial
3225 productsEffluent / Dosing Systems
2104 productsFiltration Systems
2104 productsIndustrial
3256 productsPaints & Dyes
2104 productsPharmaceutical / Chemical
2104 productsRecirculation
2110 productsTank Filling
2104 productsWastewater / Trash / Sewage
2104 productsWater Treatment
2104 products
| Type | Title | Link | |
|---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
Electronic Interface Brochure | View | ||
Expert and Compact Air Operated Diaphragm Pumps Brochure | View | ||
PD20E FES PXX 2" Non Metallic Datasheet | View | ||
PD20P FXS PE20P FXS 2" Non Metallic Datasheet | View | ||
PD20E 2" Non Metallic Manual | View | ||
PD20P PE20P 2" Non Metallic Manual | View | ||
ARO PX20X 2 Inch Metallic Diaphragm Pump IOM Manual | View | ||
Repair Parts for PE20E-FNS-KTT-AF0
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637421 | Ships in 1 Week | $149.80 | ||
| 637309-KTT | Ships in | Call for pricing | ||
| 637309-TT | Ships in | $1,326.30 | ||
