PD20P-FPS-PTT

0 reviews

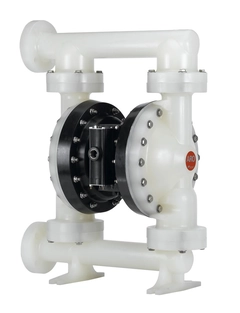

ARO PD20P-FPS-PTT 2" Non-Metallic Expert Series AODD Diaphragm Pump. Polypropylene / Vinyl Ester Center Body, Polypropylene Fluid Caps & Manifold, Stainless Steel Hardware. 184 GPM (696 LPM) Maximum Flow Rate, Polypropylene Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 2" ANSI / DIN Hybrid Side Flange Connection. An Ingersoll Rand Business.

$5,834.70

Best Price Guarantee!
1166PumpPoints

Item: PD20P-FPS-PTT

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD20P-FPS-PTT

Air Inlet	3/4 - 14 NPT
CCN Number	20051082
Connection Size	2"
Connection Type	2" ANSI / DIN Hybrid Side Flange
Diaphragm	PTFE / Santoprene
Discharge Volume Per Cycle	1.4 Gal (5.3 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Polypropylene Fluid Caps & Manifold
Material	Polypropylene / Vinyl Ester Center Body
Maximum Flow (GPM)	184 GPM (696 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	19.5 Feet (5.9m)
Metal Parts	Stainless Steel Hardware
Model Series	2” Non-Metallic Expert Series
Quick Specs	2 IN EXP NON METALLIC DIAPH PUMP
Solids (Inches)	1/4" (6.4mm)
Temperature Range	40° to 175° F (4° to 79° C)
Type	Standard Pump
Valve Balls	PTFE
Valve / Seat / O-Ring	Polypropylene

2” Non-Metallic Expert Information

Features & Benefits
2” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 184 (696) Displacement per cycle Gallons (Liters): 1.4 (5.3) Air Inlet (Female): 3/4 - 14 N.P.T. Fluid Inlet: 2” A.N.S.I./DIN flange (side) Fluid Outlet: 2” A.N.S.I./DIN flange (side) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/4” (6.4) Weight lbs (kg): Polypropylene 85.3 (38.7) PVDF 110.9 (50.3) Maximum dry suction lift ft (m): 14 (4.2) Sound Level: PSI Cycles / Min db(A) 70 60 85.0

Features & Benefits

2” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 184 (696)
Displacement per cycle Gallons (Liters): 1.4 (5.3)
Air Inlet (Female): 3/4 - 14 N.P.T.
Fluid Inlet: 2” A.N.S.I./DIN flange (side)
Fluid Outlet: 2” A.N.S.I./DIN flange (side)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Weight lbs (kg): Polypropylene 85.3 (38.7)
PVDF 110.9 (50.3)
Maximum dry suction lift ft (m): 14 (4.2)
Sound Level:
PSI Cycles / Min db(A)
70 60 85.0
