PF20C-BCS-SAA

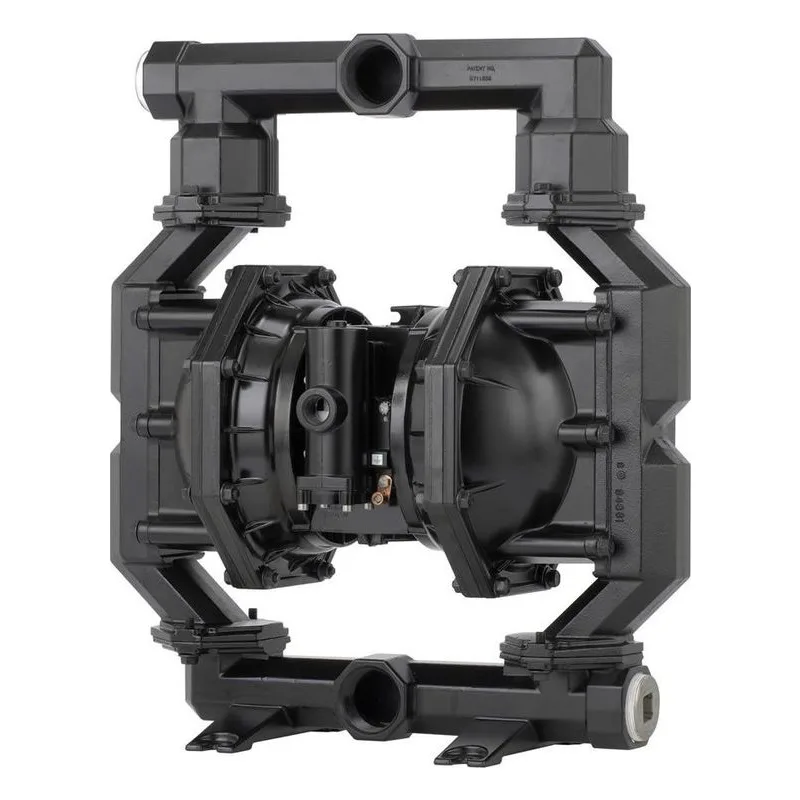

Image shown may not be actual product

PF20C-BCS-SAA

0 reviews

ARO PF20C-BCS-SAA 2" Metallic Flap Valve AODD Diaphragm Pump. Cast Iron Center Section, Cast Iron Fluid Caps & Manifold, Stainless Steel Hardware. 172 GPM (651 LPM) Maximum Flow Rate, Stainless Steel Seats, EPR Flap, Santoprene Diaphragm, Rp 2 (2 - 11 BSP parallel) Connection. An Ingersoll Rand Business.

Call for Pricing

Best Price Guarantee!

Item: PF20C-BCS-SAA

Overview
Series Info
Reviews
Literature/Manuals

PF20C-BCS-SAA

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	99608952
Connection Size	2"
Connection Type	Rp 2 (2 - 11 BSP parallel)
Diaphragm	Santoprene
Discharge Volume Per Cycle	1.4 Gal (5.3 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Cast Iron Fluid Caps & Manifold
Material	Cast Iron Center Section
Maximum Flow (GPM)	172 GPM (651 LPM)

Metal Parts	Stainless Steel Hardware
Model Series	2” Metallic Flap Valve
Quick Specs	2 IN EXP METALLIC FLAP VALVE DIAPH PUMP
Solids (Inches)	2" (51mm) Semi-Solids
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	Flap Valve Pump
Valve Balls	EPR (Flap)
Valve / Seat / O-Ring	Stainless Steel

2” Metallic Flap Valve Information

Features & Benefits
2” Flap Valve Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 172 (651) Displacement per cycle: 1.4 (5.3) @ 100 psi Gallons (Liters) Air Inlet (Female): 3/4 - 14 N.P.T.F.-1 Fluid Inlet/Outlet (Female): PF20X-AXX-XXX-B 2 - 11-1/2 N.P.T.F.-1 PF20X-BXX-XXX-B Rp 2 (2 - 11 BSP parallel) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 2” (51) Semi-solid Maximum dry suction lift ft (m): 14 (4.2) Weight lbs (kg): PF20X-XAX-SXX-B 74 (34) PF20X-XCX-SXX-B 161 (73) PF20X-XSX-SXX-B 188 (85) Sound Level: PSI Cycles / Min db(A) 70 60 85.0

Features & Benefits

2” Flap Valve Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female):
PF20X-AXX-XXX-B 2 - 11-1/2 N.P.T.F.-1
PF20X-BXX-XXX-B Rp 2 (2 - 11 BSP parallel)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 2” (51) Semi-solid
Maximum dry suction lift ft (m): 14 (4.2)
Weight lbs (kg): PF20X-XAX-SXX-B 74 (34)
PF20X-XCX-SXX-B 161 (73)
PF20X-XSX-SXX-B 188 (85)
Sound Level:
PSI Cycles / Min db(A)
70 60 85.0

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PF20R PF20Y 2" Metallic Flap Valve Datasheet		View
	PF20A PF20S 2" Metallic Flap Valve Datasheet		View
	PF20X 2" Metallic Flap Valve Manual		View
	PF20R PF20Y 2 Metallic Flap Valve Manual		View
