670231-A

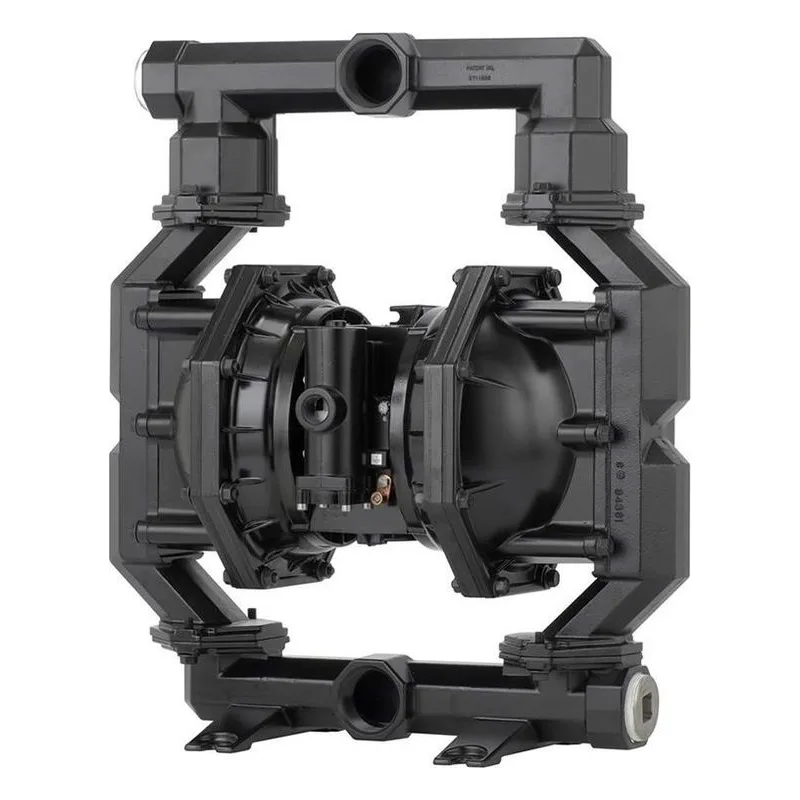

Image shown may not be actual product

670231-A

0 reviews

ARO 670231-A 2" Special Metallic Flap Valve AODD Diaphragm Pump. Aluminum Center Body, Fluid Caps & Manifold, Stainless Steel Hardware. Stainless Steel Seats, Nitrile Balls & Diaphragms, 2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.

$3,415.50

Best Price Guarantee!
682PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 670231-A

Overview
Series Info
Reviews
Literature/Manuals

670231-A

Air Inlet	3/4 - 14 NPTF - 1
Connection Size	2"
Connection Type	2 - 11-1/2 NPTF - 1
Diaphragm	Nitrile
Liquid End Configuration	Aluminum Fluid Caps/Manifold
Material	Aluminum Center Body
Metal Parts	Stainless Steel Hardware

Quick Specs	2" FLAP VALVE DIAPHRAGM PUMP
Solids (Inches)	2" (50mm) Semi-Solids
Temperature Range	10° to 180° F (-12° to 82° C)
Type	Flap Valve
Valve Balls	Nitrile Flap
Valve / Seat / O-Ring	Stainless Steel

2” Metallic Flap Valve Information

Features & Benefits
2” Flap Valve Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 172 (651) Displacement per cycle: 1.4 (5.3) @ 100 psi Gallons (Liters) Air Inlet (Female): 3/4 - 14 N.P.T.F.-1 Fluid Inlet/Outlet (Female): PF20X-AXX-XXX-B 2 - 11-1/2 N.P.T.F.-1 PF20X-BXX-XXX-B Rp 2 (2 - 11 BSP parallel) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 2” (51) Semi-solid Maximum dry suction lift ft (m): 14 (4.2) Weight lbs (kg): PF20X-XAX-SXX-B 74 (34) PF20X-XCX-SXX-B 161 (73) PF20X-XSX-SXX-B 188 (85) Sound Level: PSI Cycles / Min db(A) 70 60 85.0

Features & Benefits

2” Flap Valve Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female):
PF20X-AXX-XXX-B 2 - 11-1/2 N.P.T.F.-1
PF20X-BXX-XXX-B Rp 2 (2 - 11 BSP parallel)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 2” (51) Semi-solid
Maximum dry suction lift ft (m): 14 (4.2)
Weight lbs (kg): PF20X-XAX-SXX-B 74 (34)
PF20X-XCX-SXX-B 161 (73)
PF20X-XSX-SXX-B 188 (85)
Sound Level:
PSI Cycles / Min db(A)
70 60 85.0

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PF20R PF20Y 2" Metallic Flap Valve Datasheet		View
	PF20A PF20S 2" Metallic Flap Valve Datasheet		View
	PF20X 2" Metallic Flap Valve Manual		View
	PF20R PF20Y 2 Metallic Flap Valve Manual		View
	Special Metallic Flap Vlave Pump 670231 A Operator's Manual (2022)		View
