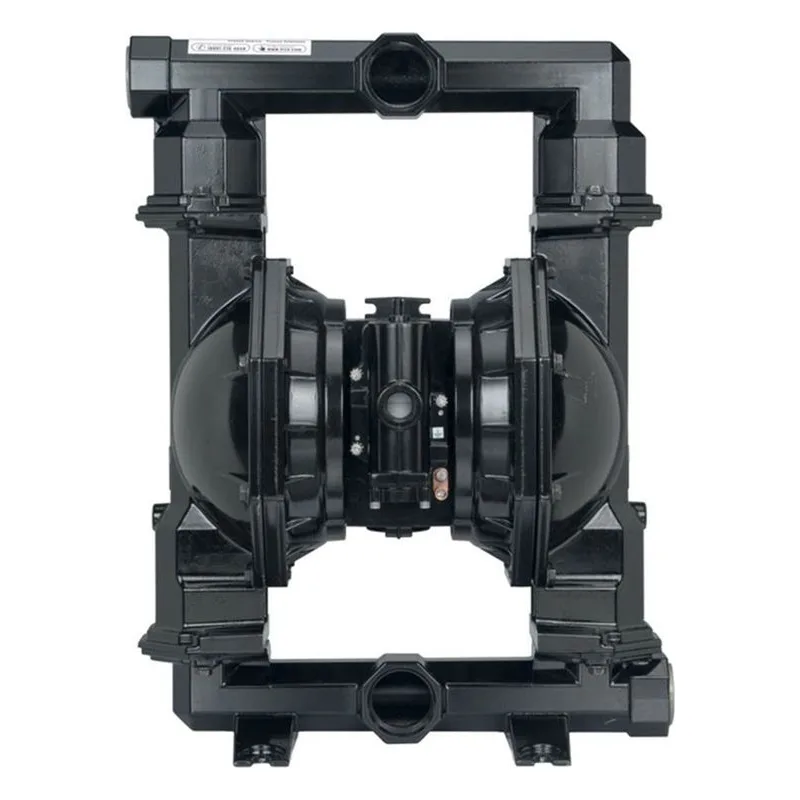

ARO PE20A-FSS-STT-BHM 2" Metallic Expert Series AODD Diaphragm Pump120 psig (8.3 bar). Aluminum Air Motor/Cap, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. Stainless Steel Seats, PTFE Balls, PTFE Diaphragm, 2" ANSI / DIN Hybrid Side Flange Connection. An Ingersoll Rand Business.

$10,429.79

Best Price Guarantee!
2085PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PE20A-FSS-STT-BHM

Overview
Series Info
Reviews
Literature/Manuals

PE20A-FSS-STT-BHM

Air Inlet	3/4 - 14 NPTF - 1
Connection Size	2"
Connection Type	2" ANSI / DIN Hybrid Side Flange
Diaphragm	PTFE
Discharge Volume Per Cycle	1.4 Gal (5.3 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Stainless Steel Fluid Caps & Manifold
Material	Aluminum Air Motor/Cap
Maximum Flow (GPM)	172 GPM (651 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)
Max Suction Lift	14 Feet (4.2m)

Metal Parts	Stainless Steel Hardware
Options	Leak Detection ATEX / IECEx / NEC / CEC
Product Notes	Solenoid 24 VDC ATEX/IECEx
Quick Specs	2" Diaphragm Pump
Solids (Inches)	1/4" (6.4mm)
Temperature Range	40° to 225° F (4° to 107° C)
Type	Electronic Interface
Valve Balls	PTFE
Valve / Seat / O-Ring	Stainless Steel

2” Metallic Expert Information

Features & Benefits
2” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 172 (651) Displacement per cycle: 1.4 (5.3) @ 100 psi Gallons (Liters) Air Inlet (Female): 3/4 - 14 N.P.T.F.-1 Fluid Inlet/Outlet (Female): PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1 PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel) PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/4” (6.4) Maximum dry suction lift ft (m): 14 (4.2)

Features & Benefits

2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female): PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Maximum dry suction lift ft (m): 14 (4.2)
