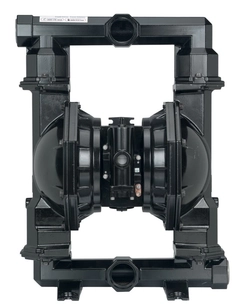

Image shown may not be actual product

PD20A-ACS-GGG-B

0 reviews

ARO PD20A-ACS-GGG-B 2" Metallic Expert Series AODD Diaphragm Pump. Aluminum Air Motor/Cap, Cast Iron Fluid Caps & Manifold, Stainless Steel Hardware. 172 GPM (651 LPM) Maximum Flow Rate, Nitrile Seats, Nitrile Balls & Diaphragm, 2 - 11-1/2 NPTF - 1 Connection. An Ingersoll Rand Business.

$3,178.94

Best Price Guarantee!
635PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD20A-ACS-GGG-B

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD20A-ACS-GGG-B

Air Inlet	3/4 - 14 NPTF - 1
CCN Number	15222235
Connection Size	2"
Connection Type	2 - 11-1/2 NPTF - 1
Diaphragm	Nitrile
Discharge Volume Per Cycle	1.4 Gal (5.3 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Cast Iron Fluid Caps & Manifold
Material	Aluminum Air Motor/Cap
Maximum Flow (GPM)	172 GPM (651 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	14 Feet (4.2m)
Metal Parts	Stainless Steel Hardware
Model Series	2” Metallic Expert Series
Quick Specs	2 IN EXP METALLIC DIAPH PUMP
Solids (Inches)	1/4" (6.4mm)
Temperature Range	10° to 180° F (-12° to 82° C)
Type	Standard Pump
Valve Balls	Nitrile
Valve / Seat / O-Ring	Nitrile

2” Metallic Expert Information

Features & Benefits
2” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 172 (651) Displacement per cycle: 1.4 (5.3) @ 100 psi Gallons (Liters) Air Inlet (Female): 3/4 - 14 N.P.T.F.-1 Fluid Inlet/Outlet (Female): PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1 PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel) PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/4” (6.4) Maximum dry suction lift ft (m): 14 (4.2)

Features & Benefits

2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 172 (651)
Displacement per cycle: 1.4 (5.3)
@ 100 psi Gallons (Liters)
Air Inlet (Female): 3/4 - 14 N.P.T.F.-1
Fluid Inlet/Outlet (Female): PX20X-AXX-XXX-B( ) 2 - 11-1/2 N.P.T.F.-1
PX20X-BXX-XXX-B( ) Rp 2 (2 - 11 BSP parallel)
PX20X-FXX-XXX-B( ) 2” A.N.S.I./DIN Flange
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Maximum dry suction lift ft (m): 14 (4.2)
