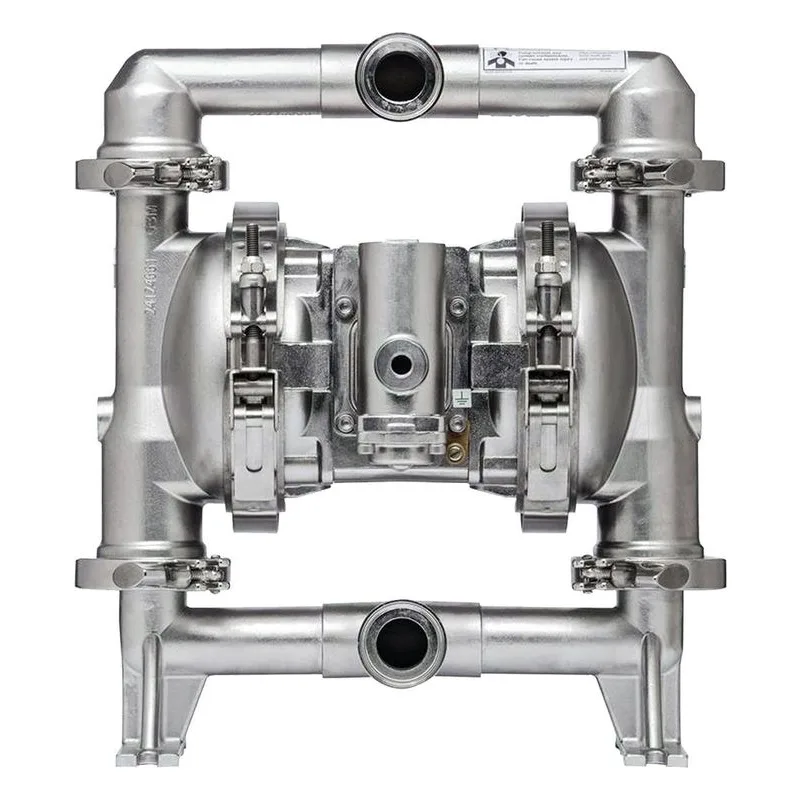

Image shown may not be actual product
SD10R-CSS-CCC-BD0
ARO SD10R-CSS-CCC-BD0 1" Metallic Expert Air Operated, Double Diaphragm Pump Pump. 1" Sanitary Flange Connection Port with a 54 GPM Maximum Flow Rate and 0.258 Gallons displacement per cycle. Constructed with a Hytrel Seat, Hytrel Balls and a Hytrel Diaphragm capable of handling temperatures from -20° to 180° F. 1/8" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
- Pump Catalog Price
Retail Price: $3,509.19How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
- Repair Parts
SD10R-CSS-CCC-BD0
ARO SD10R-CSS-CCC-BD0 1" Metallic Expert Air Operated, Double Diaphragm Pump Pump. 1" Sanitary Flange Connection Port with a 54 GPM Maximum Flow Rate and 0.258 Gallons displacement per cycle. Constructed with a Hytrel Seat, Hytrel Balls and a Hytrel Diaphragm capable of handling temperatures from -20° to 180° F. 1/8" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
| Ball Material | Hytrel |
| Build | Air Operated, Double Diaphragm Pump |
| Connections / Discharge (Inches) | 1" Sanitary Flange |
| Connection Size | 1" |
| Connection Type | Sanitary Flange |
| Diaphragm | Hytrel |
| Discharge Volume Per Cycle | 0.258 Gallons |
| Inlet Pressure (PSI) | 120 PSIG (8.3 BAR) |
| Material | Metallic |
| Maximum Flow (GPH) | 3240 GPH |
| Maximum Working Pressure (PSIG) | 120 PSI |
| Max Suction Lift | 31.4 ft Dry Suction Lift |
| Product Notes | Solenoid 24VDC |
| Solids (Inches) | 1/8" |
| Temperature Range | -20° to 180° F |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | Hytrel Seat |
| Type | Title | Link | |
|---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
Expert and Compact Air Operated Diaphragm Pumps Brochure | View | ||
PM10X 1" Ported Sanitary Transfer Datasheet | View | ||
ARO SD10X 1 Inch Metallic Sanitary Diaphragm Pump Data Sheet | View | ||
PM10X 1" Ported Sanitary Transfer Manual | View | ||
ARO SD10X 1 Inch Metallic Sanitary Diaphragm Pump IOM Manual | View | ||
Repair Parts for SD10R-CSS-CCC-BD0
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637496-1 | Ships in | $1,070.80 | ||
| 637495 | Ships in | $237.30 | ||
| 637493-CC | Ships in | $478.40 | ||
