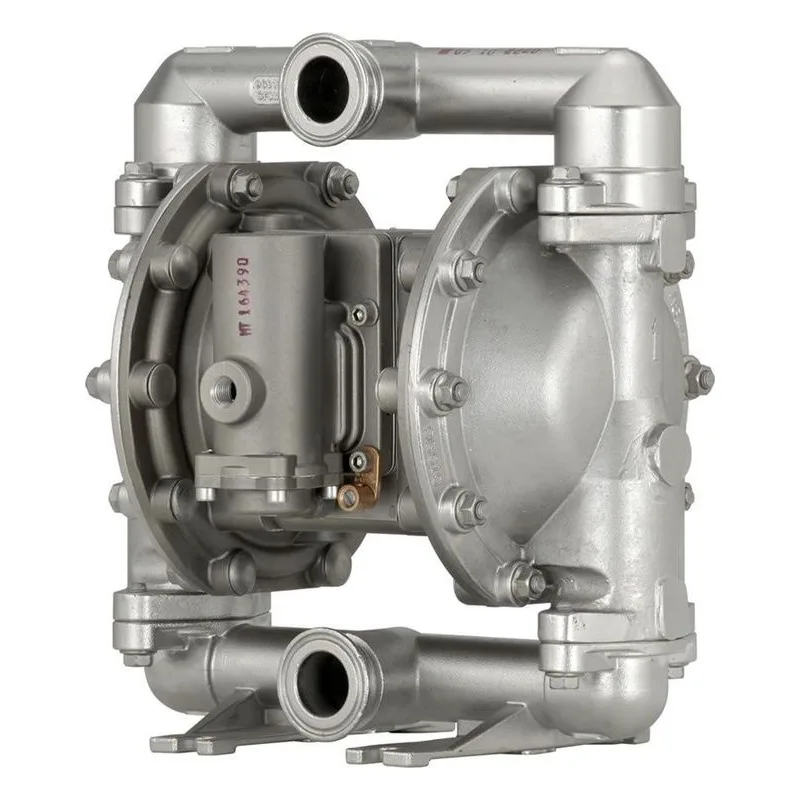

ARO PM10A-CSS-AAA-A02 PM Series 1" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 52.2 GPM (197.6 LPM) Maximum Flow Rate, Santoprene Seats, Balls & Diaphragm, 1-1/2" Sanitary Flange Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM10A-CSS-MMM-A02.
ARO PM10A-CSS-AAA-A02 PM Series 1" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 52.2 GPM (197.6 LPM) Maximum Flow Rate, Santoprene Seats, Balls & Diaphragm, 1-1/2" Sanitary Flange Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM10A-CSS-MMM-A02.
Air Inlet | 1/4 - 18 NPT |
CCN Number | 15207897 |
Connection Size | 1" |
Connection Type | 1-1/2" Sanitary Flange |
Diaphragm | Santoprene |
Discharge Volume Per Cycle | 0.232 Gal (0.88 lit) |
Inlet Pressure (PSI) | 120 psig (8.3 bar) |
Liquid End Configuration | Stainless Steel Fluid Caps & Manifold |
Material | Aluminum Center Body |
Maximum Flow (GPM) | 52.2 GPM (197.6 LPM) |
Maximum Working Pressure (PSIG) | 120 psi (8.3 bar) |
Metal Parts | Stainless Steel Hardware |
Model Number | PM10A-CSS-MMM-A02 |
Model Series | 1" Ported Sanitary Transfer |
Options | No Option |
Product Notes | Standard valve Block (No Solenoid) |
Quick Specs | 1 IN EXP DIAPH PUMP (PSEUDO) |
Solids (Inches) | 1/8" (3.2mm) |
Temperature Range | -40° to 225° F (-40° to 107° C) |
Type | FDA Compliant Sanitary Pump |
Valve Balls | Santoprene |
Valve / Seat / O-Ring | Santoprene |
Type | Title | Link | |
---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
PM10X 1" Ported Sanitary Transfer Datasheet | View | ||
PM10A-CSS-AAA-A02 Datasheet | View | ||
PM10X 1" Ported Sanitary Transfer Manual | View | ||
PM10X 1" Sanitary Manual | View | ||
PM10A-CSS-AAA-A02 ARO Pump Repair Parts Exploded View, Fluid Section | View | ||
PM10A-CSS-AAA-A02 ARO Pump Repair Parts Exploded View, Air Section | View |
