670025

Image shown may not be actual product

670025

0 reviews

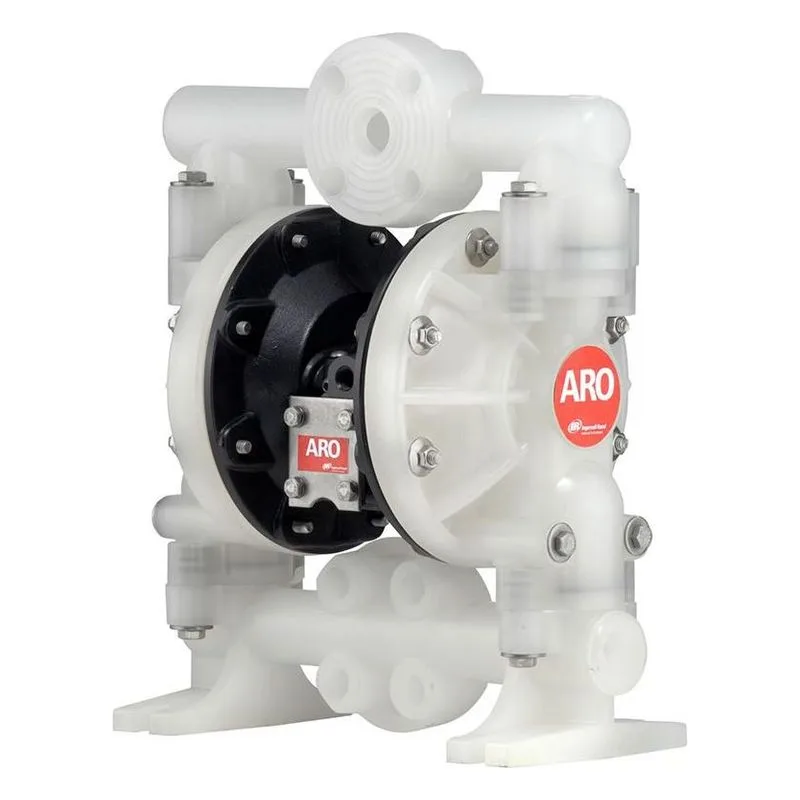

ARO 670025 1" AODD Diaphragm Pump, An Ingersoll Rand Business.

$1,750.50

Best Price Guarantee!
349PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 670025

Overview
Series Info
Reviews
Literature/Manuals

670025

ARO 670025 1" AODD Diaphragm Pump, An Ingersoll Rand Business.

CCN Number	670025
Connection Size	1"
Quick Specs	1-IN DIA, CUSTOM

Type	Standard Pump

1” Non-Metallic Pro Information

Features & Benefits
1” Non-Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 47-g.p.m. (177.9-l.p.m.) Displacement per cycle: 0.17-Gallons (0.64-Liters) Air Inlet: (Female) 1/4 - 18 N.P.T. Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1 - 11 BSP, parallel) 1” ANSI/DIN Flange Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1 - 11 BSP, parallel) 1” ANSI/DIN Flange Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 1/8-inch (3.2-mm) Weight: lbs (kg) 6661A3-, 1AF-, 1AJ-, 1AL- 20.3 (9.2) 6661B3-, 1BF-, 1BJ-, 1BL- 28.8 (13.1) Maximum dry suction lift: ft (m) 15 (4.6)

Features & Benefits

1” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 47-g.p.m. (177.9-l.p.m.)
Displacement per cycle: 0.17-Gallons (0.64-Liters)
Air Inlet: (Female) 1/4 - 18 N.P.T.
Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1 - 11 BSP, parallel)
1” ANSI/DIN Flange
Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1 - 11 BSP, parallel)
1” ANSI/DIN Flange
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 1/8-inch (3.2-mm)
Weight: lbs (kg)
6661A3-, 1AF-, 1AJ-, 1AL- 20.3 (9.2)
6661B3-, 1BF-, 1BJ-, 1BL- 28.8 (13.1)
Maximum dry suction lift: ft (m) 15 (4.6)
