670227-A

Image shown may not be actual product

670227-A

0 reviews

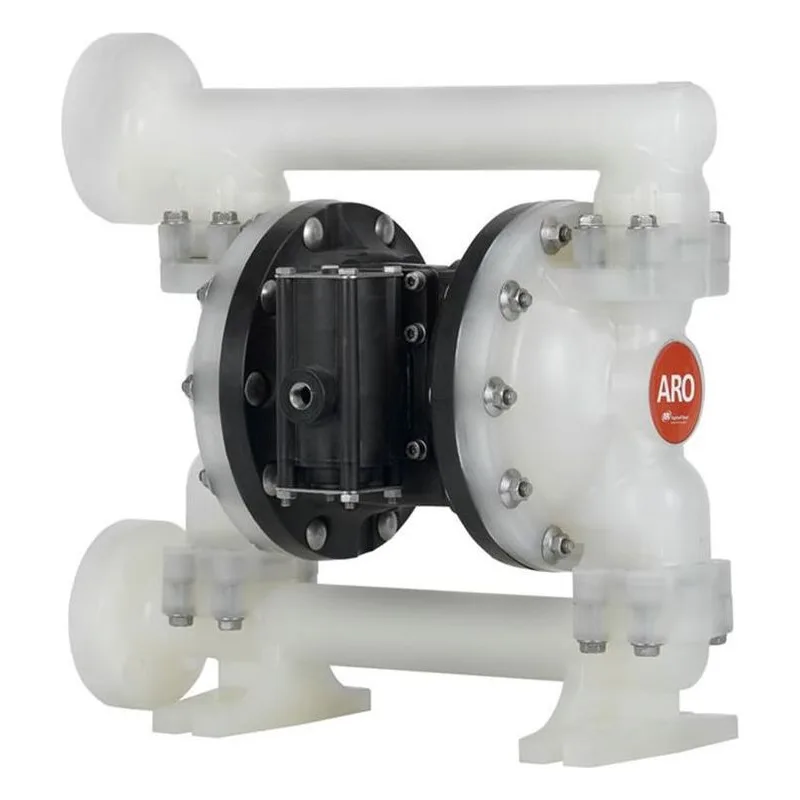

ARO 670227-A 1" Special Non-Metallic AODD Diaphragm Pump. Polypropylene Center Body, Seats, Fluid Caps & Manifold, Stainless Steel Hardware. PTFE Balls, PTFE / Santoprene Diaphragms, 1" ANSI / DIN Flange / End Connection. An Ingersoll Rand Business.

$1,499.42

Best Price Guarantee!
299PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 670227-A

Overview
Series Info
Reviews
Literature/Manuals

670227-A

Air Inlet	1/4 - 18 NPT
Connection Size	1"
Connection Type	1" ANSI / DIN Flange / End
Diaphragm	PTFE / Santoprene
Liquid End Configuration	Polypropylene Fluid Caps/Manifold
Material	Polypropylene Center Body
Metal Parts	Stainless Steel Hardware

Quick Specs	1" DIAPHRAGM PUMP (NON-METALLIC)
Solids (Inches)	1/8" (3.2mm)
Temperature Range	40° to 175° F (4° to 79° C)
Type	Specialty Pump
Valve Balls	PTFE
Valve / Seat / O-Ring	Polypropylene

1” Non-Metallic Expert Information

Features & Benefits
1” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 53 (200) Displacement per cycle Gallons (Liters): 0.226 (.86) Air Inlet (Female): 1/4 - 18 N.P.T. Fluid Inlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” A.N.S.I./DIN flange (side or center) Fluid Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” A.N.S.I./DIN flange (side or center) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in.(mm): 1/8” (3.2) Weight lbs (kg): Polypropylene, Threaded Port 19.35 (8.78) Polypropylene, Center Ported 19.59 (8.89) Polypropylene, Side Ported 19.87 (9.01) PVDF, Threaded Port 25.83 (11.72) PVDF, Center Ported 26.72 (12.12) PVDF, Side Ported 27.15 (12.32) Maximum dry suction lift ft(m) : 19 (5.7) Sound Level: PSI Cycles / Min db(A) 70 60 79.7

Features & Benefits

1” Non-Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 53 (200)
Displacement per cycle Gallons (Liters): 0.226 (.86)
Air Inlet (Female): 1/4 - 18 N.P.T.
Fluid Inlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP)
1” A.N.S.I./DIN flange (side or center)
Fluid Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP)
1” A.N.S.I./DIN flange (side or center)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in.(mm): 1/8” (3.2)
Weight lbs (kg): Polypropylene, Threaded Port 19.35 (8.78)
Polypropylene, Center Ported 19.59 (8.89)
Polypropylene, Side Ported 19.87 (9.01)
PVDF, Threaded Port 25.83 (11.72)
PVDF, Center Ported 26.72 (12.12)
PVDF, Side Ported 27.15 (12.32)
Maximum dry suction lift ft(m) : 19 (5.7)
Sound Level:
PSI Cycles / Min db(A)
70 60 79.7

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Electronic Interface Brochure		View
	Expert Seriess Brochure		View
	PD10P-XXS PE10P-XXS 1" Non Metallic Datasheet		View
	PE10P-XXS-XXX-A0S 1" Non Metallic Datasheet		View
	PD10P PE10P 1" Non Metallic Manual		View
	PE10P-XXX-XXX-A0S 1" Non Metallic Manual		View
	Special Non Metallic Pump 670227 A Operator's Manual (2022)		View
