67144

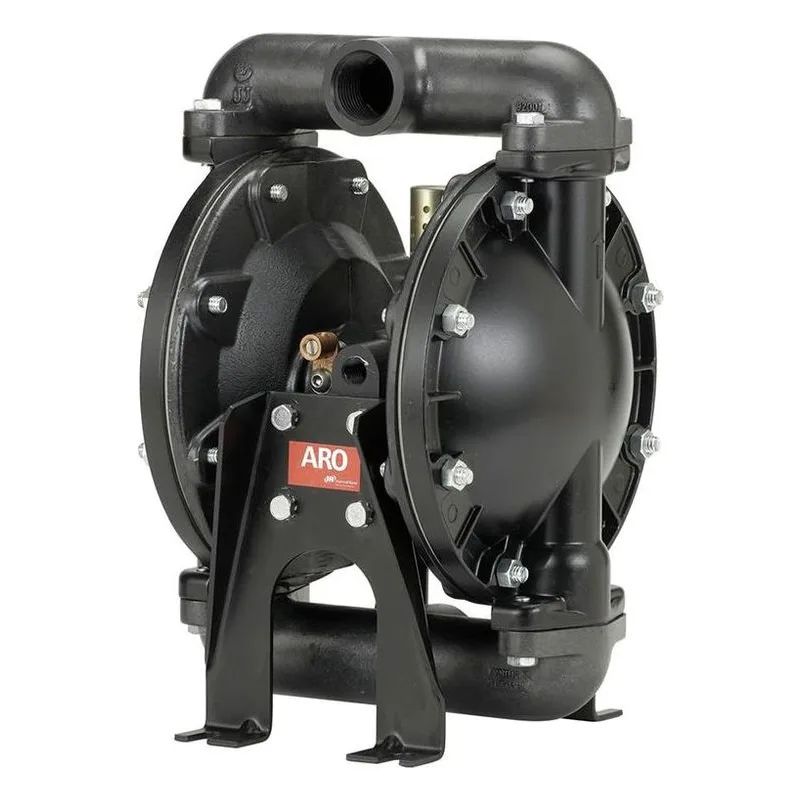

Image shown may not be actual product

67144

0 reviews

ARO 67144 1" Special Metallic AODD Diaphragm Pump. Aluminum Center Body, Fluid Caps & Manifold. PTFE Balls, Neoprene Diaphragms, 1" NPT/F Connection. An Ingersoll Rand Business.

$1,538.11

Best Price Guarantee!
307PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 67144

Overview
Series Info
Reviews
Literature/Manuals

67144

ARO 67144 1" Special Metallic AODD Diaphragm Pump. Aluminum Center Body, Fluid Caps & Manifold. PTFE Balls, Neoprene Diaphragms, 1" NPT/F Connection. An Ingersoll Rand Business.

Air Inlet	1/4" NPT/F
CCN Number	99711855
Connection Size	1"
Connection Type	1" NPT/F
Diaphragm	Neoprene
Liquid End Configuration	Aluminum Fluid Caps/Manifold
Material	Aluminum Center Body

Maximum Flow (GPM)	35 GPM (133 LPM)
Product Notes	Calcium Chloride Compatible
Quick Specs	DIAPHRAGM PUMP (CALCLOR)
Type	Specialty Pump
Valve Balls	PTFE

1” Metallic Pro Information

Features & Benefits
1” Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 35-g.p.m. (133-l.p.m.) Displacement per cycle: 0.16-Gallons (0.60-Liters) Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1 Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1-11 BSP parallel) Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1-11 BSP parallel) Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 1/8-in. (3.2-mm) Weight: lbs (kg) 666100-X-C (aluminum) 19 (8.6) 666101-X-C (stainless steel) 36 (16.3) 666102-X-C (cast iron) 31 (14.1) Note: Add 8-lbs (3.63-kg) for cast iron air motor section Maximum dry suction lift: ft (m) 20 (6.1)

Features & Benefits

1” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 35-g.p.m. (133-l.p.m.)
Displacement per cycle: 0.16-Gallons (0.60-Liters)
Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1
Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1-11 BSP parallel)
Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1-11 BSP parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 1/8-in. (3.2-mm)
Weight: lbs (kg)
666100-X-C (aluminum) 19 (8.6)
666101-X-C (stainless steel) 36 (16.3)
666102-X-C (cast iron) 31 (14.1)
Note: Add 8-lbs (3.63-kg) for cast iron air motor section
Maximum dry suction lift: ft (m) 20 (6.1)

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Pro Series Diaphragm Piston Pumps Brochure		View
	66610X-XXX-C 1" Metallic Datasheet		View
	66610X-XXX-C 1" Metallic Manual		View
	67144 & 613201-2-C Tire Fill System Operator's Manual (2022)		View
