47776308001

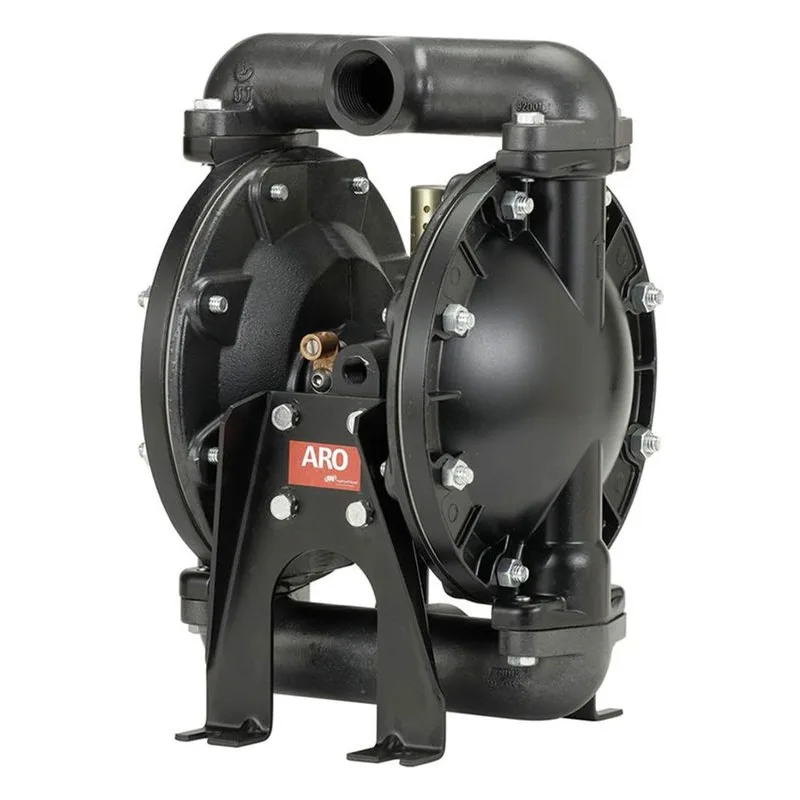

Image shown may not be actual product

47776308001

0 reviews

ARO 47776308001 1" Special Metallic AODD Diaphragm Pump.

$3,093.01

Best Price Guarantee!
618PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 47776308001

Overview
Series Info
Reviews
Literature/Manuals

47776308001

ARO 47776308001 1" Special Metallic AODD Diaphragm Pump.

CCN Number	47776308001
Connection Size	1"

Quick Specs

1" PUMP WITH CERTS

1” Metallic Pro Information

Features & Benefits
1” Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 35-g.p.m. (133-l.p.m.) Displacement per cycle: 0.16-Gallons (0.60-Liters) Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1 Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1-11 BSP parallel) Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1 Rp 1 (1-11 BSP parallel) Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 1/8-in. (3.2-mm) Weight: lbs (kg) 666100-X-C (aluminum) 19 (8.6) 666101-X-C (stainless steel) 36 (16.3) 666102-X-C (cast iron) 31 (14.1) Note: Add 8-lbs (3.63-kg) for cast iron air motor section Maximum dry suction lift: ft (m) 20 (6.1)

Features & Benefits

1” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 35-g.p.m. (133-l.p.m.)
Displacement per cycle: 0.16-Gallons (0.60-Liters)
Air Inlet: (Female) 1/4 - 18 N.P.T.F. - 1
Fluid Inlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1-11 BSP parallel)
Fluid Outlet: 1 - 11-1/2 N.P.T.F. - 1
Rp 1 (1-11 BSP parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 1/8-in. (3.2-mm)
Weight: lbs (kg)
666100-X-C (aluminum) 19 (8.6)
666101-X-C (stainless steel) 36 (16.3)
666102-X-C (cast iron) 31 (14.1)
Note: Add 8-lbs (3.63-kg) for cast iron air motor section
Maximum dry suction lift: ft (m) 20 (6.1)
