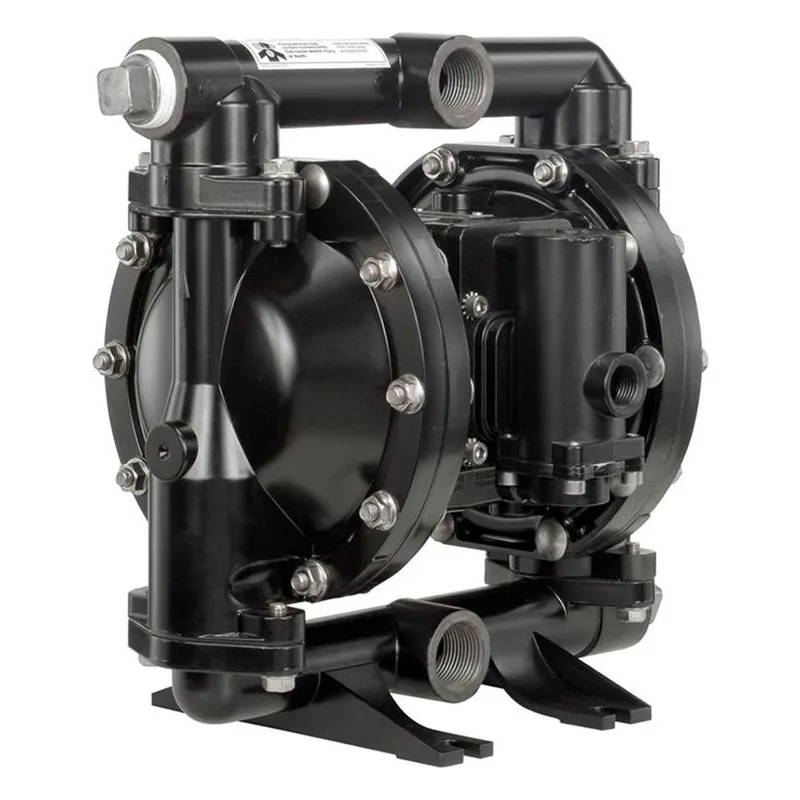

Image shown may not be actual product
PD10S-FHS-LTT
ARO PD10S-FHS-LTT 1" Metallic Expert Series AODD Diaphragm Pump. Stainless Steel Center Body, Hastelloy-C Fluid Caps & Manifold, Stainless Steel Hardware. Hastelloy-C Seats, PTFE Balls, PTFE Diaphragm, 1" ANSI / DIN Flange (Raised Face) Connection. An Ingersoll Rand Business.
$13,467.04
- Best Price Guarantee!
- 2693PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
PD10S-FHS-LTT
ARO PD10S-FHS-LTT 1" Metallic Expert Series AODD Diaphragm Pump. Stainless Steel Center Body, Hastelloy-C Fluid Caps & Manifold, Stainless Steel Hardware. Hastelloy-C Seats, PTFE Balls, PTFE Diaphragm, 1" ANSI / DIN Flange (Raised Face) Connection. An Ingersoll Rand Business.
| Air Inlet | 1/4 - 18 NPT |
| Connection Size | 1" |
| Connection Type | 1" ANSI / DIN Flange (Raised Face) |
| Diaphragm | PTFE |
| Discharge Volume Per Cycle | 0.232 gal. (0.88 lit.) |
| Inlet Pressure (PSI) | 120 psig (8.3 bar) |
| Liquid End Configuration | Hastelloy-C Fluid Caps & Manifold |
| Material | Stainless Steel Center Body |
| Maximum Flow (GPM) | 52.2 GPM (197.6 LPM) |
| Maximum Working Pressure (PSIG) | 120 psi (8.3 bar) |
| Max Suction Lift | 19 Feet (5.7m) |
| Metal Parts | Stainless Steel Hardware |
| Quick Specs | 1" METAL D.P. |
| Solids (Inches) | 1/8" |
| Temperature Range | 40° to 225° F (4° to 107° C) |
| Type | Standard Pump |
| Valve Balls | PTFE |
| Valve / Seat / O-Ring | Hastelloy-C |
1” Metallic Expert Information
| Features & Benefits |
|---|
| 1” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 52 (197) Displacement per cycle Gallons (Liters): 0.232 (.88) Air Inlet (Female): 1/4 - 18 N.P.T. Fluid Inlet: 1 - 11-1/2 N.P.T.F.-1, Rp1(1-11 BSP) Fluid Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/8” (3.3) Weight lbs (kg): PX10R-XAX-XXX 20.7 (9.4) PX10R-XCX-XXX 35.2 (16.0) PX10R-XHX-XXX 39.6 (18.0) PX10R-XSX-XXX 38.2 (17.3) Note: Add 4.65 lbs (2.11 kg) for aluminum air motor Add 11.09 lbs (5.03 kg) for stainless steel air motor Maximum dry suction lift ft(m): 19 (5.7) Sound Level: PSI Cycles / Min db(A) 70 60 79.7 |
