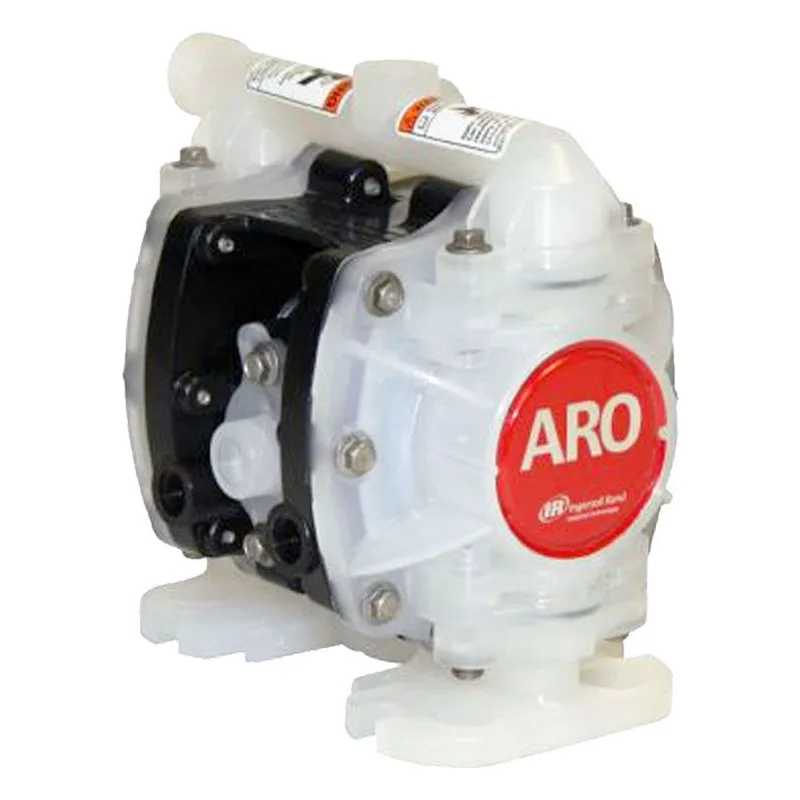

Image shown may not be actual product
PE01P-HPS-PTT-A0L
ARO PE01P-HPS-PTT-A0L 1/4" Non-Metallic Compact Diaphragm Pump with an Electronic Interface. Polypropylene Build with PTFE Dipahragms and Polypropylene Manifold. 1:1 Ratio, 5.3 GPM (Gallons Per Minute) Max Flow Rate, and 125 PSIG Maximum Pressure. 1/4” NPT Fluid Connections, 1/4" PTF SAE Short Air Inlet, and 1/16" (0.0625") Maximum Solids Handling. 15 ft. Maximum Dry Suction Lift and 40°F to 175°F Temperature Range. An Ingersoll Rand Product.
$1,594.08
- Best Price Guarantee!
- 318PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PE01P-HPS-PTT-A0L
ARO PE01P-HPS-PTT-A0L 1/4" Non-Metallic Compact Diaphragm Pump with an Electronic Interface. Polypropylene Build with PTFE Dipahragms and Polypropylene Manifold. 1:1 Ratio, 5.3 GPM (Gallons Per Minute) Max Flow Rate, and 125 PSIG Maximum Pressure. 1/4” NPT Fluid Connections, 1/4" PTF SAE Short Air Inlet, and 1/16" (0.0625") Maximum Solids Handling. 15 ft. Maximum Dry Suction Lift and 40°F to 175°F Temperature Range. An Ingersoll Rand Product.
| Air Inlet | Q - 1/4 - 18 PTF SAE Short |
| Build | Polypropylene Fluid Cap/Manifold |
| Configuration | Electronic Interface |
| Diaphragm | PTFE |
| Discharge NPT (Inches) | External Thread 3/4” - 14 NPTF/BSPT |
| Discharge Volume Per Cycle | 0.019 Gal (0.072 L) |
| Fluid Port | Hybrid 1/4” NPT / BSP |
| Includes | Integral Muffler |
| Inlet Pressure (PSI) | 125 PSIG (8.6 Bar) |
| Material | Polypropylene |
| Maximum Flow (GPM) | 5.3 GPM (20 lpm) |
| Maximum Working Pressure (PSIG) | 125 PSIG (8.6 Bar) |
| Max Suction Lift | 15 ft. (4.6m) |
| Product Notes | Leak Detection |
| Quick Specs | 1/4" NON-METALLIC PUMP |
| Solids (Inches) | 1/16" (1.6mm) |
| Special Configuration | Solenoid 120VAC |
| Suction NPT (Inches) | Internal Thread 1/4”NPTF/BSPT |
| Temperature Range | 40°F to 175°F (4°C to 79°C) |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | Polypropylene Seat / PTFE O-Ring |
1/4" Non-Metallic Compact Information
| Features & Benefits |
|---|
| 1/4” Non-Metallic Performance Specifications Max Flow gpm(lpm) 5.3 (20) Noise Level @ 70 psi, 60cpm 62.3 db(A) Max Solids in(mm) 1/16 (1.6) Air Consumption @100psi 6.1 scfm Max Air Inlet Pressure psi(bar) 125 (8.6) Min Air Inlet Pressure psi(bar) 10 (0.69) Max Outlet Pressure psi(bar) 125 (8.6) Weight lbs(kgs) P olypropylene 2.86 (1.30) PVDF 3.88 (1.76) Acetal 3.52 (1.60) Displacement / Cycle @ 125 psi .019 gal (.072 ltr) |
Categories
Chemical Delivery / Transfer
2576 productsCommercial
3225 productsEffluent / Dosing Systems
2104 productsFiltration Systems
2104 productsIndustrial
3256 productsPaints & Dyes
2104 productsPharmaceutical / Chemical
2104 productsRecirculation
2110 productsTank Filling
2104 productsWastewater / Trash / Sewage
2104 productsWater Treatment
2104 products
Repair Parts for PE01P-HPS-PTT-A0L
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 66073-1 | Ships in | $291.70 | ||
