PE01P-HKS-KTT-AB0

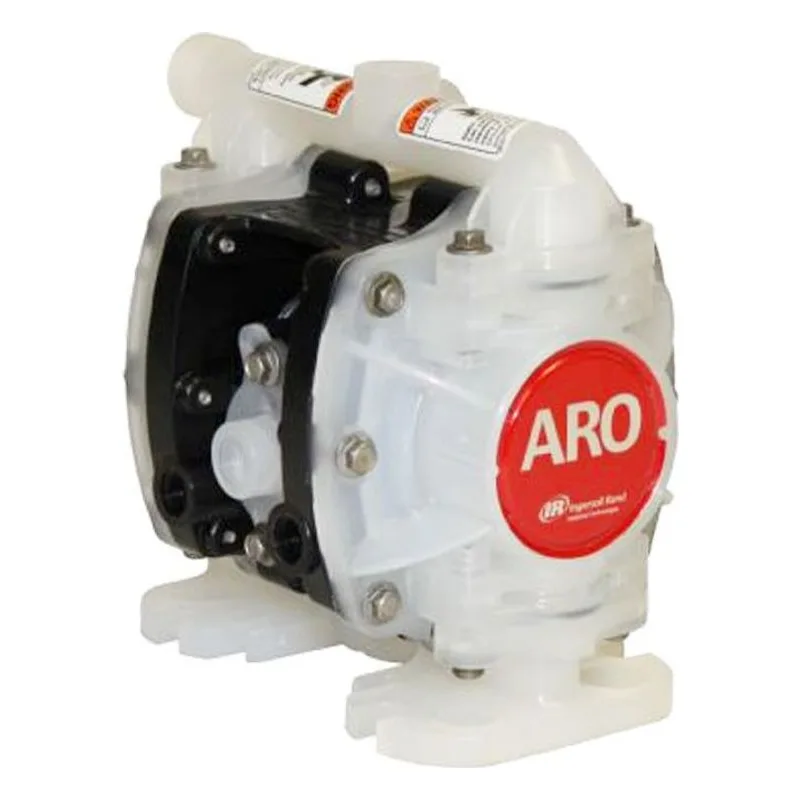

Image shown may not be actual product

PE01P-HKS-KTT-AB0

0 reviews

ARO PE01P-HKS-KTT-AB0 1/4" Non-Metallic Compact AODD Diaphragm Pump with Electronic Interface. Polypropylene Center Body, Kynar PVDF Fluid Caps & Manifold, Stainless Steel Hardware. Kynar PVDF Seats, PTFE Balls, PTFE Diaphragms, Hybrid: Internal Thread 1/4" NPTF/BSPT, External 3/4" - 14 NPTF/BSPT Connection. An Ingersoll Rand Business.

Pump Catalog Price
Retail Price: $845.01
How come you don't show price?
Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PE01P-HKS-KTT-AB0

Overview
Series Info
Reviews
Literature/Manuals

PE01P-HKS-KTT-AB0

Air Inlet	1/4 - 18 PTF SAE Short
Connection Size	1/4"
Connection Type	Hybrid: Internal Thread 1/4" NPTF/BSPT, External 3/4" - 14 NPTF/BSPT
Diaphragm	PTFE
Discharge Volume Per Cycle	0.019 Gal (0.072 Lit)
Inlet Pressure (PSI)	125 psig (8.6 bar)
Liquid End Configuration	Kynar PVDF Fluid Caps/Manifold
Material	Polypropylene Center Body
Maximum Flow (GPM)	5.3 GPM (20 LPM)
Maximum Working Pressure (PSIG)	125 psi (8.6 bar)
Max Suction Lift	15 Feet (4.6m)

Metal Parts	Stainless Steel Hardware
Options	No option
Product Notes	Solenoid 12 VDC, 24 VAC and 22 VAC
Quick Specs	ASM, 1/4" AODP RESTRICTED
Solids (Inches)	1/16" (1.6mm)
Temperature Range	40° to 200° F (4° to 93° C)
Type	Electronic Interface
Valve Balls	PTFE
Valve / Seat / O-Ring	Kynar PVDF

1/4" Non-Metallic Compact Information

Features & Benefits
1/4” Non-Metallic Performance Specifications Max Flow gpm(lpm) 5.3 (20) Noise Level @ 70 psi, 60cpm 62.3 db(A) Max Solids in(mm) 1/16 (1.6) Air Consumption @100psi 6.1 scfm Max Air Inlet Pressure psi(bar) 125 (8.6) Min Air Inlet Pressure psi(bar) 10 (0.69) Max Outlet Pressure psi(bar) 125 (8.6) Weight lbs(kgs) P olypropylene 2.86 (1.30) PVDF 3.88 (1.76) Acetal 3.52 (1.60) Displacement / Cycle @ 125 psi .019 gal (.072 ltr)

Features & Benefits

1/4” Non-Metallic Performance Specifications
Max Flow gpm(lpm) 5.3 (20)
Noise Level @ 70 psi, 60cpm 62.3 db(A)
Max Solids in(mm) 1/16 (1.6)
Air Consumption @100psi 6.1 scfm
Max Air Inlet Pressure psi(bar) 125 (8.6)
Min Air Inlet Pressure psi(bar) 10 (0.69)
Max Outlet Pressure psi(bar) 125 (8.6)
Weight lbs(kgs) P olypropylene 2.86 (1.30)
PVDF 3.88 (1.76)
Acetal 3.52 (1.60)
Displacement / Cycle @ 125 psi .019 gal (.072 ltr)
