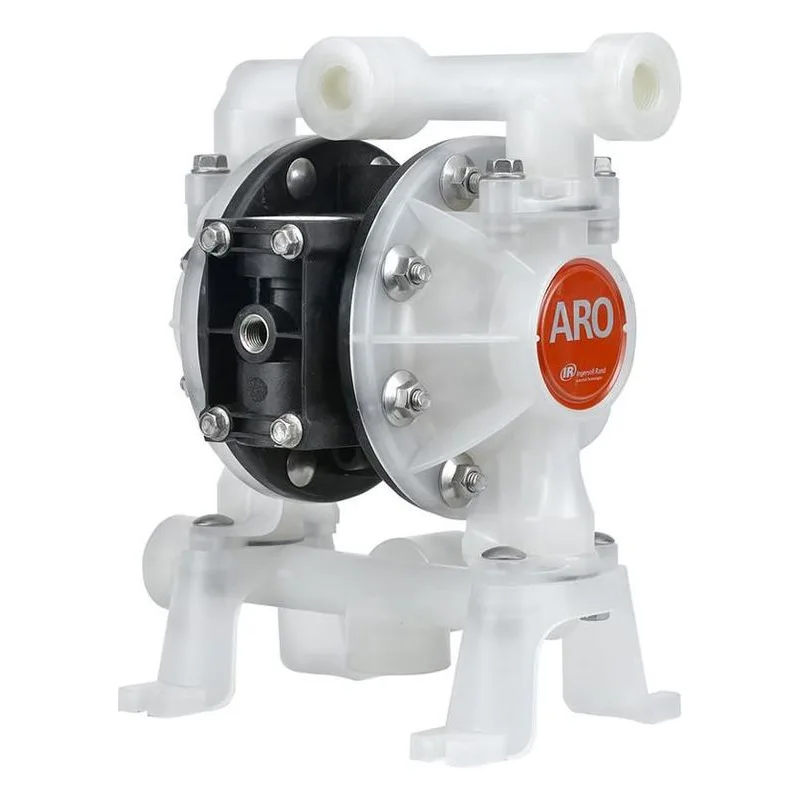

Image shown may not be actual product
670077
ARO 670077 1/2" Non-Metallic AODD Diaphragm Pump. Polypropylene Center Body, Seats, Fluid Caps & Manifold, Stainless Steel Hardware. Santoprene Balls & Diaphragms, 1/2 - 14 NPTF - 1 Connection. An Ingersoll Rand Business.
- Overview
- Series Info
- Reviews
- Literature/Manuals
670077
ARO 670077 1/2" Non-Metallic AODD Diaphragm Pump. Polypropylene Center Body, Seats, Fluid Caps & Manifold, Stainless Steel Hardware. Santoprene Balls & Diaphragms, 1/2 - 14 NPTF - 1 Connection. An Ingersoll Rand Business.
| Air Inlet | 1/4 - 18 NPTF SAE Short |
| CCN Number | 670077 |
| Connection Size | 1/2" |
| Connection Type | 1/2 - 14 NPTF - 1 |
| Diaphragm | Santoprene |
| Discharge Volume Per Cycle | 0.031 Gal (0.12 Lit) |
| Inlet Pressure (PSI) | 100 psig (6.9 bar) |
| Liquid End Configuration | Polypropylene Fluid Caps/Manifold |
| Material | Polypropylene Center Body |
| Maximum Flow (GPM) | 11.9 GPM (45.0 LPM) |
| Maximum Working Pressure (PSIG) | 100 psig (6.9 bar) |
| Metal Parts | Stainless Steel Hardware |
| Quick Specs | DIAP PUMP,1/2IN, CUSTOM |
| Solids (Inches) | 3/32" (2.4mm) |
| Temperature Range | 32° to 175° F (0° to 79° C) |
| Type | Standard Pump |
| Valve Balls | Santoprene |
| Valve / Seat / O-Ring | Polypropylene |
1/2” Non-Metallic Compact Information
| Features & Benefits |
|---|
| 1/2” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 14.4 (54.5) Displacement per cycle Gallons (Liters): 0.039 (.15) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. - 1 1/2 -14 BSP, parallel Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): PD05P-XDS-XXX-B 6.28 (2.85) PD05P-XES-XXX-B 6.67 (3.03) PD05P-XKS-XXX-B 6.78 (3.08) PD05P-XLS-XXX-B 7.24 (3.28) PD05P-XPS-XXX-B 5.21 (2.36) PD05P-XRS-XXX-B 5.44 (2.47) Note: PE05P-XXS-XXX-B0S, subtract 0.42 (0.19) Maximum dry suction lift ft (m): 15.0 (4.5) PTFE 13.5 (4.1) Santoprene Sound Level: PSI Cycles / Min db(A) |
