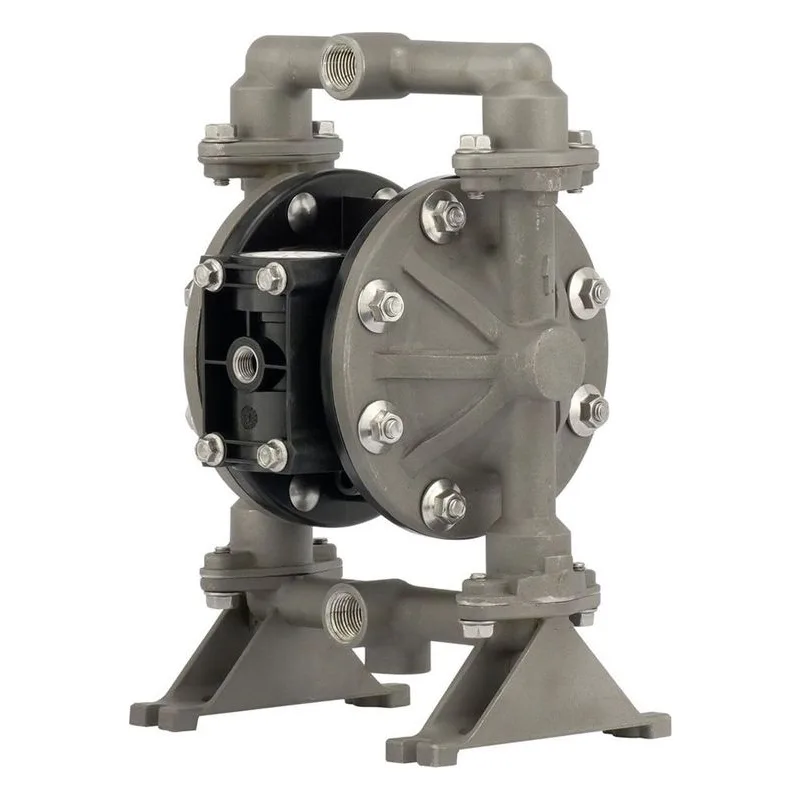

Image shown may not be actual product
PE05A-ASS-SST-BFR
ARO PE05A-ASS-SST-BFR 1/2" Metallic Expert Air Operated, Double Diaphragm Pump. 1/2" - 14 N.P.T.F. - 1 Connection Port with a 12.0 GPM Maximum Flow Rate and 0.039 Gallons displacement per cycle. Constructed with a 316 Stainless steel Seat, Santoprene Balls and a PTFE / Santoprene Diaphragm capable of handling temperatures from 40° to 225° F. 3/32" Solids Handling with a 100 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
- Pump Catalog Price
Retail Price: $3,516.57How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PE05A-ASS-SST-BFR
ARO PE05A-ASS-SST-BFR 1/2" Metallic Expert Air Operated, Double Diaphragm Pump. 1/2" - 14 N.P.T.F. - 1 Connection Port with a 12.0 GPM Maximum Flow Rate and 0.039 Gallons displacement per cycle. Constructed with a 316 Stainless steel Seat, Santoprene Balls and a PTFE / Santoprene Diaphragm capable of handling temperatures from 40° to 225° F. 3/32" Solids Handling with a 100 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
| Ball Material | Santoprene |
| Build | Air Operated, Double Diaphragm |
| Connections / Discharge (Inches) | 1/2" - 14 N.P.T.F. - 1 |
| Connection Size | 1/2" |
| Connection Type | NPTF |
| Diaphragm | PTFE / Santoprene |
| Discharge Volume Per Cycle | 0.039 Gallons |
| Inlet Pressure (PSI) | 100 PSIG (6.9 BAR) |
| Material | Metallic |
| Maximum Flow (GPH) | 720 GPH |
| Maximum Working Pressure (PSIG) | 100 PSI |
| Solids (Inches) | 3/32" |
| Temperature Range | 40° to 225° F |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | 316 Stainless steel Seat |
1/2” Metallic Compact Information
| Features & Benefits |
|---|
| 1/2” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 12 (45.4) Displacement per cycle Gallons (Liters): 0.039 (.15) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1 Rp 1/2(1/2 - 14 BSP, parallel) Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7) PD05R-XAS-XXX-B 8.04 (3.65) PD05R-XSS-XXX-B 14.25 (6.46) Maximum dry suction lift ft (m): 15.0 (4.5) Sound Level: PSI Cycles / Min db(A) 70 60 71.1 |
Categories
Chemical Delivery / Transfer
2576 productsCommercial
3225 productsEffluent / Dosing Systems
2104 productsFiltration Systems
2104 productsIndustrial
3256 productsPaints & Dyes
2104 productsPharmaceutical / Chemical
2104 productsRecirculation
2110 productsTank Filling
2104 productsWastewater / Trash / Sewage
2104 productsWater Treatment
2104 products
Repair Parts for PE05A-ASS-SST-BFR
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637428 | Ships in 3-5 Days | $114.30 | ||
| 637427-ST | Ships in | $495.80 | ||
