PD05A-AAS-FTA-B

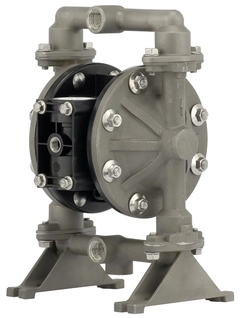

Image shown may not be actual product

PD05A-AAS-FTA-B

0 reviews

ARO PD05A-AAS-FTA-B 1/2" Metallic Compact Series AODD Diaphragm Pump. Aluminum Center Body, Aluminum Fluid Caps & Manifold, Stainless Steel Hardware. 13 GPM (49.2 LPM) Maximum Flow Rate, Aluminum Seats, PTFE Balls, Santoprene Diaphragm, 1/2 - 14 NPTF - 1 Connection. An Ingersoll Rand Business.

$1,249.99

Best Price Guarantee!
249PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: PD05A-AAS-FTA-B

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

PD05A-AAS-FTA-B

Air Inlet	1/4 - 18 NPTF - 1
CCN Number	15254758
Connection Size	1/2"
Connection Type	1/2 - 14 NPTF - 1
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.039 Gal (0.15 Lit)
Inlet Pressure (PSI)	100 psig (6.9 bar)
Liquid End Configuration	Aluminum Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	13 GPM (49.2 LPM)
Maximum Working Pressure (PSIG)	100 psi (6.9 bar)

Max Suction Lift	15 Feet (4.6m)
Metal Parts	Stainless Steel Hardware
Model Series	1/2” Metallic Compact Series
Quick Specs	DIAP PUMP,1/2IN METALLIC
Solids (Inches)	3/32" (2.4mm)
Temperature Range	40° to 225° F (4° to 107° C)
Type	Standard Pump
Valve Balls	PTFE
Valve / Seat / O-Ring	Aluminum

1/2” Metallic Compact Information

Features & Benefits
1/2” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 12 (45.4) Displacement per cycle Gallons (Liters): 0.039 (.15) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1 Rp 1/2(1/2 - 14 BSP, parallel) Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7) PD05R-XAS-XXX-B 8.04 (3.65) PD05R-XSS-XXX-B 14.25 (6.46) Maximum dry suction lift ft (m): 15.0 (4.5) Sound Level: PSI Cycles / Min db(A) 70 60 71.1

Features & Benefits

1/2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 12 (45.4)
Displacement per cycle Gallons (Liters): 0.039 (.15)
Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT
Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1
Rp 1/2(1/2 - 14 BSP, parallel)
Max. operating pressure psi (bar): 100 (6.9)
Suspended solids max. dia. in. (mm): 3/32” (2.4)
Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7)
PD05R-XAS-XXX-B 8.04 (3.65)
PD05R-XSS-XXX-B 14.25 (6.46)
Maximum dry suction lift ft (m): 15.0 (4.5)
Sound Level:
PSI Cycles / Min db(A)
70 60 71.1

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	ARO Pro Series Diaphragm Piston Pumps Brochure		View
	PD05P-XXX-XXX 1/2" Metallic Datasheet		View
	PD05A-AAS-FTA-B Datasheet		View
	PD05P-XXX-XXX 1/2" Metallic Manual		View
	PD05X-XXX-XXX-B 1/2" Metallic Manual		View
	PE05A-AAS-FAA-BD0 ARO Pump Repair Parts Exploded View, Fluid Section		View
	PE05A-AAS-FAA-BD0 ARO Pump Repair Parts Exploded View, Air Section		View
