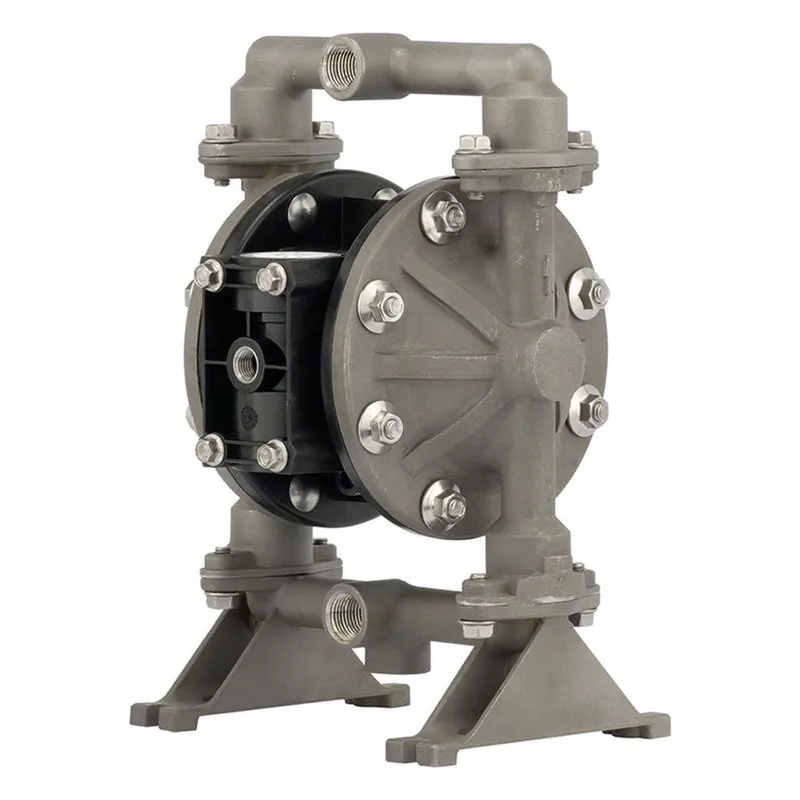

ARO 670274-A 1/2" Metallic AODD Diaphragm Pump.

$843.15

Best Price Guarantee!
168PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: 670274-A

Overview
Series Info
Reviews
Literature/Manuals

670274-A

ARO 670274-A 1/2" Metallic AODD Diaphragm Pump.

Connection Size	1/2"
Quick Specs	1/2" Metallic Pump

1/2” Metallic Compact Information

Features & Benefits
1/2” Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 12 (45.4) Displacement per cycle Gallons (Liters): 0.039 (.15) Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1 Rp 1/2(1/2 - 14 BSP, parallel) Max. operating pressure psi (bar): 100 (6.9) Suspended solids max. dia. in. (mm): 3/32” (2.4) Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7) PD05R-XAS-XXX-B 8.04 (3.65) PD05R-XSS-XXX-B 14.25 (6.46) Maximum dry suction lift ft (m): 15.0 (4.5) Sound Level: PSI Cycles / Min db(A) 70 60 71.1

Features & Benefits

1/2” Metallic Performance Specifications
Ratio: 1:1
Maximum GPM (LPM): 12 (45.4)
Displacement per cycle Gallons (Liters): 0.039 (.15)
Air Inlet (Female): 1/4 -18 P.T.F. SAE SHORT
Fluid Inlet/Outlet: 1/2 - 14 N.P.T.F. -1
Rp 1/2(1/2 - 14 BSP, parallel)
Max. operating pressure psi (bar): 100 (6.9)
Suspended solids max. dia. in. (mm): 3/32” (2.4)
Weight lbs (kg): PD05A-XAS-XXX-B 10.36 (4.7)
PD05R-XAS-XXX-B 8.04 (3.65)
PD05R-XSS-XXX-B 14.25 (6.46)
Maximum dry suction lift ft (m): 15.0 (4.5)
Sound Level:
PSI Cycles / Min db(A)
70 60 71.1
