PM15A-CSS-SAA-A02

Image shown may not be actual product

PM15A-CSS-SAA-A02

0 reviews

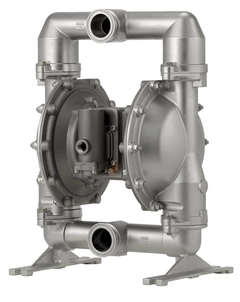

ARO PM15A-CSS-SAA-A02 PM Series 1 1/2" Ported Sanitary Transfer Diaphragm Pump, FDA Compliant. Aluminum Center Body, Stainless Steel Fluid Caps & Manifold, Stainless Steel Hardware. 123 GPM (465.6 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, Santoprene Balls & Diaphragm, 2" Sanitary Flange Connection. An Ingersoll Rand Business. ***Superceded by version with Medical Grade Santoprene, Model: PM15A-CSS-SMM-A02.

Call for Pricing

Best Price Guarantee!

Item: PM15A-CSS-SAA-A02 | Model #: PM15A-CSS-SMM-A02

Repair Parts Exploded View Diagram

Overview
Reviews
Literature/Manuals
Repair Parts

PM15A-CSS-SAA-A02

Air Inlet	1/2 - 14 NPT
CCN Number	15205081
Connection Size	1-1/2"
Connection Type	2" Sanitary Flange
Diaphragm	Santoprene
Discharge Volume Per Cycle	0.617 Gal (2.34 Lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Stainless Steel Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	123 GPM (465.6 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)
Metal Parts	Stainless Steel Hardware

Model Number	PM15A-CSS-SMM-A02
Model Series	1 1/2" Ported Sanitary Transfer
Options	No Option
Product Notes	Standard valve Block (No Solenoid)
Quick Specs	1 1/2 IN EXP AODP (PSEUDO)
Solids (Inches)	1/4" (6.4mm)
Temperature Range	-40° to 225° F (-40° to 107° C)
Type	FDA Compliant Sanitary Pump
Valve Balls	Santoprene
Valve / Seat / O-Ring	316 Stainless Steel

0 Reviews

Add a Review

You need to sign in to add a review.

Type	Title		Link
	Expert Series Diaphragm Pumps Brochure		View
	PM15X 1 1/2" Ported Sanitary Transfer Datasheet		View
	PM15A-CSS-SAA-A02 Datasheet		View
	PM15X 1 1/2" Ported Sanitary Transfer Manual		View
	PM15X 1 1/2" Sanitary Manual		View
	PM15A-CSS-AAA-A02 ARO Pump Repair Parts Exploded View, Fluid Section		View
	PM15A-CSS-AAA-A02 ARO Pump Repair Parts Exploded View, Air Section		View
