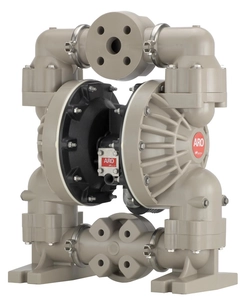

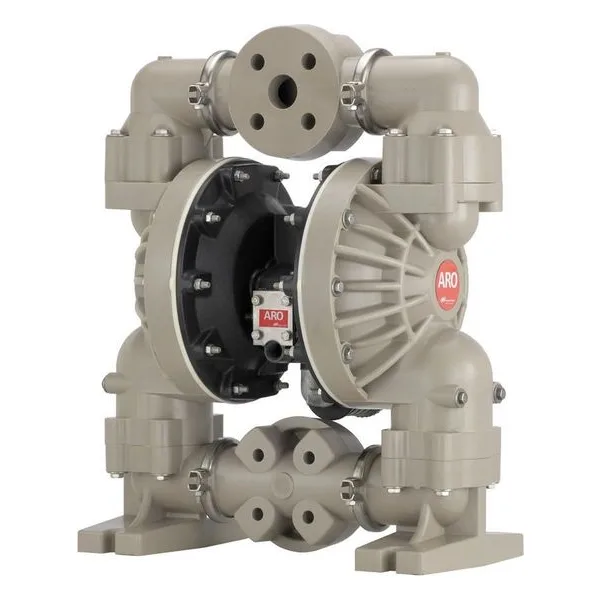

ARO PRO Series 1 1/2" Ported Non Metallic Diaphragm Pump, 100 GPM (378.5 LPM) flow. Robust construction with thick walled injection, molded fluid casings and cast iron or aluminum center sections to withstand tough industrial applications. Efficiency - Motor design delivers optimum air efficiency. Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation. Versatility - Multiple porting options for your application needs - Available in. Flanged, Threaded, or 3 piece Manifold configurations. Environmentally Sound - Bolted construction for leak-free fluid handling. Serviceability - Easy access to ball checks and fluid caps for maintenance and repairs. Pump Casing Materials: Aluminum, Cast Iron & Stainless Steel. Pump Casing Materials: Polypropylene & PVDF (Kynar). Diaphragm Materials: Viton, PTFE w/ Santoprene backer, Hytrel, Santoprene, Nitrile, Neoprene & E.P.R.
Search Results
(16 results)
6661T3-344-C
ARO
ARO 6661T3-344-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661U3-311-C
ARO
ARO 6661U3-311-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Cast Iron Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Neoprene Balls, Neoprene Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T4-433-C
ARO
ARO 6661T4-433-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Kynar PVDF Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Kynar PVDF Seats, Viton Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T4-4EB-C
ARO
ARO 6661T4-4EB-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Kynar PVDF Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Kynar PVDF Seats, Santoprene Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T3-311-C
ARO
ARO 6661T3-311-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Neoprene Balls, Neoprene Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T3-322-C
ARO
ARO 6661T3-322-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Nitrile Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T3-389-C
ARO
ARO 6661T3-389-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Polyurethane Balls, Hytrel Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T3-3EB-C
ARO
ARO 6661T3-3EB-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Santoprene Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661T4-444-C
ARO
ARO 6661T4-444-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Kynar PVDF Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Kynar PVDF Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661U3-2EB-C
ARO
ARO 6661U3-2EB-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Cast Iron Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, Santoprene Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661U3-344-C
ARO
ARO 6661U3-344-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Cast Iron Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, PTFE Balls, PTFE / Santoprene Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
6661U3-3EB-C
ARO
ARO 6661U3-3EB-C 1-1/2" Non Metallic Pro Series AODD Diaphragm Pump. Cast Iron Center Body, Polypropylene Fluid Caps & Manifold.100 GPM (378.5 LPM) Maximum Flow Rate, Polypropylene Seats, Santoprene Balls & Diaphragm, 1-1/2" ANSI Flange Connection. An Ingersoll Rand Business.
