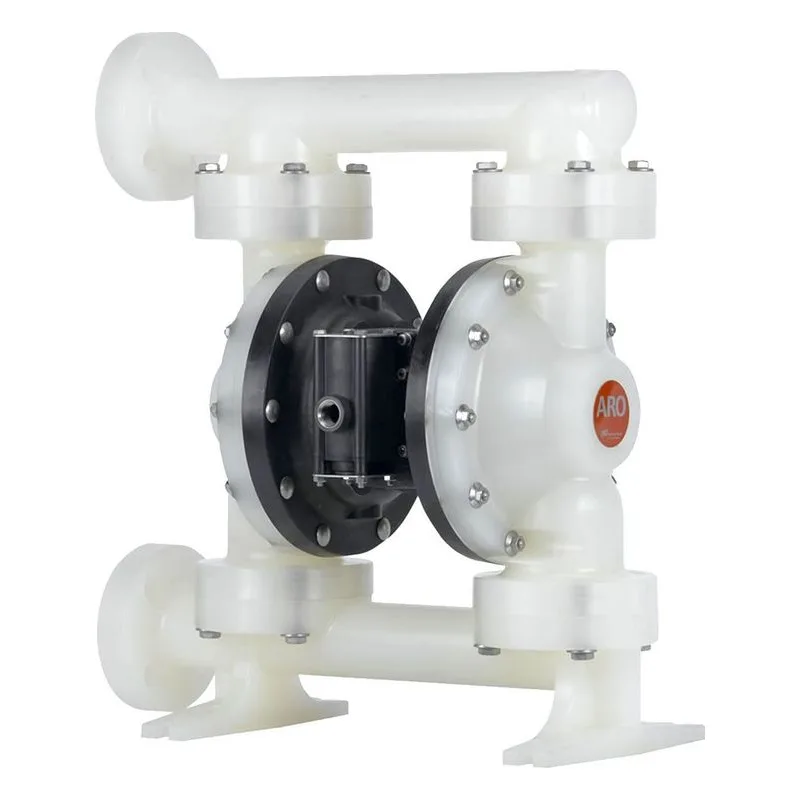

Image shown may not be actual product
PE15P-FKS-KTT-ADF
ARO PE15P-FKS-KTT-ADF 1-1/2" Non-Metallic Expert Air Operated, Double Diaphragm Pump. 1-1/2” ANSI / Din Flange / End Connection Port with a 123.1 GPM Maximum Flow Rate and 0.617 Gallons displacement per cycle. Constructed with a Kynar PVDF Seat, PTFE Balls and a Santoprene, PTFE Diaphragm capable of handling temperatures from 40° to 225° F. 1/4" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
- Pump Catalog Price
Retail Price: $8,401.21How come you don't show price?Due to our price being lower, you have to add the product to your cart to see your discounted price.
The manufacturer of this product has instituted a Minimum Advertised Price or "MAP" Pricing policy. This dictates the price we are allowed to advertise.
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Series Info
- Reviews
- Literature/Manuals
- Repair Parts
PE15P-FKS-KTT-ADF
ARO PE15P-FKS-KTT-ADF 1-1/2" Non-Metallic Expert Air Operated, Double Diaphragm Pump. 1-1/2” ANSI / Din Flange / End Connection Port with a 123.1 GPM Maximum Flow Rate and 0.617 Gallons displacement per cycle. Constructed with a Kynar PVDF Seat, PTFE Balls and a Santoprene, PTFE Diaphragm capable of handling temperatures from 40° to 225° F. 1/4" Solids Handling with a 120 PSI Outlet Pressure at a 1:1 Ratio. An Ingersoll Rand Product.
| Ball Material | PTFE |
| Build | Air Operated, Double Diaphragm |
| Connections / Discharge (Inches) | 1-1/2” ANSI / Din Flange / End |
| Connection Size | 1-1/2" |
| Connection Type | ANSI / DIN Flange / End |
| Diaphragm | Santoprene, PTFE |
| Discharge Volume Per Cycle | 0.617 Gallons |
| Inlet Pressure (PSI) | 120 PSIG (8.3 BAR) |
| Material | Non-Metallic |
| Maximum Flow (GPH) | 7386 GPH |
| Maximum Working Pressure (PSIG) | 120 PSI |
| Product Notes | Solenoid 24 VDC, 48 VAC and 44 VAC, End of Stroke feedback + Leak Detection |
| Solids (Inches) | 1/4" |
| Temperature Range | 40° to 225° F |
| Turn Down Ratio | 1:1 |
| Valve / Seat / O-Ring | Kynar PVDF Seat |
1 1/2” Non-Metallic Expert Information
| Features & Benefits |
|---|
| 1-1/2” Non-Metallic Performance Specifications Ratio: 1:1 Maximum GPM (LPM): 123 (465) Displacement per cycle Gallons (Liters): 0.617 (2.34) Air Inlet (Female): 1/2 - 14 N.P.T. Fluid Inlet: 1-1/2” A.N.S.I./DIN flange (side or center) Fluid Outlet: 1-1/2” A.N.S.I./DIN flange (side or center) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in. (mm): 1/4” (6.4) Weight lbs (kg): Polypropylene, Side Ported 42.6 (19.3) PVDF, Side Ported 63.9 (29) Polypropylene, Center Ported 42.3 (19.2) PVDF, Center Ported 55.9 (25.3) Maximum dry suction lift ft (m) : 14 (4.2) Sound Level: PSI Cycles / Min db(A) 70 60 81.0 |
Categories
Chemical Delivery / Transfer
2576 productsCommercial
3225 productsEffluent / Dosing Systems
2104 productsFiltration Systems
2104 productsIndustrial
3256 productsPaints & Dyes
2104 productsPharmaceutical / Chemical
2104 productsRecirculation
2110 productsTank Filling
2104 productsWastewater / Trash / Sewage
2104 productsWater Treatment
2104 products
| Type | Title | Link | |
|---|---|---|---|
Expert Series Diaphragm Pumps Brochure | View | ||
Electronic Interface Brochure | View | ||
Expert and Compact Air Operated Diaphragm Pumps Brochure | View | ||
PD15P XXS PE15P XXS 1 1/2" Non Metallic Datasheet | View | ||
PE15P-XXS-XXX-AOS 1 1/2" Non Metallic Datasheet | View | ||
PD15P PE15P 1 1/2" Non Metallic Manual | View | ||
PE15P-X-X-A0S 1 1/2" Non Metallic Manual | View | ||
ARO PX10P 1.5 Inch Non-Metallic Diaphragm Pump IOM Manual | View | ||
PE10-15-20-30X Interface Pump IOM Manual | View | ||
Repair Parts for PE15P-FKS-KTT-ADF
| Product | qty. | shipping | price | ||
|---|---|---|---|---|---|
 | 637390-2 | Ships in | $339.20 | ||
| 637421 | Ships in 1 Week | $149.80 | ||
| 637309-KTT | Ships in | Call for pricing | ||
| 637309-TT | Ships in | $1,326.30 | ||
