666172-222-C

0 reviews

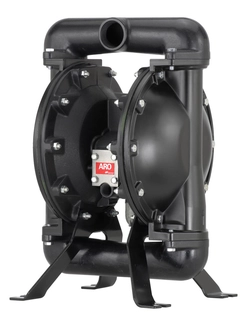

ARO 666172-222-C 1-1/2" Metallic Pro Series AODD Diaphragm Pump. Aluminum Center Body, Cast Iron Fluid Caps & Manifold, Stainless Steel Hardware. 90 GPM (340.7 LPM) Maximum Flow Rate, 316 Stainless Steel Seats, Nitrile Balls & Diaphragm, Rp 1-1/2 (1-1/2 - 11 BSP parallel) Connection. An Ingersoll Rand Business.

$1,719.88

Best Price Guarantee!
343PumpPoints

Item: 666172-222-C

Repair Parts Exploded View Diagram

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

666172-222-C

Air Inlet	1/2 - 14 NPTF - 1
CCN Number	81676421
Connection Size	1-1/2"
Connection Type	Rp 1-1/2 (1-1/2 - 11 BSP parallel)
Diaphragm	Nitrile
Discharge Volume Per Cycle	0.64 Gal (2.42 lit)
Inlet Pressure (PSI)	120 psig (8.3 bar)
Liquid End Configuration	Cast Iron Fluid Caps & Manifold
Material	Aluminum Center Body
Maximum Flow (GPM)	90 GPM (340.7 LPM)
Maximum Working Pressure (PSIG)	120 psi (8.3 bar)

Max Suction Lift	19 Feet (5.7m)
Metal Parts	Stainless Steel Hardware
Model Series	1-1/2” Metallic Pro Series
Quick Specs	DIAPHRAGM PUMP
Solids (Inches)	1/4" (6.4mm)
Temperature Range	10° to 180° F (-12° to 82° C)
Type	Standard Pump
Valve Balls	Nitrile
Valve / Seat / O-Ring	316 Stainless Steel

1 1/2” Metallic Pro Information

Features & Benefits
1-1/2” Metallic Performance Specifications Ratio: 1:1 Maximum Flow: 90-g.p.m. (340.7-l.p.m.) Displacement per cycle: 0.64-Gallons (2.42-Liters) Air Inlet: (Female) 1/2 - 14 N.P.T.F. - 1 Fluid Inlet: 1-1/2 11-1/2 N.P.T.F. - 1 Rp 1-1/2 (1-1/2 - 11 BSP parallel) Fluid Outlet: 1-1/2 11-1/2 N.P.T.F. - 1 Rp 1-1/2 (1-1/2 - 11 BSP parallel) Max. operating pressure: 120-psi (8.3-bar) Suspended solids max. dia.: 1/4-inch (6.4-mm) Weight: lbs (kg) 666150-X-C (aluminum) 51.5 (23.4) 666151-X-C (stainless steel) 84.5 (38.3) 666152-X-C (cast iron) 79.5 (36.1) Note: Add 23-lbs (10.4-kg) for cast iron air motor section Maximum dry suction lift: ft (m) 19 (5.8)

Features & Benefits

1-1/2” Metallic Performance Specifications
Ratio: 1:1
Maximum Flow: 90-g.p.m. (340.7-l.p.m.)
Displacement per cycle: 0.64-Gallons (2.42-Liters)
Air Inlet: (Female) 1/2 - 14 N.P.T.F. - 1
Fluid Inlet: 1-1/2 11-1/2 N.P.T.F. - 1
Rp 1-1/2 (1-1/2 - 11 BSP parallel)
Fluid Outlet: 1-1/2 11-1/2 N.P.T.F. - 1
Rp 1-1/2 (1-1/2 - 11 BSP parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids max. dia.: 1/4-inch (6.4-mm)
Weight: lbs (kg)
666150-X-C (aluminum) 51.5 (23.4)
666151-X-C (stainless steel) 84.5 (38.3)
666152-X-C (cast iron) 79.5 (36.1)
Note: Add 23-lbs (10.4-kg) for cast iron air motor section
Maximum dry suction lift: ft (m) 19 (5.8)
