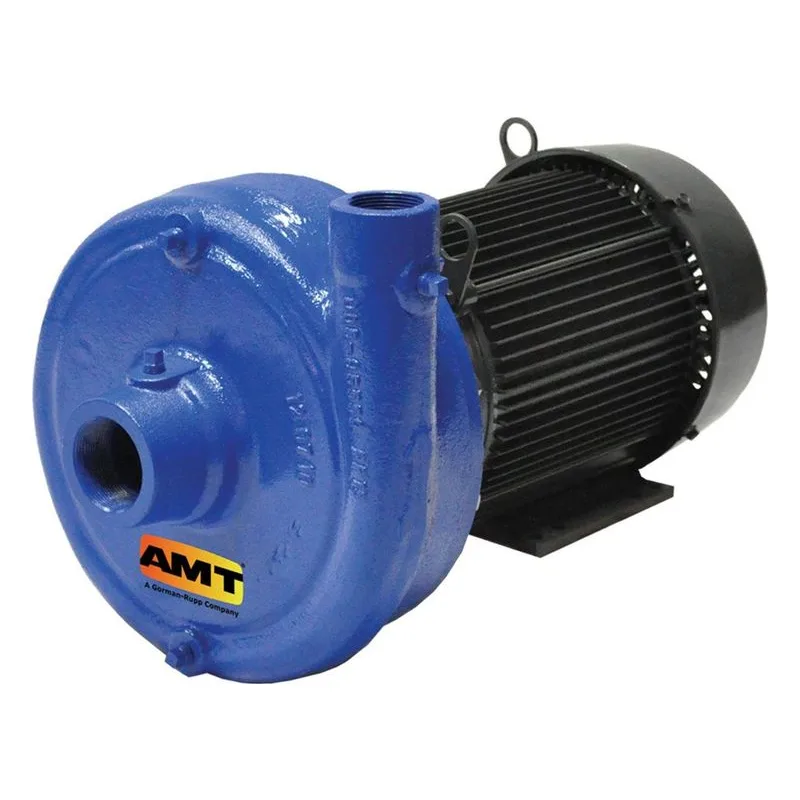

Image shown may not be actual product
4201-95
AMT Pumps 4201-95 Cast Iron Straight Centrifugal Pump. 5 HP, 1750 RPM, 208-230/460 Volt, 60 Hz, 3Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Electric Motor. Viton/Sil/Car Seal, 2" FNPT Suction & 1-1/2" FNPT Discharge, Front Drain Plugs; 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring, Seal Flush/Air Relief Valve Included. Replaces Model: 420A-95.
$2,515.96
- Best Price Guarantee!
- 502PumpPoints
Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.
- Overview
- Reviews
- Literature/Manuals
4201-95
AMT Pumps 4201-95 Cast Iron Straight Centrifugal Pump. 5 HP, 1750 RPM, 208-230/460 Volt, 60 Hz, 3Ph (Three Phase), TEFC - Totally Enclosed Fan Cooled Electric Motor. Viton/Sil/Car Seal, 2" FNPT Suction & 1-1/2" FNPT Discharge, Front Drain Plugs; 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring, Seal Flush/Air Relief Valve Included. Replaces Model: 420A-95.
| Casing Wear Ring Material | Bronze |
| Category Name | 1750 RPM Straight Centrifugal Pumps |
| Discharge NPT (Inches) | 1-1/2" FNPT |
| HP | 5 |
| Hz | 60 |
| Impeller Material | Silicon Bronze |
| Includes | Seal Flush/Air Relief Valve |
| Material | Cast Iron |
| Maximum Working Pressure (PSIG) | 175 psi |
| Motor Enclosure Type | TEFC - Totally Enclosed Fan Cooled |
| Motor Frame Size | 182JM |
| Part Number | 420A-95 |
| Phase | 3Ph (Three Phase) |
| Product Notes | Front Drain Plugs; 1/4" NPT Gauge Taps on Suction & Discharge Ports For System Monitoring |
| Shaft Seal Material | Viton/Sil/Car |
| Shaft Sleeve Material | Bronze |
| Solids (Inches) | 1/4" |
| Speed (RPM) | 1750 |
| Suction NPT (Inches) | 2" FNPT |
| Voltage | 208-230/460 |
