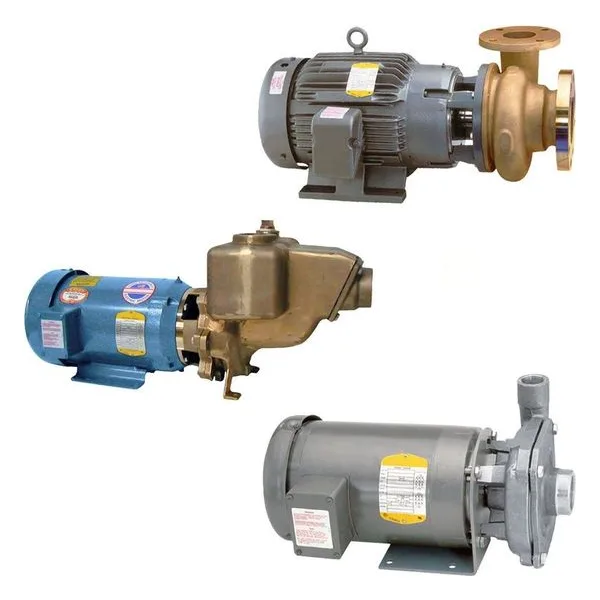

Z / K / R Series Marine & Industrial Pumps

AMPCO Z / K / R Series Marine Industrial Centrifugal Pumps

K, Z, R Series Pump Features:

• Heavy-wall construction with tight manufacturing tolerances
• High-efficiency design with fully-shrouded, dynamically-balanced impellers
• Close-coupled on JM, 56J, IEC frame motors
• The standard seal is a T21 single mechanical with ceramic seat,carbon rotating element, Buna elastomers and 304SS metallics. Various other seal options are available.
• ABS (American Bureau of Shipping) type approval available
• Capacities from 5-3000 GPM, 1-680 m 3 /h
• Bearing frame mounting available

K Series - Nickel Aluminum Bronze, 316 Stainless Steel

• Pressure up to 150 psi, 10 bar
• Temperatures up to 225°F, 105°C
• Multiple seal options • Enclosed impellers
• Close-coupled to NEMA motor

Z Series - Nickel Aluminum Bronze, 316 Stainless Steel, Duplex 2205

• Pressure up to 175 psi, 12 bar
• Temperatures up to 250°F, 120°C
• Multiple seal options • Internal Seal flush
• Replaceable wear rings
• Close-coupled to NEMA or IEC motor

R Series - Nickel Aluminum Bronze, 316 Stainless Steel

• Self-priming up to 25 ft., 7.6m
• Pressure up to 175 psi, 12 bar
• Temperatures up to 225°F, 105°C
• Multiple seal options
• Enclosed impellers
• Close-coupled to NEMA or IEC motor

K, Z, R Series Applications:

• Commercial saltwater applications
• Reverse osmosis
• On-board vessels
• Engine cooling, condenser cooling, refrigeration and fire pumps
• Effluent waste water, brackish water
