S101-BA3-SE3E-B70

Image shown may not be actual product

S101-BA3-SE3E-B70

0 reviews

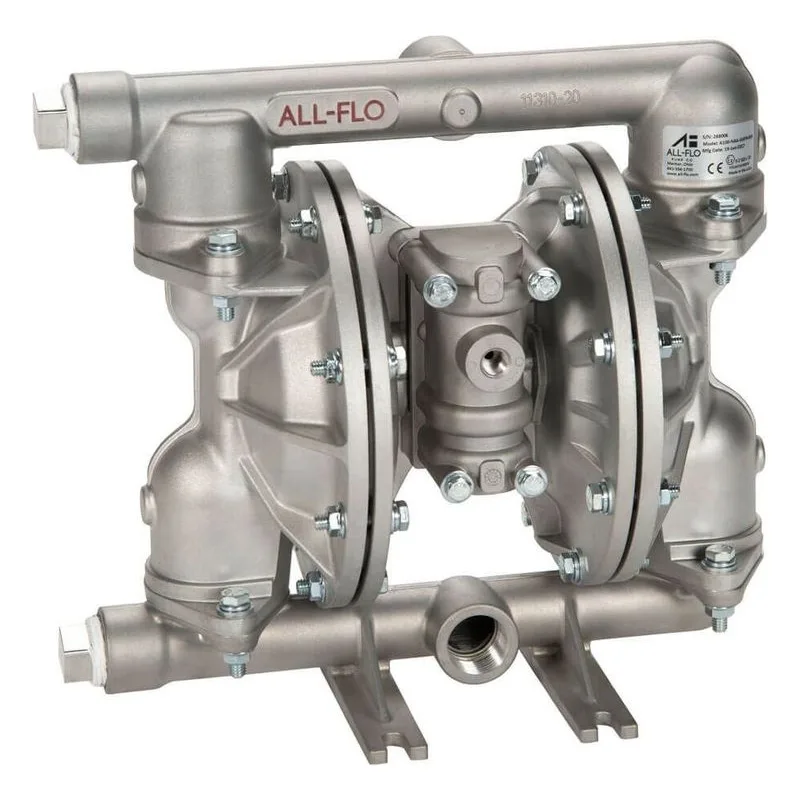

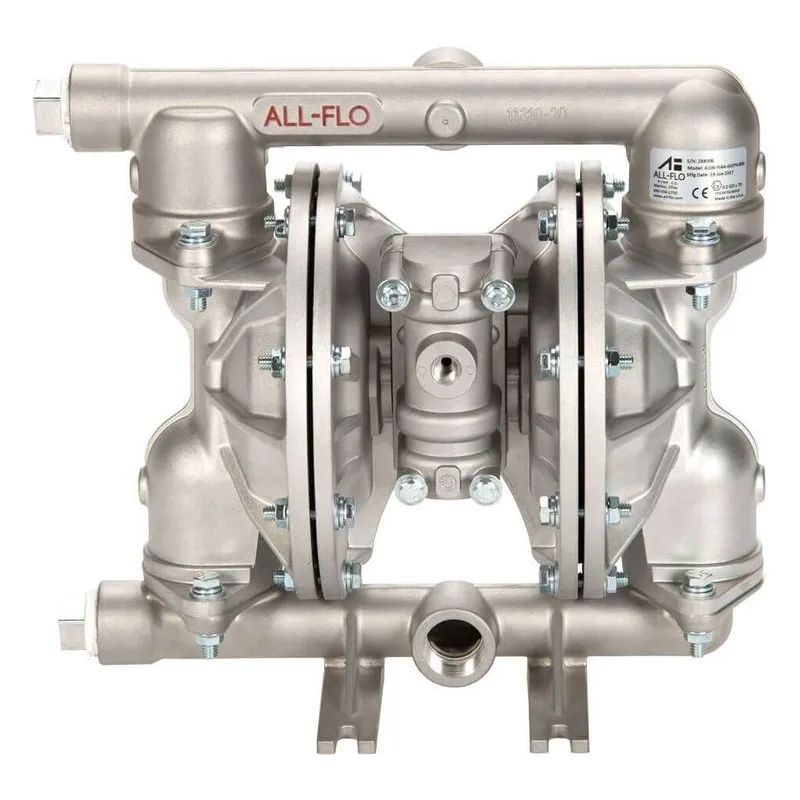

All-Pro S101-BA3-SE3E-B70 S101 Specialty Diaphragm Pumps. 46 GPM Maximum Flow Rate with a Max Pressure of120 PSI. Capable of handling 3/4" Diameter Solids with a 1" Liquid Inlet and a 1" Liquid Discharge and 18 ft-H2O (5.5 m-H2O) Dry, 27.5 ft-H2O (8.4 m-H2O) Wet Maximum Lift. Build Materials consist of a Aluminum Air Section, Santoprene Diaphragm, EPDM Max-Pass Valve/Ball and EPFM O-Rings.

$2,513.30

Best Price Guarantee!
502PumpPoints

Ships within 1 business day (in-stock items). Delivery typically 1–5 business days.

Item: S101-BA3-SE3E-B70

Overview
Series Info
Reviews
Literature/Manuals
Repair Parts

S101-BA3-SE3E-B70

Air Inlet	1/2" FNPT
Connections / Discharge (Inches)	1"
Connection Type	BSPT
Diaphragm	Santoprene
Fluid Port	Standard (Suction Center Front/Discharge Center Rear)
Inlet	1"
Material	Stainless Steel
Maximum Flow (GPM)	46 GPM

Maximum Pressure (PSI)	120 PSI
Max Suction Lift	18 ft-H2O (5.5 m-H2O) Dry, 27.5 ft-H2O (8.4 m-H2O) Wet
Product Notes	Stainless Steel Hardware, Plastic Muffler
Size	S101
Solids (Inches)	3/4"
Valve Balls	EPDM Max-Pass
Valve / Seat / O-Ring	Stainless Steel Valve Seat

Specialty Diaphragm Pumps Information

MAX‑PASS® S Series — Solids‑Handling Architecture

The MAX‑PASS® S Series incorporates a high‑flow, obstruction‑resistant internal geometry designed to move suspended solids without clogging or performance degradation. Its flow‑through design reduces shear, minimizes pulsation, and maintains consistent volumetric output across varying viscosities.

Key Technical Characteristics

Flow‑through solids‑handling chamber for reduced blockage
Optimized check‑valve geometry for improved particulate passage
Available in plastic or metal wetted materials
Suitable for abrasive, slurry, and high‑particulate applications

Available Models

Plastic Pumps

S038 (3/8") — Compact footprint for low‑flow dosing and transfer
S050 (1/2") — General‑purpose solids‑handling performance
S100 (1") — High‑flow configuration for demanding process lines

Metal Pumps

S050 (1/2") — Enhanced durability for aggressive or high‑pressure environments
S100 (1") — Industrial‑grade construction for continuous‑duty operation

Legacy Plastic Pumps — Proven Chemical Compatibility

All‑Flo’s legacy plastic pumps provide stable performance in applications requiring corrosion resistance, low weight, and compatibility with a broad range of process chemicals. These models are widely used in chemical dosing, wastewater treatment, and general fluid transfer.
